This truly is a custom built, off grid, RV/”bug out” vehicle. This vehicle was designed to go off grid and stay off grid, but still keeping all those little things we love (like heated floors).
Check out the VIDEO on some of the van’s features!
***Quick Facts & Specs***
-2016 Mercedes Sprinter 3500 extended 4×4

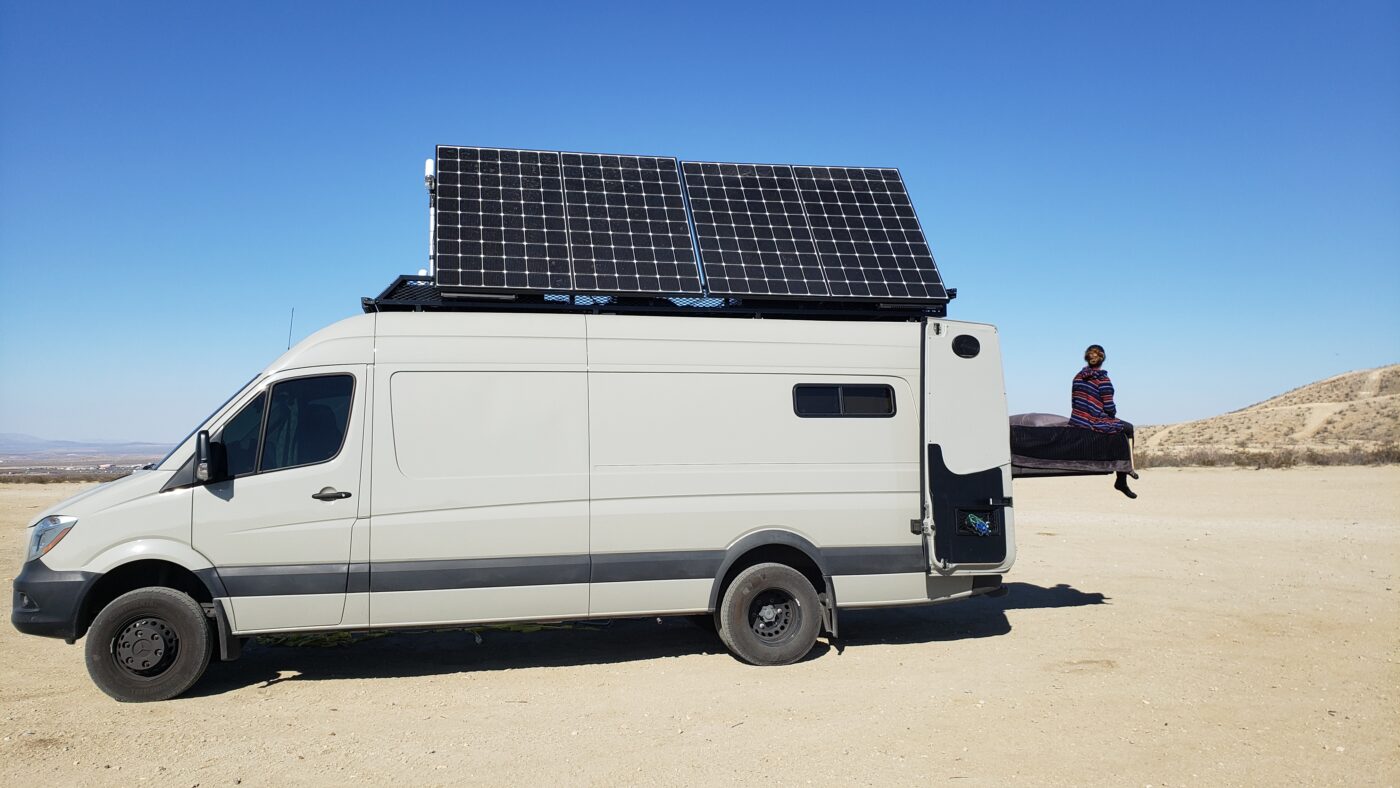

-1,340 watts of solar.
– Solar panels tilt with 12volt actuators controlled by a button on the control panel or by remote FOB.
– 900ah of Victron lithium batteries.
-3000 watt Victron inverter.
-Second alternator designated for the lithium batteries.
-Shore power RV & home connections.
-40 gallon fresh water tank.
-gray tank (no black).
-composting toilet with urine being diverted into the gray tank.
-“Y” dumping valve. One side of the standard pull and dump and the other side has an eclectic valve. This makes dumping the gray VERY easy! Simply park over a safe dumping space (just about anywhere since its only gray water) and flip a switch for it to open he valve. All this is done from inside of the vehicle.
– Connections to refill by hose/RV hookups or gravity fed.
– Built in 3 stage water purification system.
– Hot water is heated by electric and/or the Espar heater (uses tiny bit of diesel from vehicle fuel tank)
-Spray hose quick disconnects by sliding door and back door
Heating and Cooling:
-Vehicle it temperature controlled remotely on your phone from anywhere in the world.
-Espar D4 heater.
-2 Maxxair Fans.
-Bi-folding Twin (modified) Murphy bed
-Queen bed with remote for raising/lowering head and feet.
-Queen bed also rolls out the back door so you can sleep under the stars at night (also works great when you back into a drive-in movie)
-Both sides of bed have their own Charging area with: 110v, 12 volt, and USB
– Shower is all aluminum, with welded seams to prevent leaking.
– Dual induction cooktop (flush mounted for extra prep space)

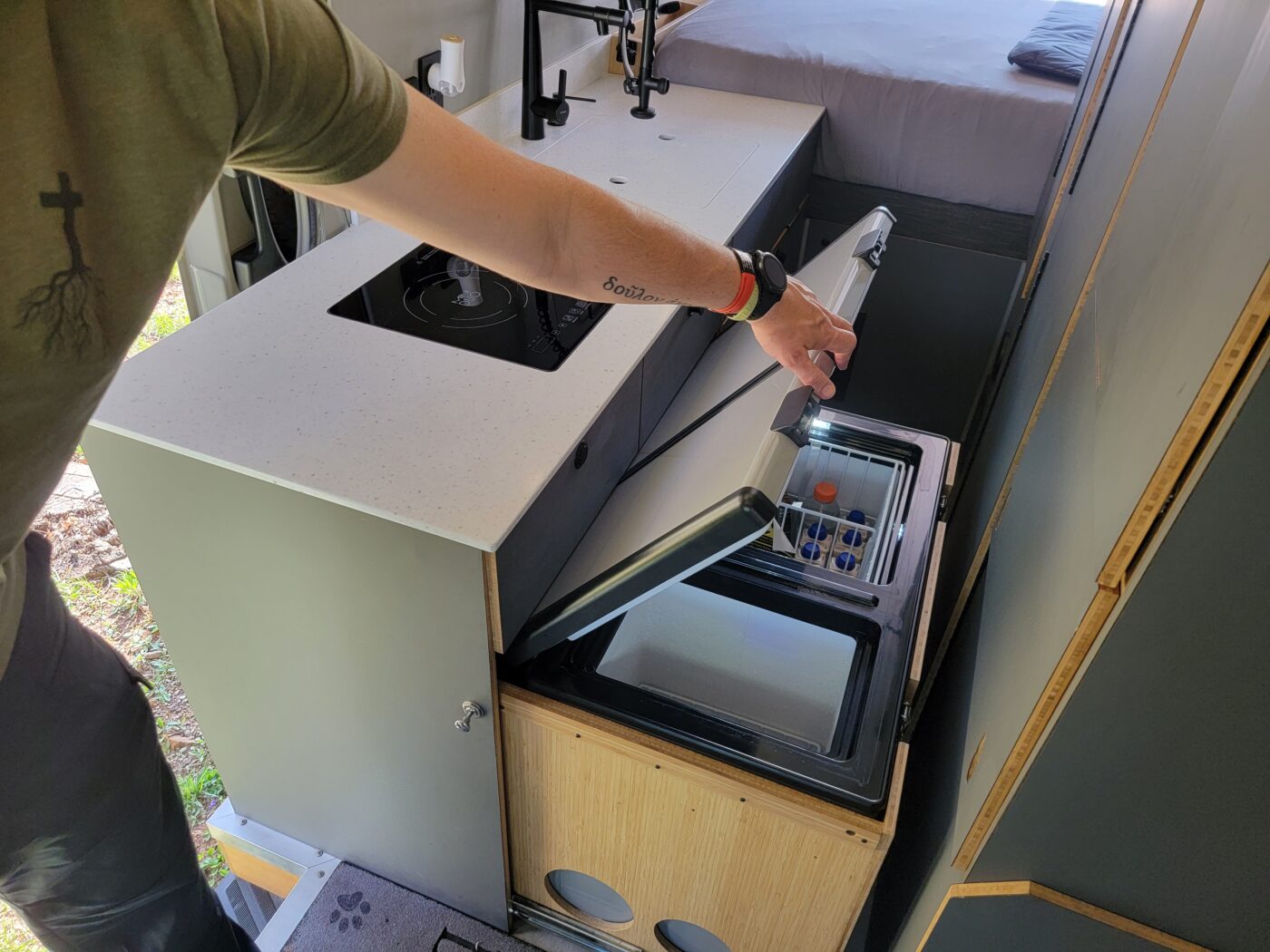

-Whynter FM-901DZ 90 Quart Dual Zone Portable Fridge/Freezer
-Under mount deep sink with cover/cutting board
-Kenwood head unit for “home”.
-Surround sound speakers.
-Sub and amp.
-Outdoor speakers mounted to roof rack.
-Dimmer lights in ceiling.
-Dimmer reading lights under cabinets next to bed.
– Red (and white) light in bathroom (for at night)
– Red light on flooring.
– Lights under vehicle.
– Awning lights
– Light bar on front, back, and 2 on each side of vehicle. (Controlled at the drivers seat.)
-Emergency flashers on all sides of the van (mounted on roof rack)
– All welded aluminum.
– Powder coated.
– Tons of room for storage.
-All cabinetry is made out of bamboo (stronger, lighter, absorbs less moisture than traditional wood).
-Onboard air compressor with quick disconnects by the side and back doors.
-Dometic electic awning (no supports needed, just push a button).
-2 layers of insulation in walls.
-Hotspot/wifi network built in.
-Surround sound speakers with sub and amp.

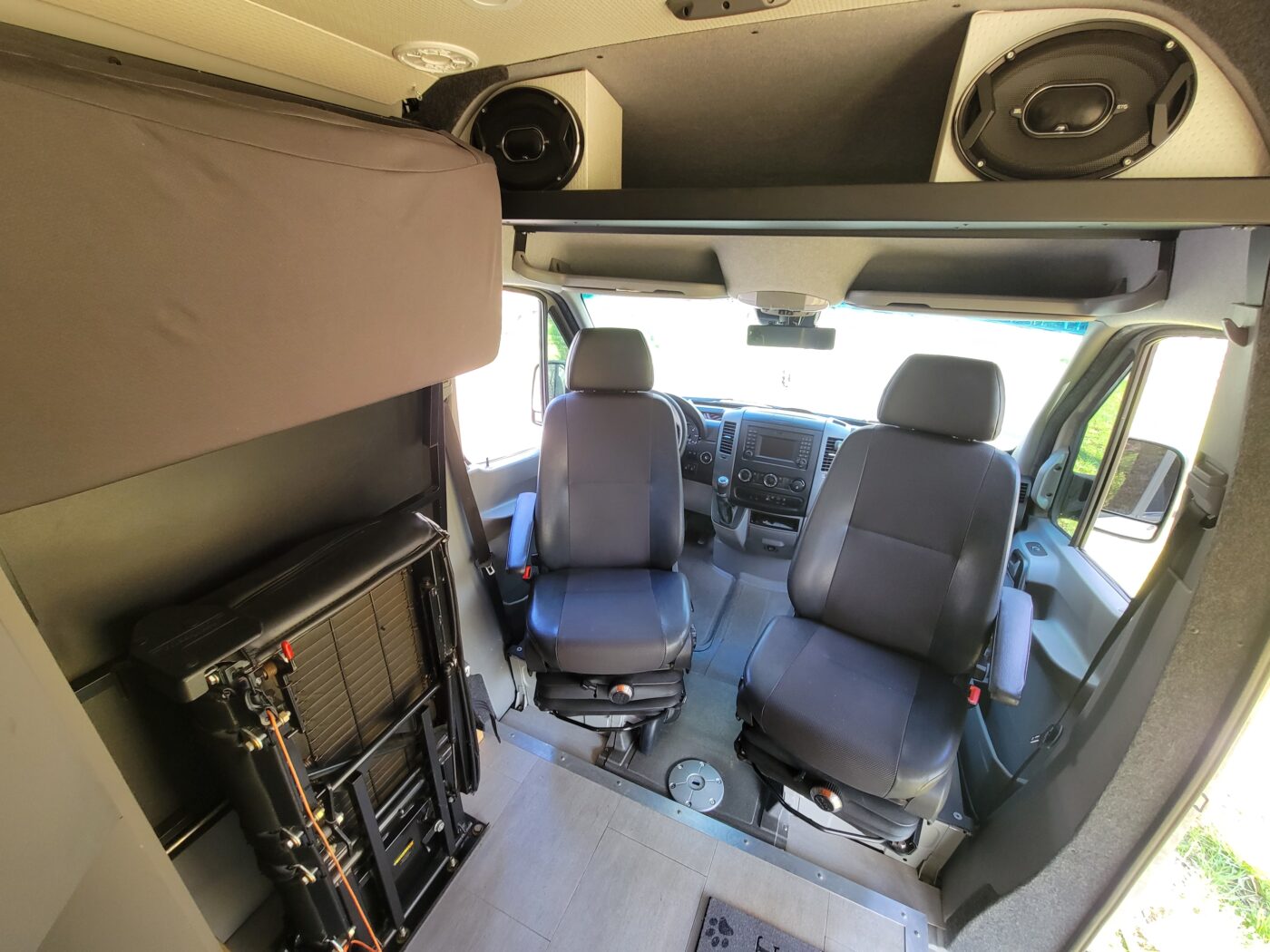

-Swivel driver and passenger seats.
-Table setup between seats.
-Magnetic insulated window coverings for all windows. This makes it completely “black out”.
I spent over $220k building this out and it’s currently insured for that. It does have some wear but still in great shape! This thing is “turn key” for full time RV life!
Title in hand. This is the last thing left over from my divorce and I’m just looking to get rid of it.
