4 Season Campervan
Seats 2 – Sleeps 2

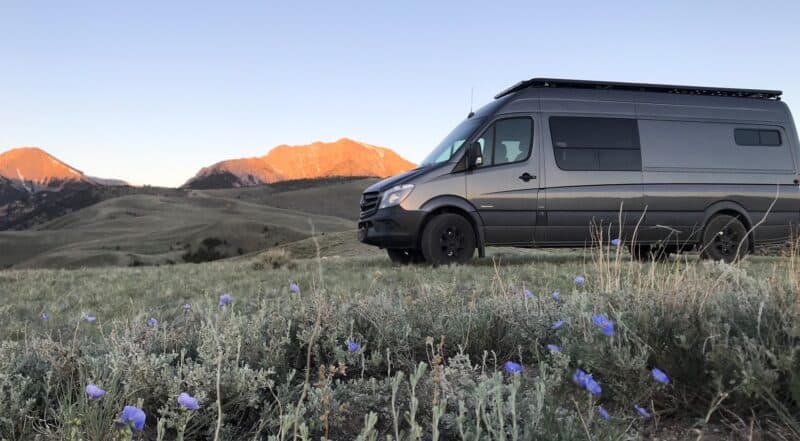

2016 Mercedes Sprinter 170
2500- 2WD
Clean Title

2.1L Diesel Engine
Regular maintenance
176,000 miles
Mercedes diesel engines are know for going well over 300,000 miles

New tires – winter 2024
New upgraded alternator – 250 amp – winter 2024
New front brakes March 2025
Rear brakes have more than 60% remaining based on Midas inspection.
Oil changed April 2025
Diesel fuel filter changed April 2025

Cab
Fully electric and heated front seats from a 2021 sprinter.
Swivel mount on passenger seat.
Fold down table between front seats.
JVC touch screen stereo wired to house batteries for continuous use while parked.
2x 6.5″ Skar Audio EVL-65 sub-woofers in sealed enclosure under sofa facing drivers seat.
200w Kicker sub amp in electrical cabinet.
Gray water dump valve switches on driver’s seat base.
Water heater valve and pump switches on driver’s seat base. Make hot water while you drive.

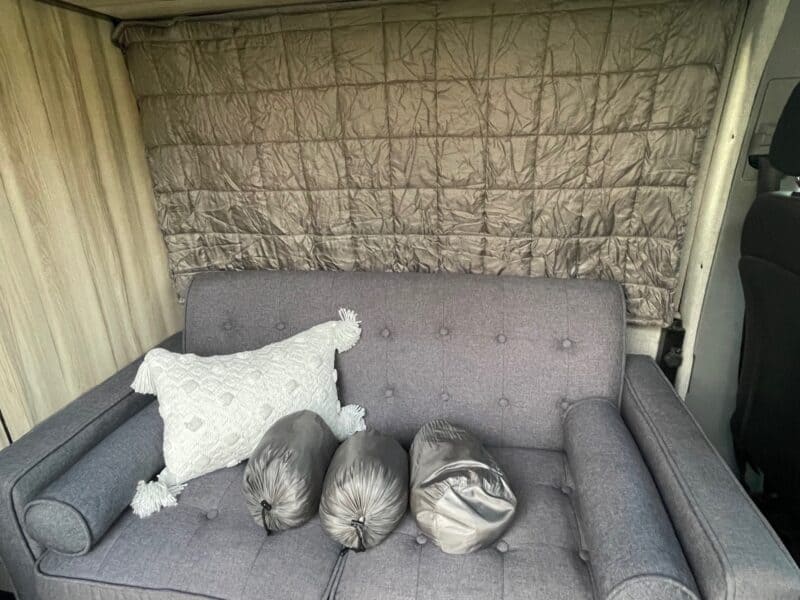

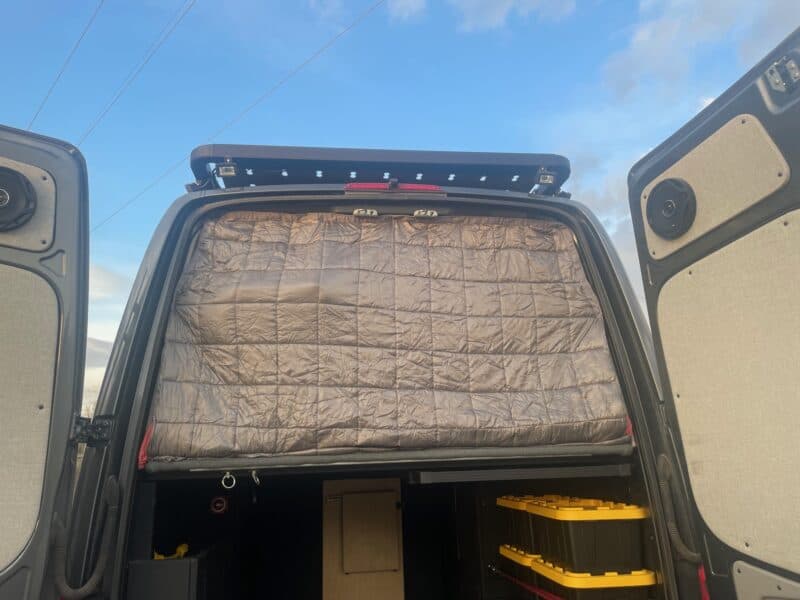

Insulated window covers included.

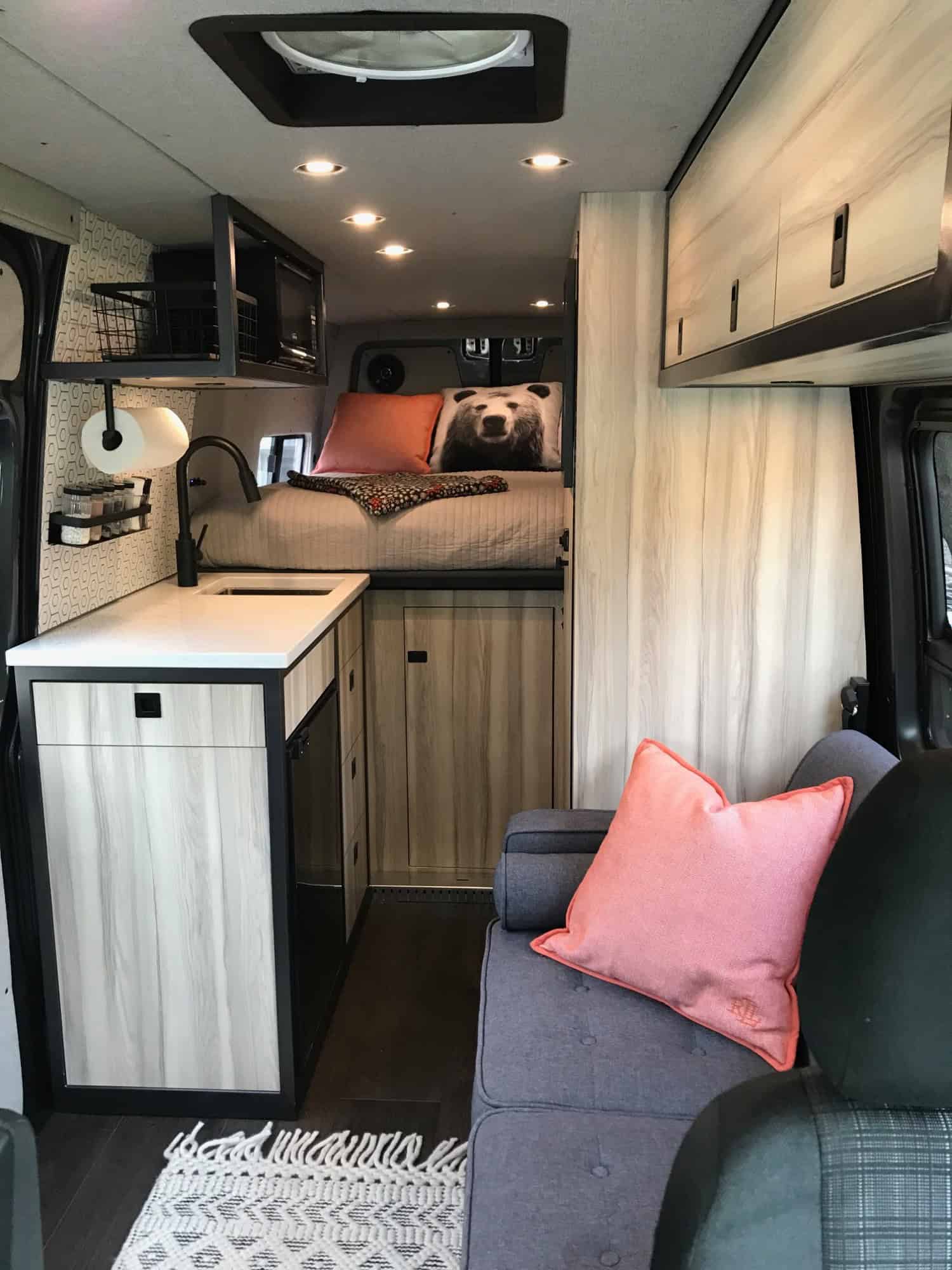

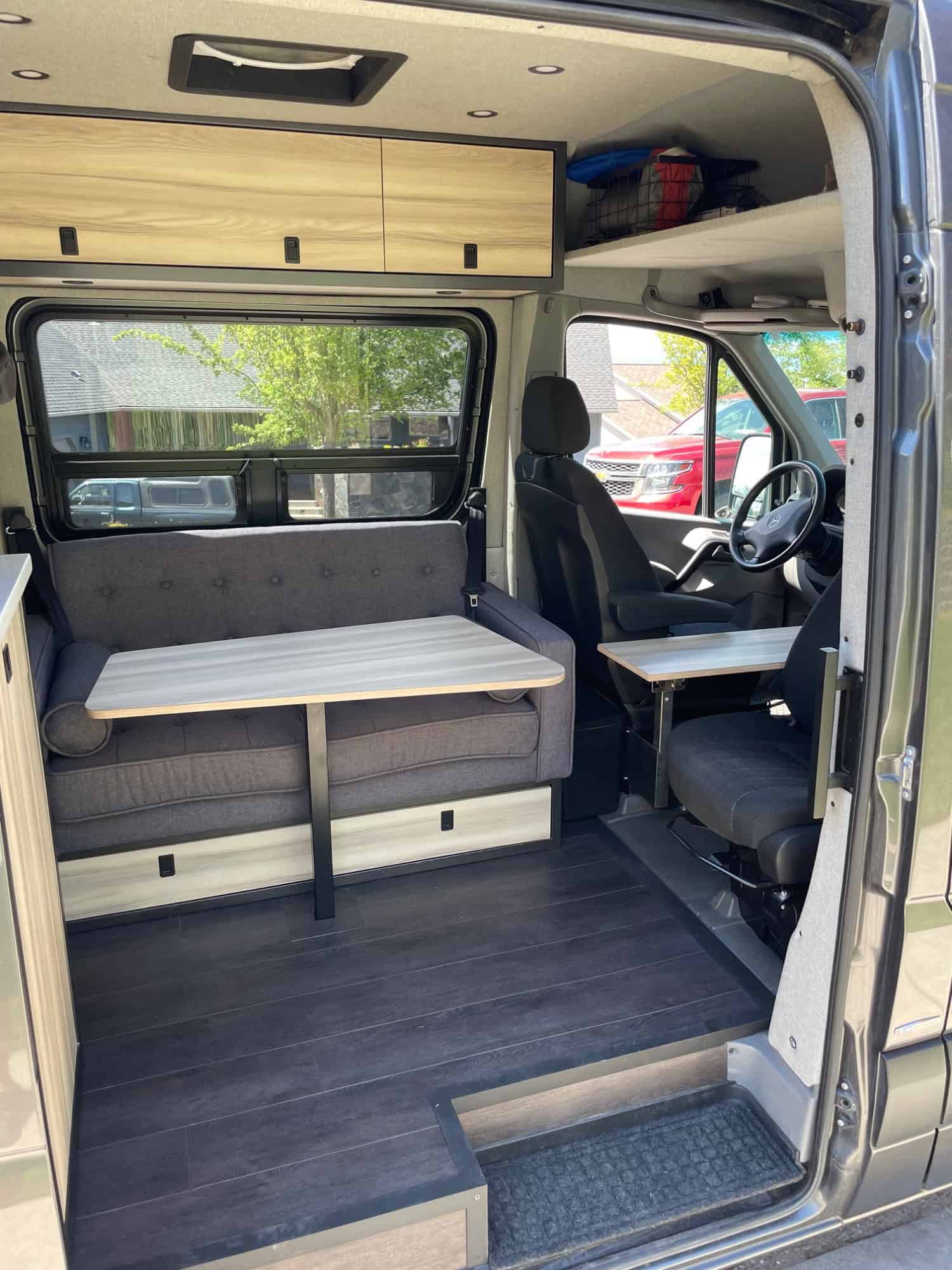

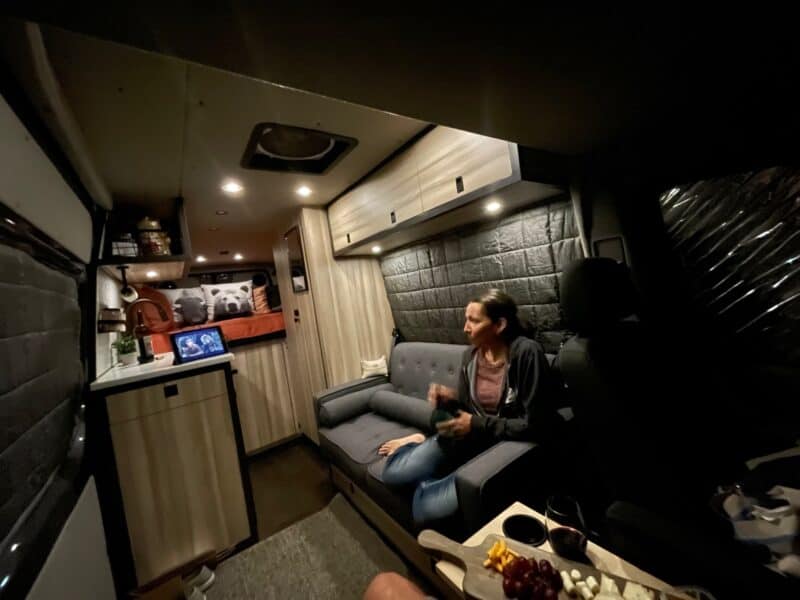

Living Area
Roomy

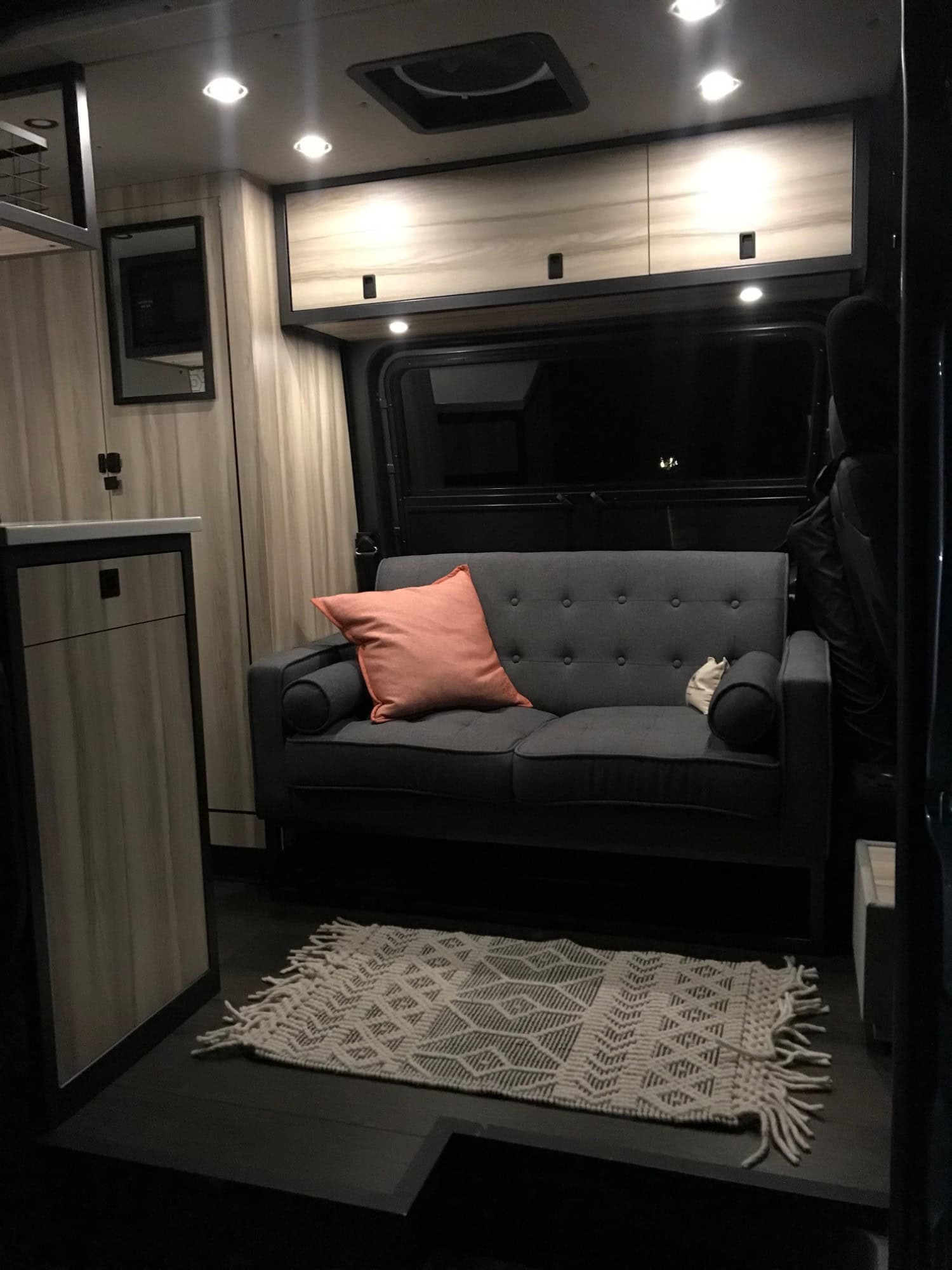

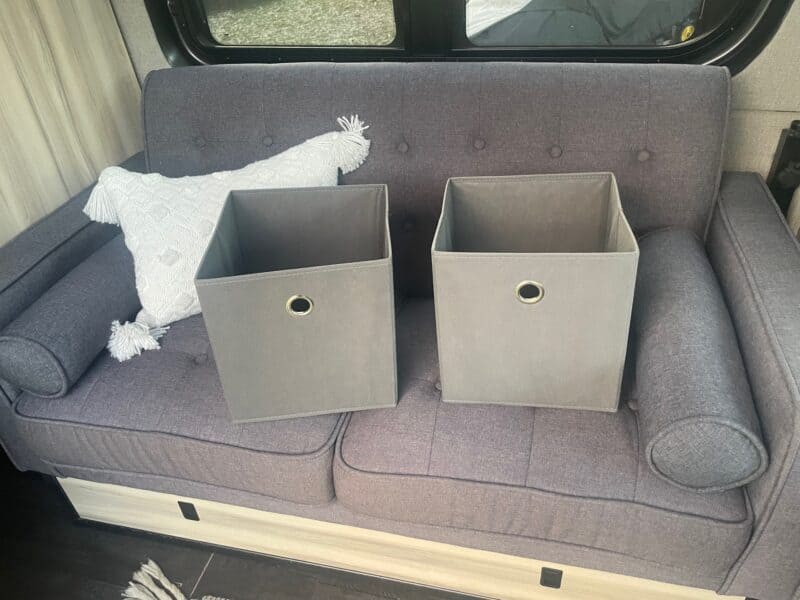

54″ Wide Sofa with large storage below facing side door / view.
Removable table that stores behind the sofa
Passenger seat swivels to face rear.
Fold-down table between front seats..

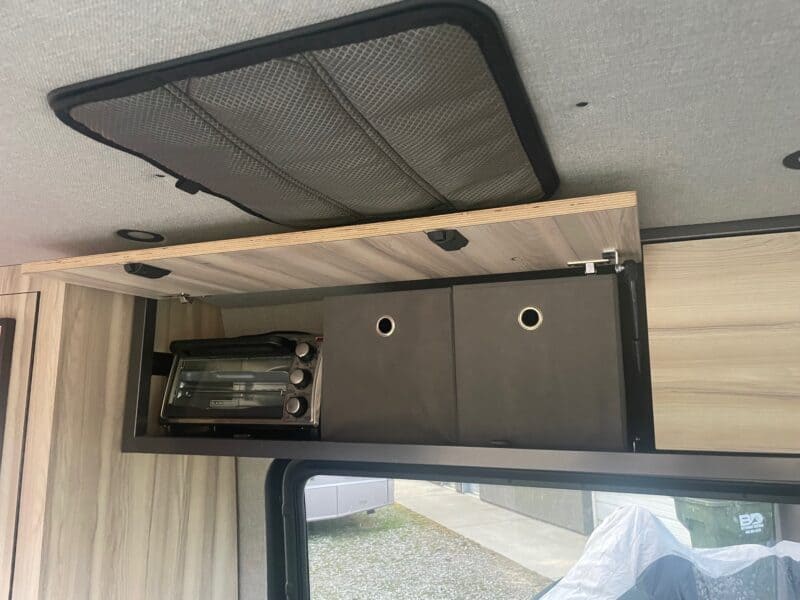

Large over-sofa cabinet.
MaxxAir Deluxe fan with remote
WeBoost Drive Reach cell phone booster with tilt down OTR antenna.

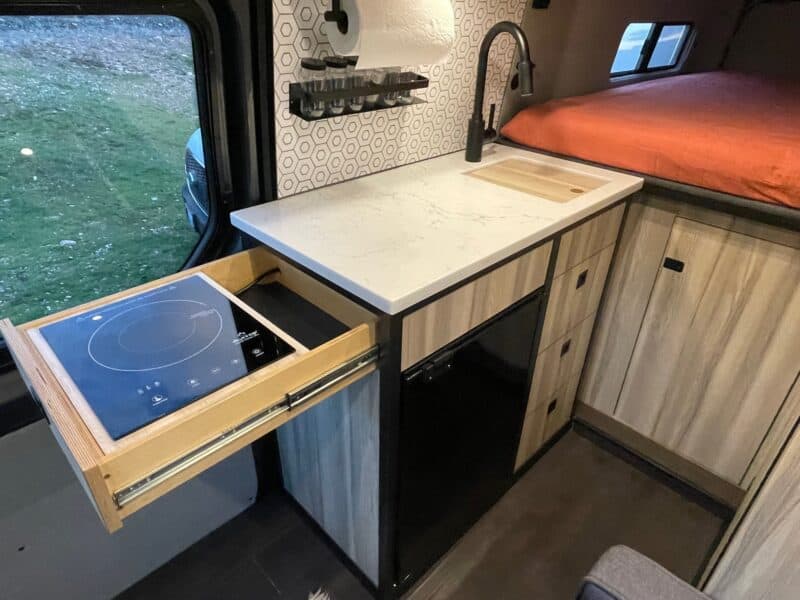

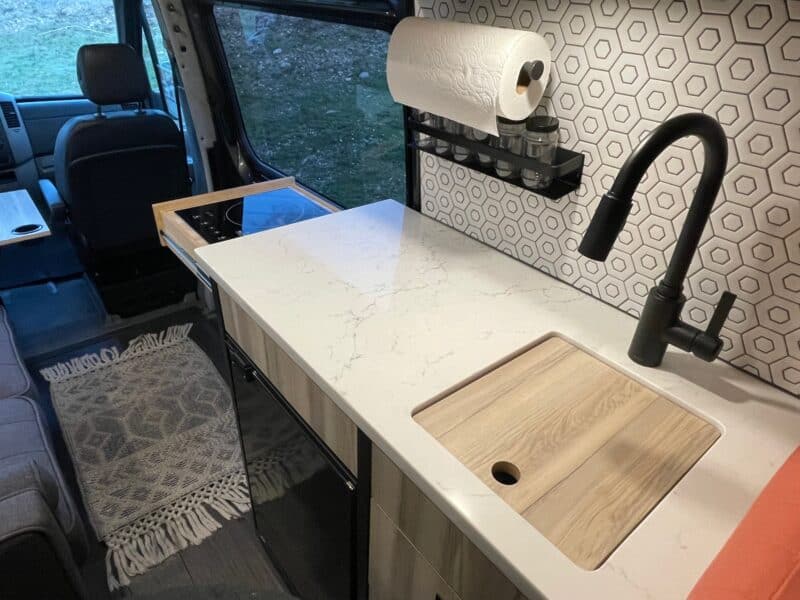

Galley
Quartz countertop
Welded steel cabinet frames with laminate faced baltic birch panels
1 Utensil and glassware drawer under sink.
2 large/deep drawers
1 Induction cooktop drawer with cooking utensil storage.
Deep stainless steel sink
130L TruckFridge 12v refrigerator.

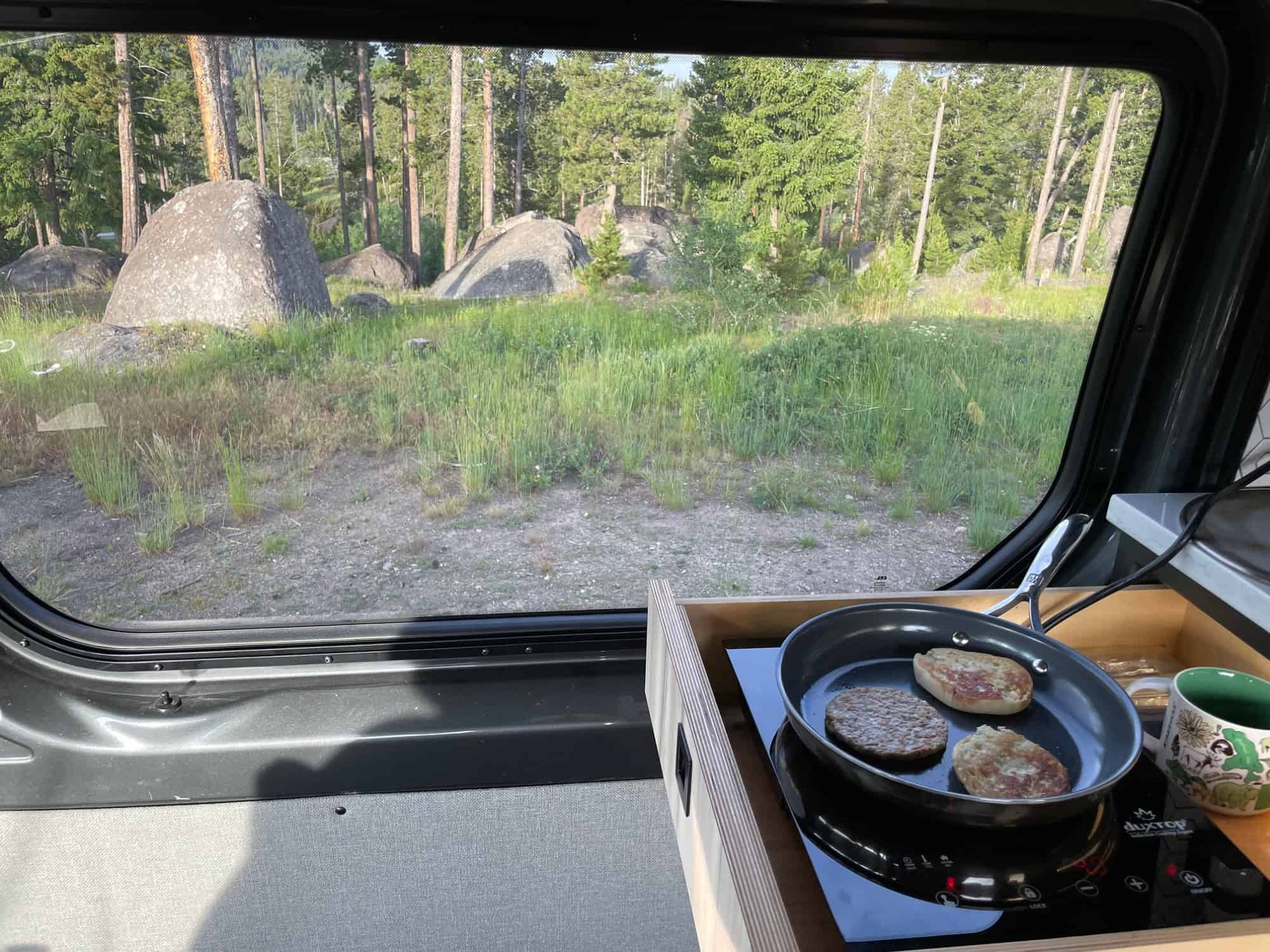

Induction cooktop built into drawer.
Microwave mounted above sink.
Toaster oven included – stored in cabinet above sofa.

Sleeping Area
66″x76″ Bed Deck

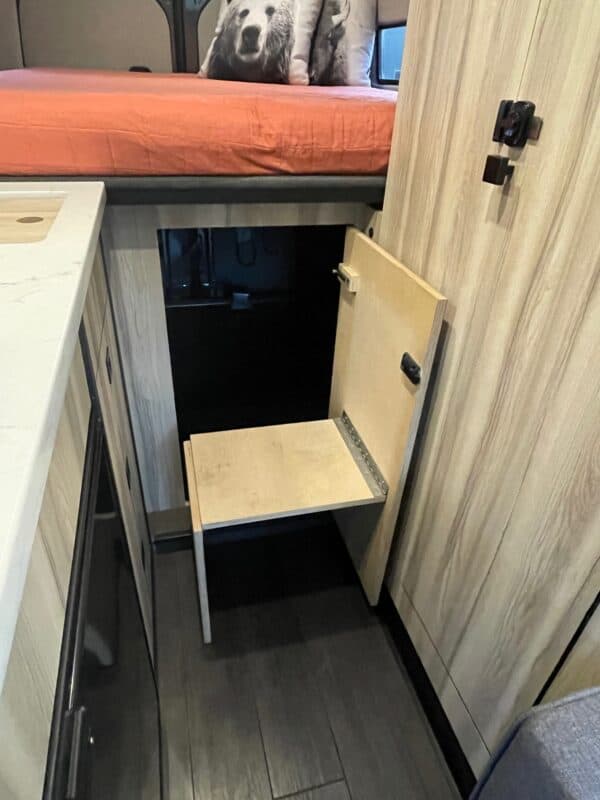

Concealed fold-down step on the garage pass-thru door.
Dimmable overhead lights.
Reading lights.
USB/12v sockets on both sides at head of the bed/rear door.
Easy access to 120v outlet in garage right below head of the bed with shelf for CPAP machine. Hose can run down between head of bed and rear door.
3 panels are removable if you want to haul something larger.

Bathroom

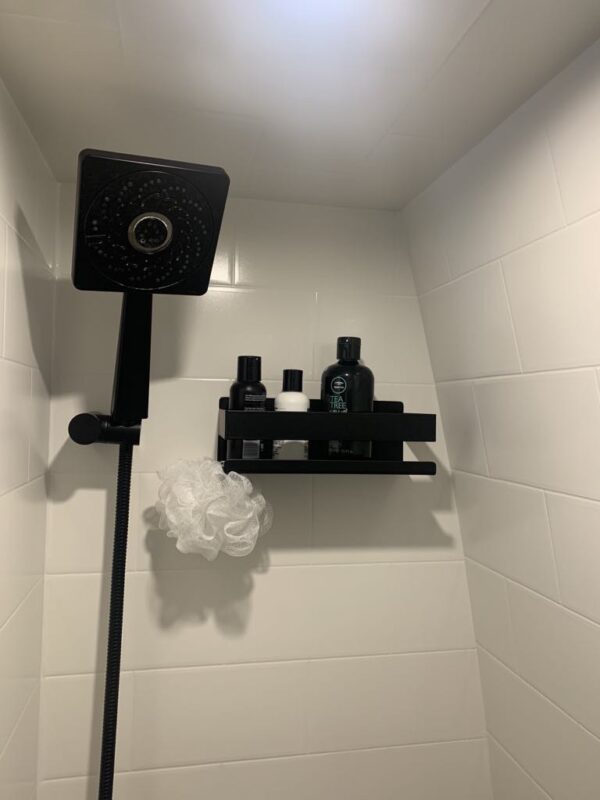

Indoor Shower with efficient shower head.

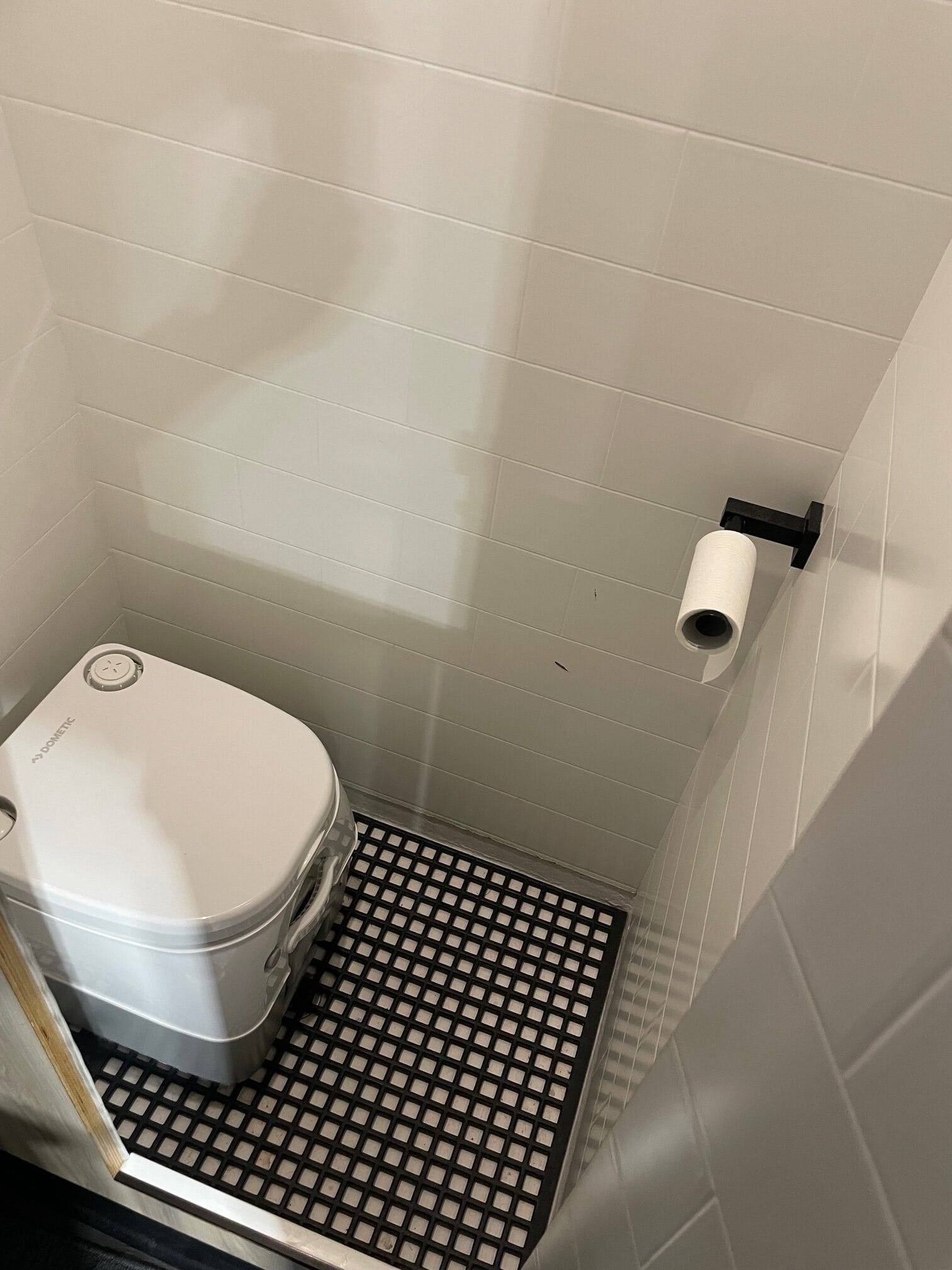

Cassette toilet mounted in shower.
New in the box toilet included with van. Dometic 5 gallon.

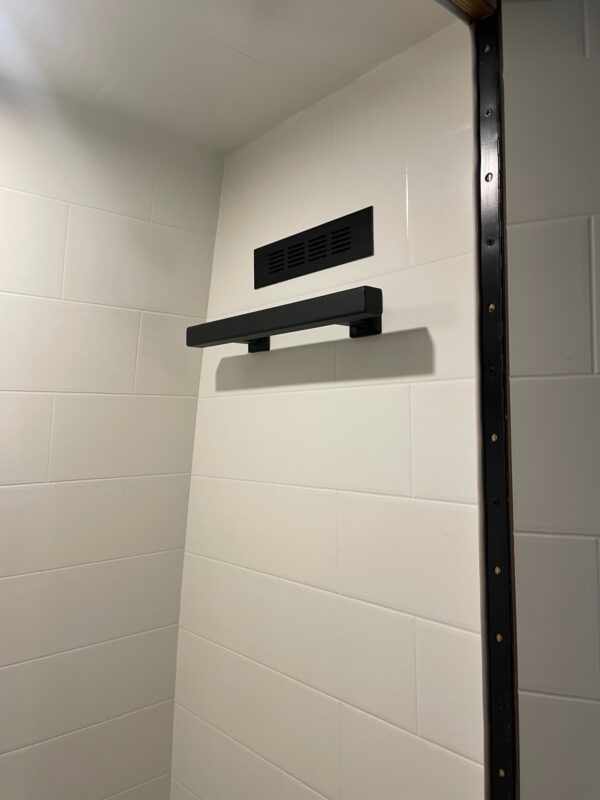

Two speed exhaust fan. Low to keep things fresh and provide a little ventilation when the van is parked. High for when you are using the shower or toilet.

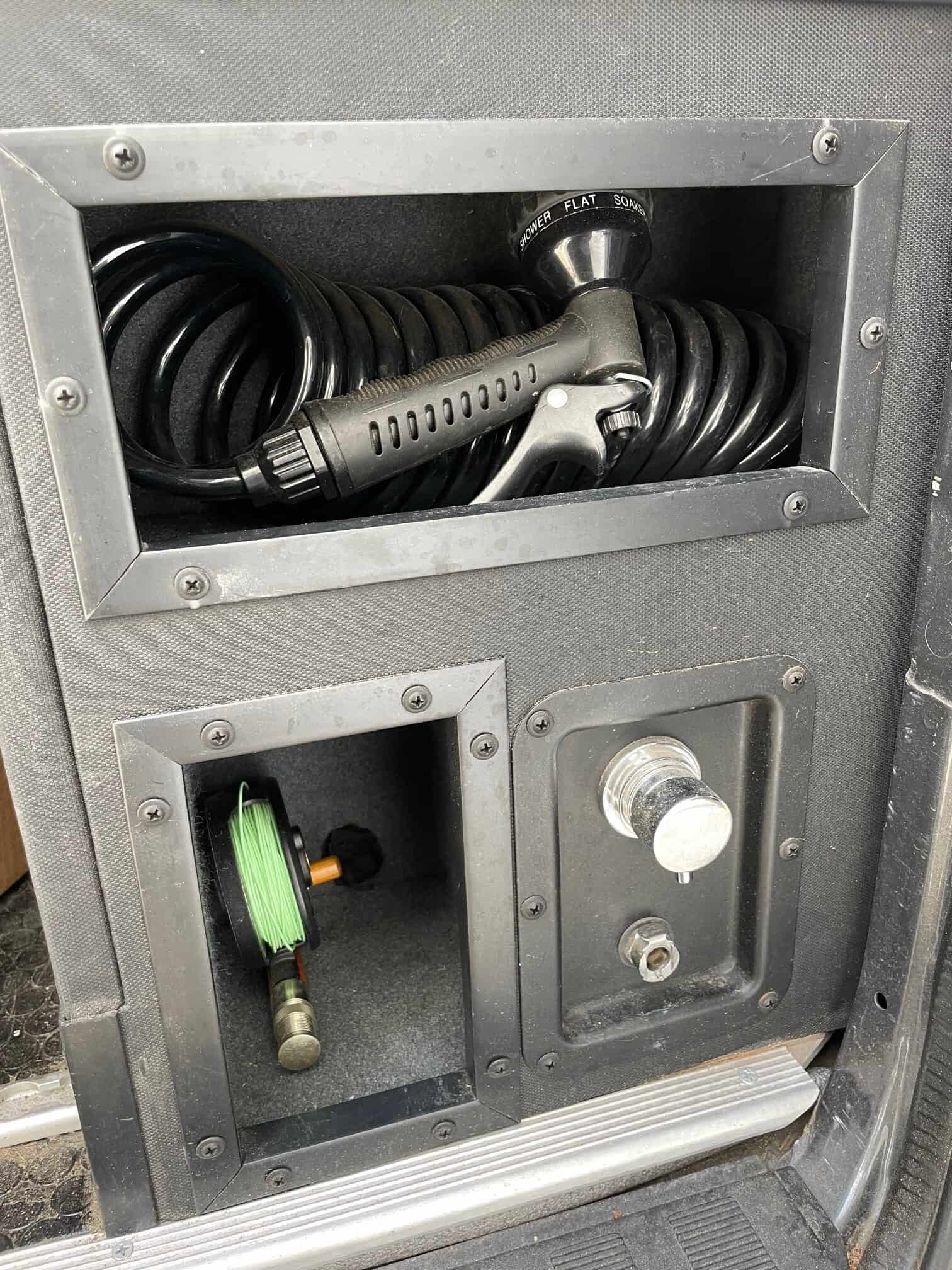

Outdoor shower at rear of van.

Garage

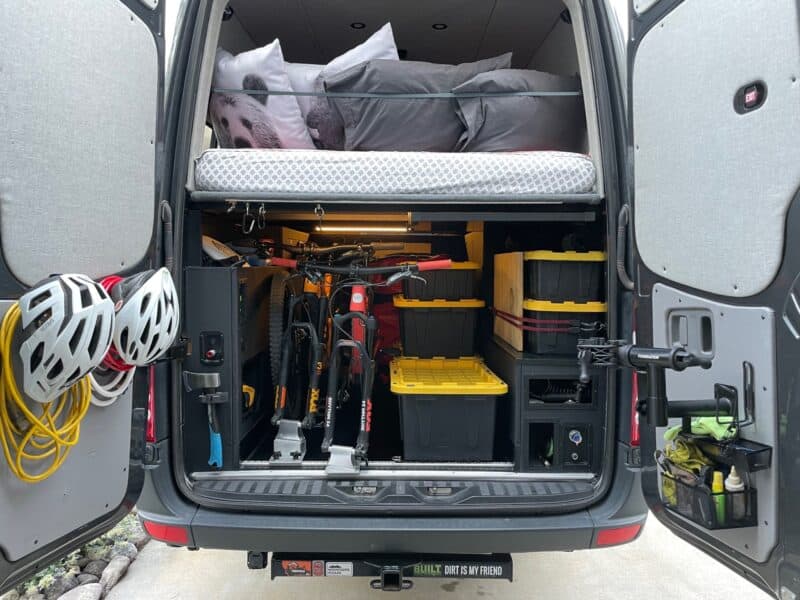

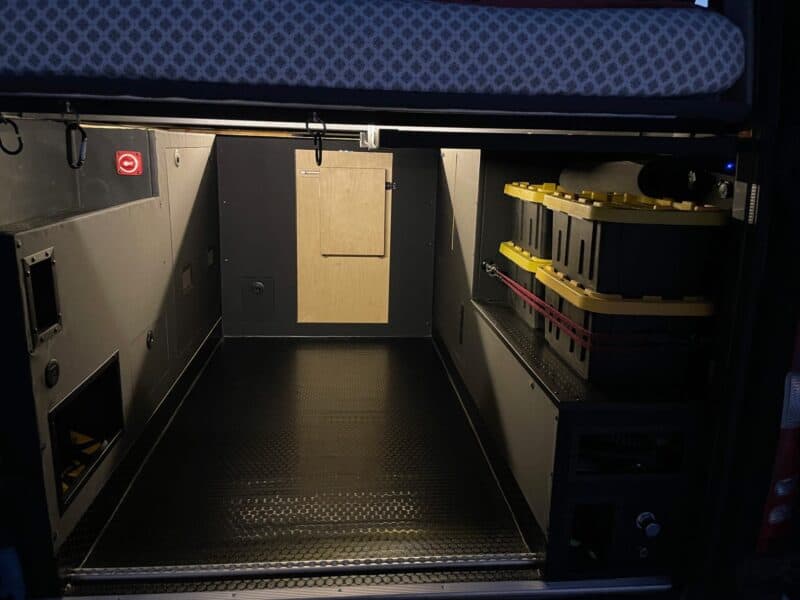

Huge heated garage for bikes and gear.
41”w x 38”h x 72”d

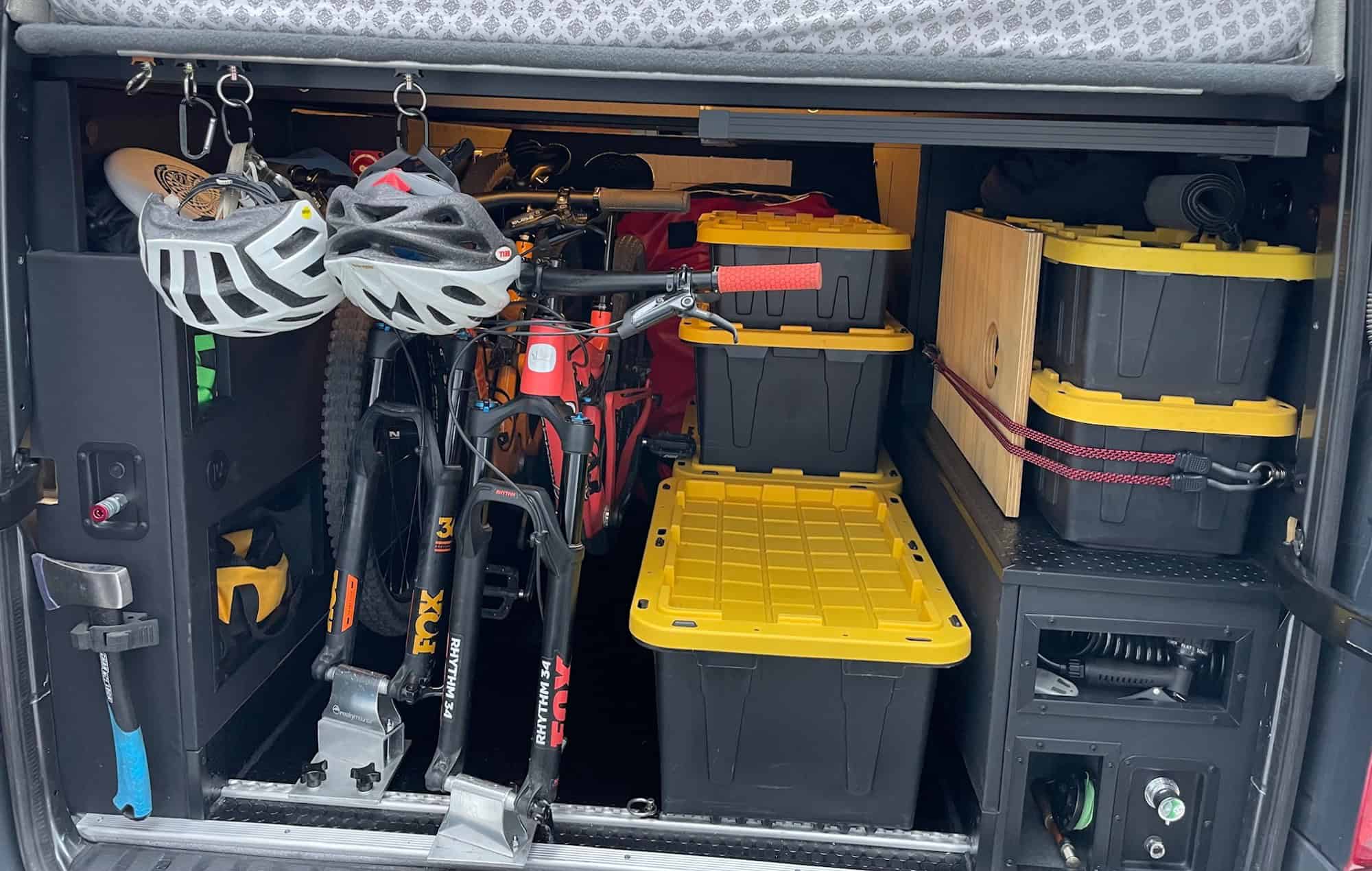

Room for 4 bikes or 2 bikes, 2 inflatable paddle boards, and other misc gear.
2 Fly Rod storage tubes for assembled 9′-6″ rods – lined.
L-Track at back of garage floor for bike mounts, etc.
L-Track at bottom of bed deck along back edge for hanging gear.
100w portable solar panel stored on bottom of bed deck.

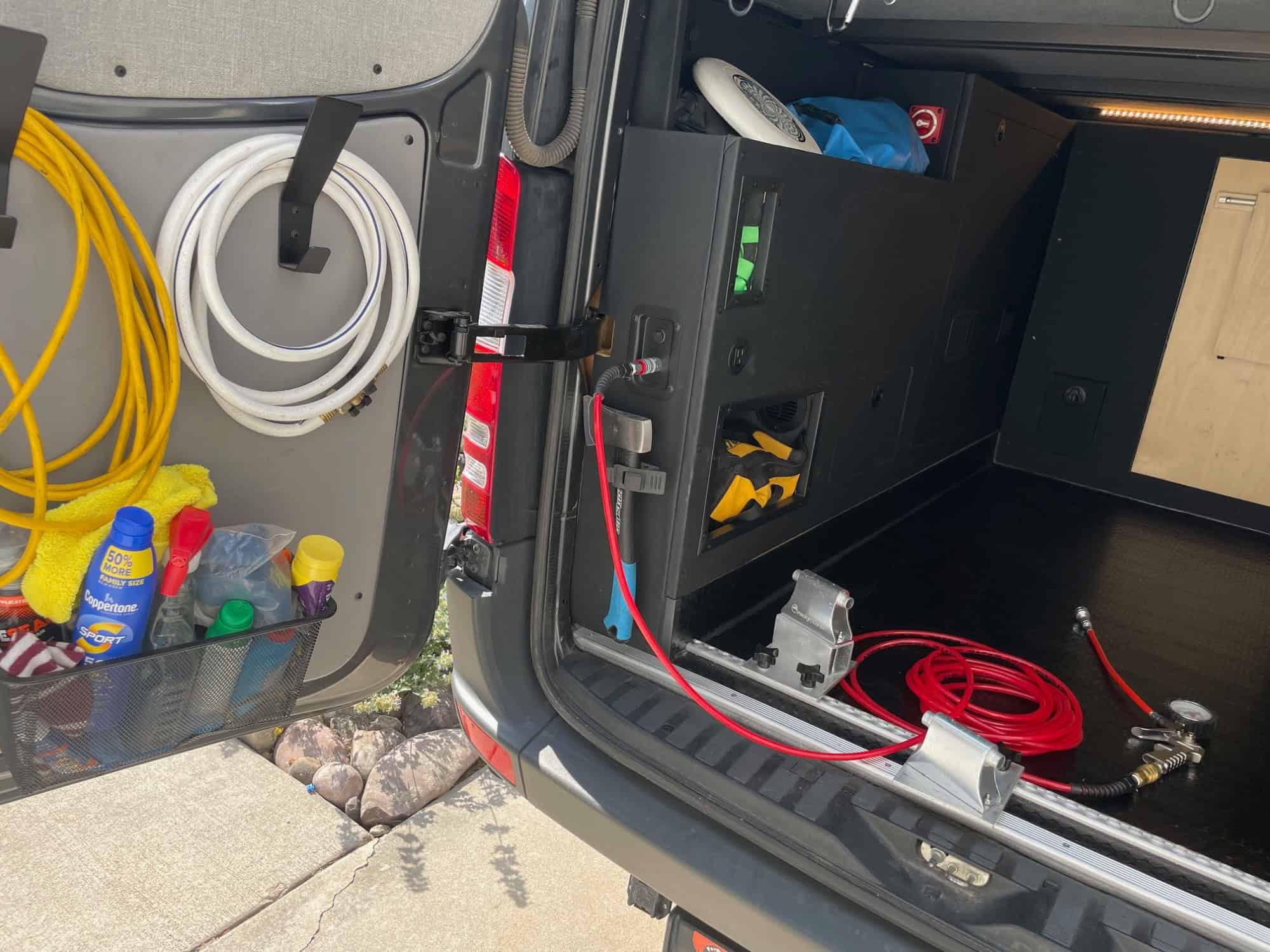

Onboard air compressor – Air down for rough roads, fix a flat, or air up your bike tires. Also used to winterize water system.
Outdoor shower.

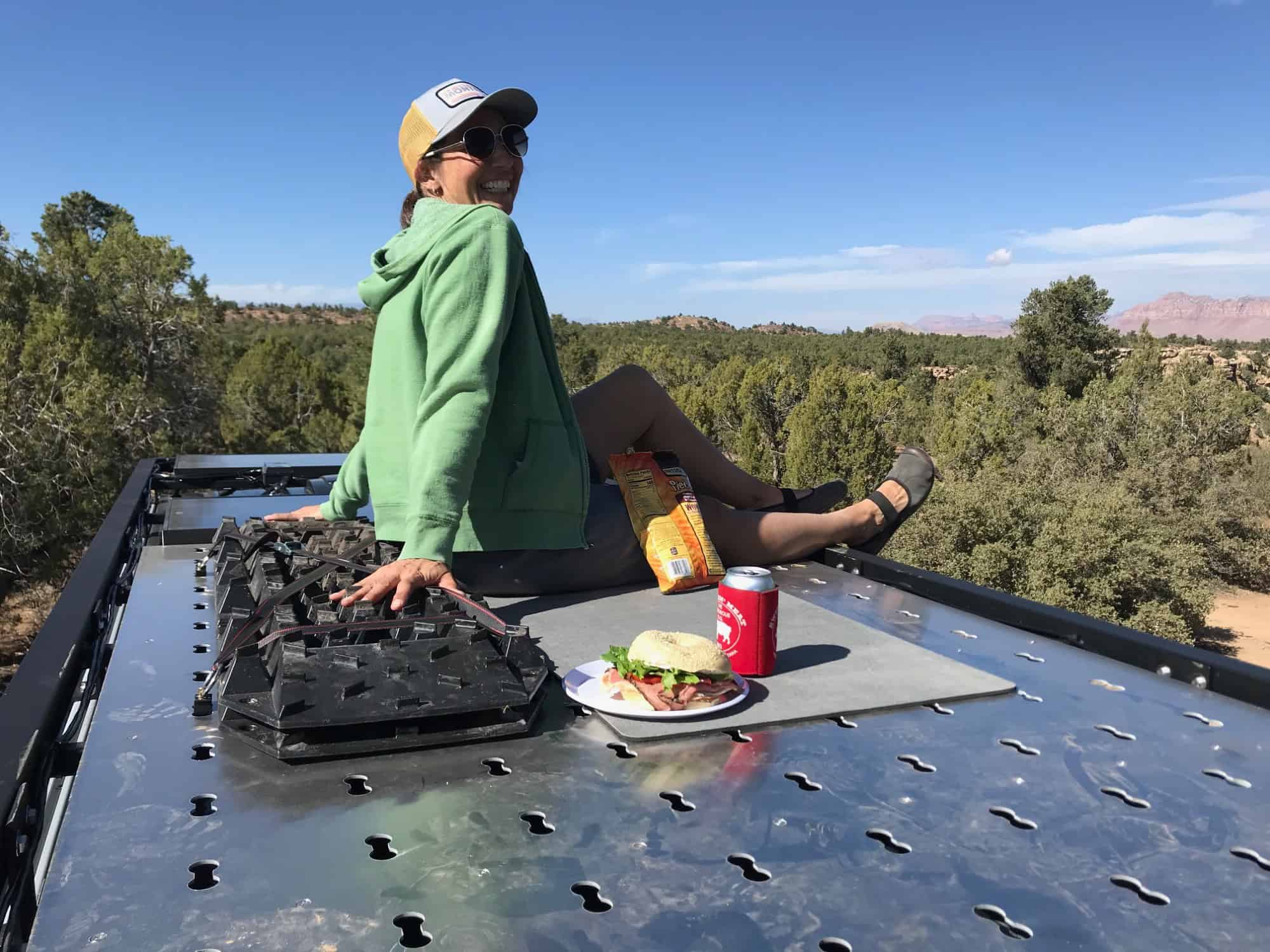

Roof cargo deck for additional gear or beers and lunch.

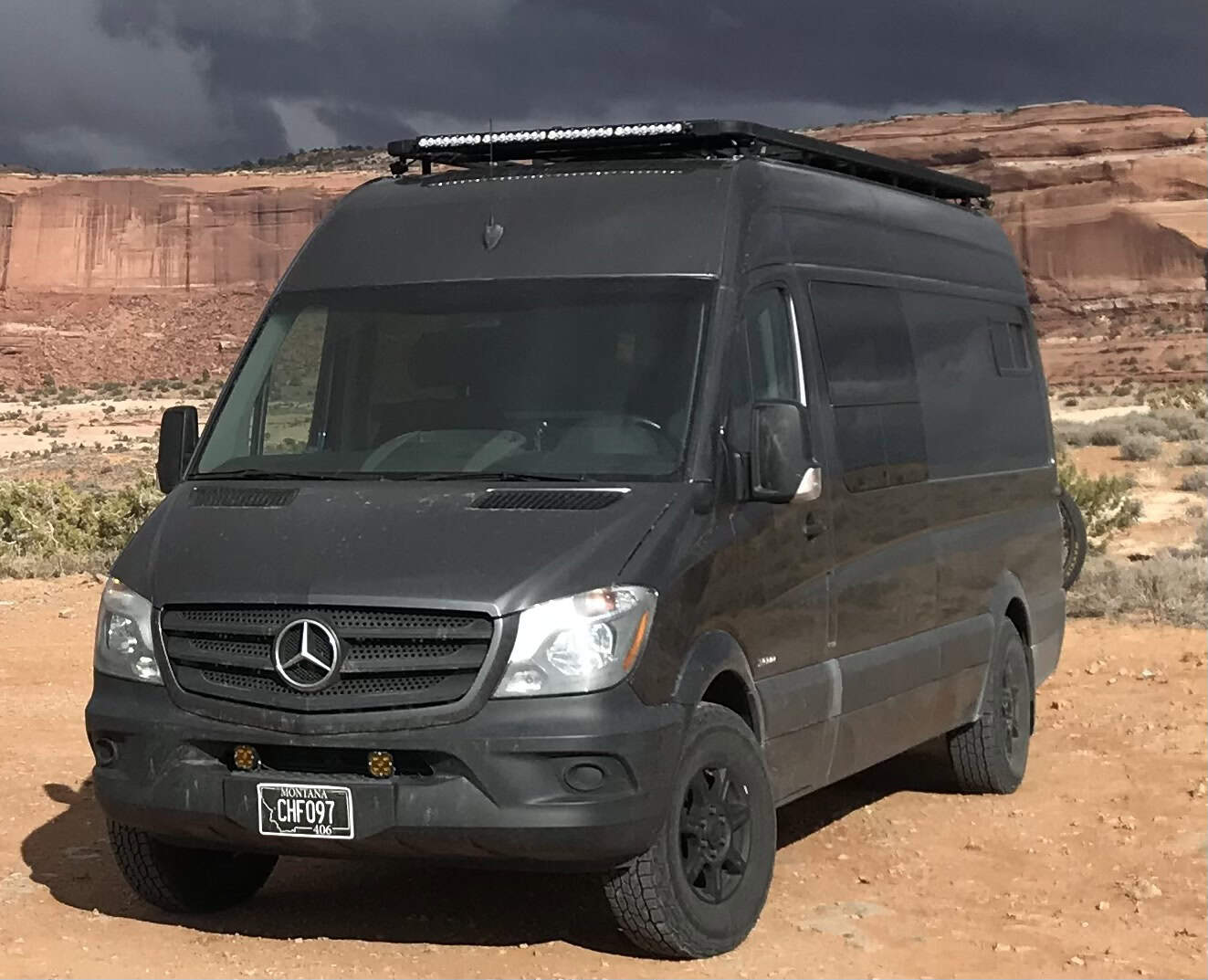

Baha Designs LED light bar for back roads.
SAE approved fog/snow lights on bumper.

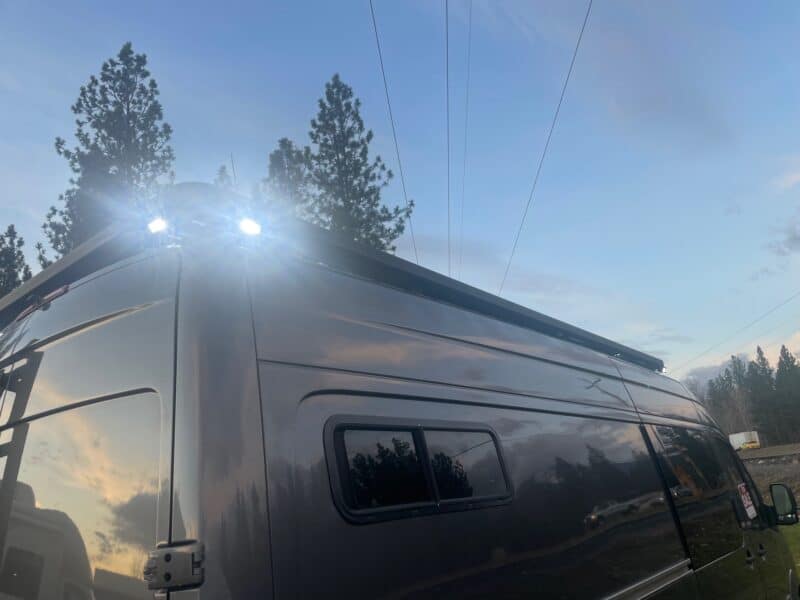

Roof deck mounted side and rear area lights for campsite illumination.
We-Boost fold down OTR antenna.

Dual Heat System
2kw Autoterm diesel air heater. Replaced/New in winter of 2024. 3 Year Warranty.
5kw Hydronic diesel heater to heat air, water, or engine.

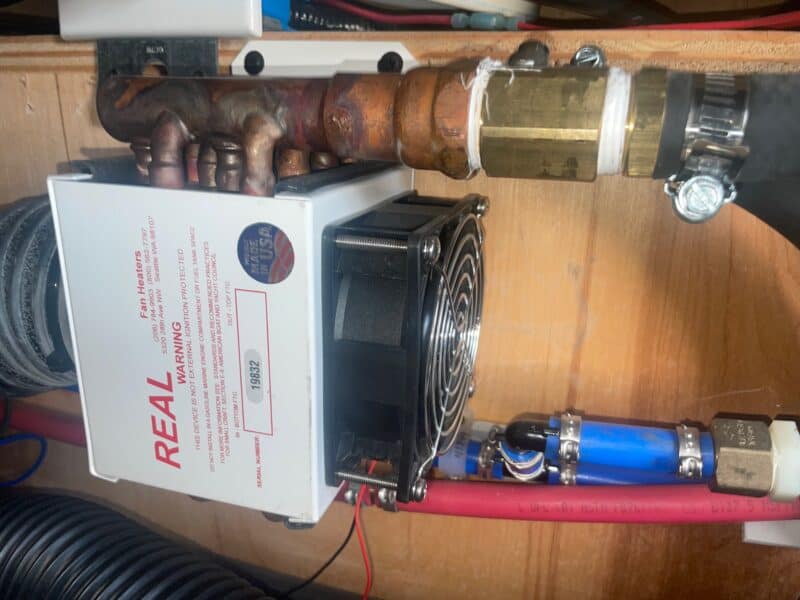

Fan-coil blowers for hydronic heater located under passenger seat and in garage. Ducts disperse heat evenly through the van. Even more quiet than the little 2kw air heater.

Electrical System
468 Ah Lithium Battery Bank – 3x Ohmmu 156 Ah
External battery warmers controlled by Victron system for cold weather use.
2500w Inverter – Aims Power
260w Solar on Roof – Room for up to 600w additional if you want to give up some of the cargo deck.
100w Portable Solar Panel stored in garage under bed deck.
Victron Orion XS 50A DC-DC charger from alternator.
(Recently installed to replace dual Victron Orion 30A DC-DC chargers)
Victron SmartSolar 100/20 MPPT charge controller for rooftop panels.
Victron SmartSolar 75/15 MPPT charge controller for portable panel.
Victron Cerbo GX system monitor – Monitor online using the Victron VRM portal.
Victron BMV-712 Smart Battery Monitor
WeBoost Drive Reach OTR included.
30A shore power inlet.
SAE Solar Panel plug on bottom or rear bumper.

Plumbing System
30 gal fresh water tank
25 gal gray water tank (20gal on drivers side, 5 gal on passenger side – Interconnected)
20L (5 gal) Isotemp Spa water heater – Heat water with electric element, diesel hydronic heater or the engine while you drive. Water stays hot for 10-12 hrs, warm for 24.
Electric drain valves on gray water tanks with switches located on drivers seat base.
Electric drain valve on fresh water tank.
Easy to winterize with onboard air compressor. Adapter included to connect compressor to outdoor shower hose fitting.
No more pink RV antifreeze.
Seaflow 50psi/3.5 gpm pump.
Adjustable flow shower head. High flow to rinse long, thick hair. Low flow to conserve and stretch the 30 gal tank.

The seatbelts on the sofa did not meet DOT standards and have been removed.

I have extra laminate from building the cabinets that I can include if you want to build more. Or I can build more for you. Upper cabinets at foot of the bed? Replace garage pass-thru door with drawers? Many options.
