2018 Ford Transit T-250 148″ Wheelbase 3.5L EcoBoost Med roof, Quigley 4×4 Factory Conversion with Bunks

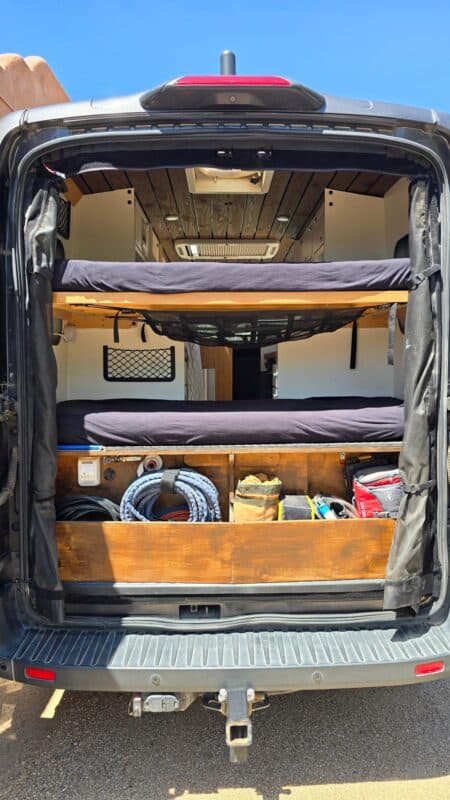

Selling our 2018 Ford Transit 4×4 with factory Quigley 4×4 conversion. We built it from a bare cargo van, fully insulating it with 3M Thinsulate and building the cabinets from 3/4″ maple plywood. The walls are 1/4″ maple plywood and the ceiling is stained pine. The build is for two adults and two teenagers but it can easily be converted for just two adults by removing the bench seat and adding a sofa sleeper. The bunk area can be used for storage or can fit two bikes with the top bunk removed. Standing height for the interior is 5’7″ and the bed size for the main bed is 5’9″ x 4’2″. The top bunk is 5’4″x 2’4″ and the bottom bunk is 5’7″x 2’4″. Thanks for looking and please let me know if you have any questions.

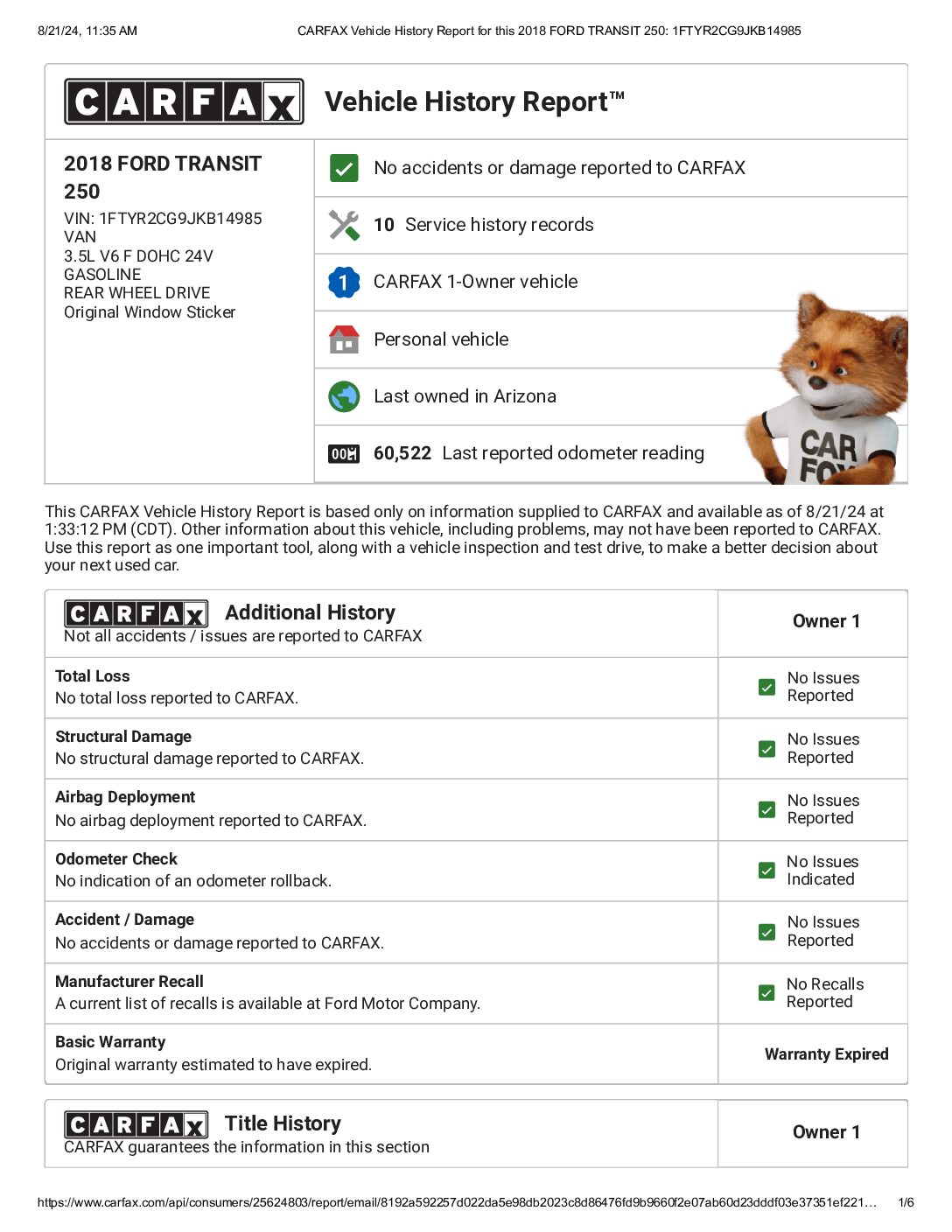

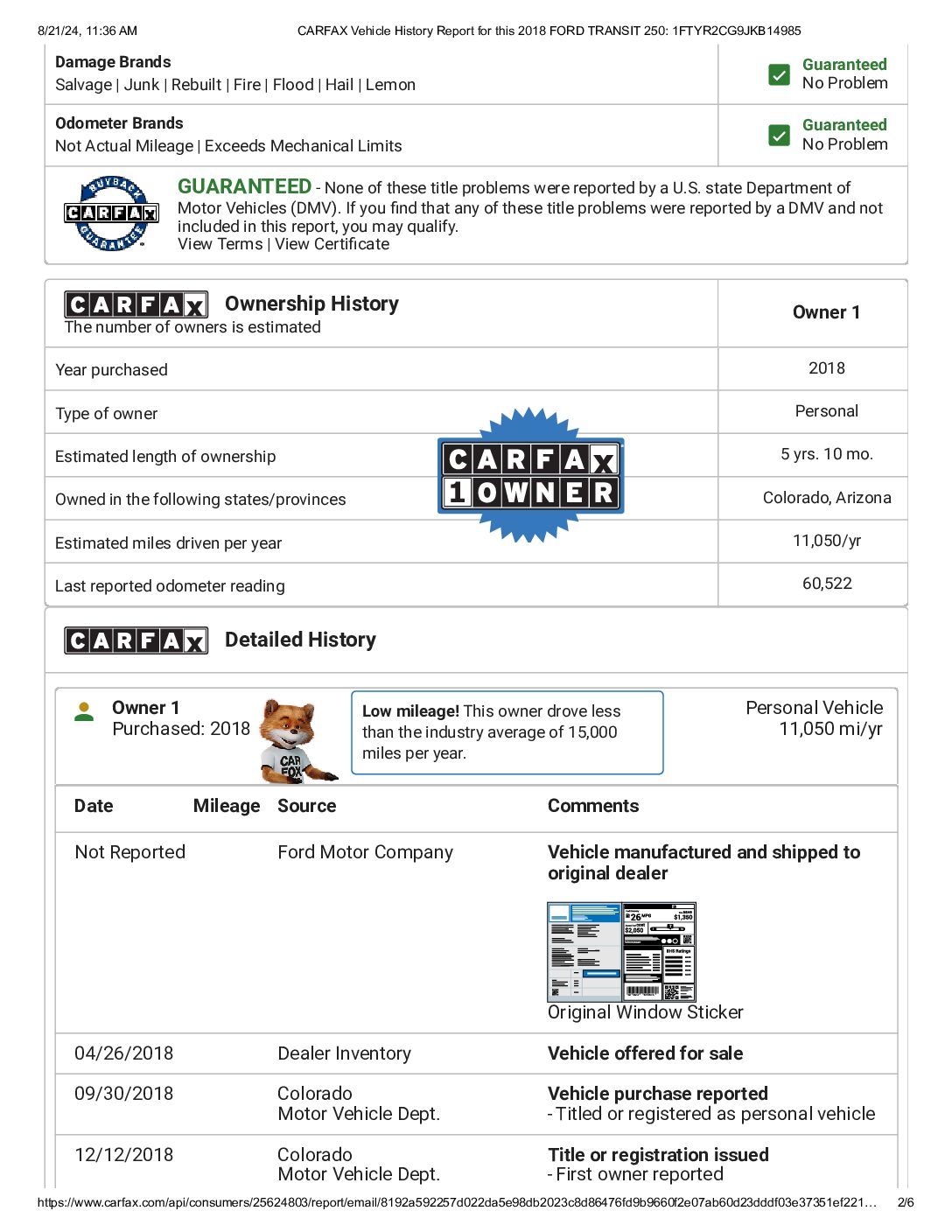

Vin #1FTYR2CG9JKB14985
Build Completed in May 2019
Power Leather Driver and Passenger Seats with Heat
Power Heated Side Mirrors
Rain Sensing Wipers
Lane Departure Warning
Navigation
Heavy Duty Trailer Tow Package 4-pin/7-pin Connector
Brake Controller
Rear Camera

Features at a Glance

340ah Lithium
2000 Watt Inverter
400 Watts Rooftop Solar + 2- 50 watt Folding Solar Panels
34 Gallons Water Capacity
2.5 Gallon Grey Tank
Dry Bag Toilet with 2.5 Gallon Urine Separator
Espar 2KW Gasoline Heater
Propex HS2800 9500 BTU Interior Propane Heater
RedArc DC/DC Charger 40A
Progressive Dynamics 60A Shore Power Charger
Maple Plywood Construction
Vinyl Locking Tiles Flooring
Fully Insulated with 3M Thinsulate

Electrical

2-Renogy Lithium Iron Phosphate Battery 12V 170Ah Total 340ah
Progressive Dynamics Inteli-Power 4000 Series Model PD4060CSV 60amp Charger
RedArc DC/DC Charger 40A
Xantrex Freedom Inverter 2000W, 120 VAC Remote Panel
Victron Energy BMV-712 Smart Battery Monitor
Victron Energy SmartSolar MPPT Solar Charge Controller (Bluetooth) 100V, 30 amp, 12/24-Volt
Victron Energy SmartSolar MPPT Solar Charge Controller (Bluetooth) 100V, 20 amp, 48-Volt
400 Watts Rooftop Solar with 2 Additional 50 Watt Folding Solar Panels 500 watts Total
30 amp Shore Power Connection
External Solarphone Panel Port Up to 20A
WeBoost Cell Booster

Heating

Propex HS2800 9500 BTU Interior Gas Heater
Espar Airtronic AS3 B2L 12V Gasoline 2KW Ford Transit kit

Kitchen

Tech-Edge iSeries Tank Systems Monitor
SEAFLO 12v 3.0 GPM 45 PSI Water Pressure Pump
34 Gallon Marine Grade Water Tank
10″ x 2.5″ Water Filter Housing with Sagan Life Ultra Flo Water Filter
Akdy 25 in. Workstation Ledge Single Bowl Topmount Kitchen Sink 25 in. x 22 in.
Nova Kool 12v Refrigerator/Freezer R4500 4.3 Cubic Feet
2-10lb Propane Tanks with Mopeka Monitors
CAN Srl Two Burner Propane Stove
Maxxfan Plus with Remote, Thermostat and Rain Sensor

Dining/Sleeping Area

Sirocco II 12v Cabin Fan, Multi-Position
Lagun Table Mount System with 19 1/4″x 40″ Bamboo Top
Majestic 22″ 12v Led Tv
Fold flat 3 Person Bench Seat
Driver and Passenger Swivel Seats

Exterior Accessories

Arctic Tern Roof Hatch – Electric Deluxe
Aluminess Rear Door Ladder with Tire Mount
Ford Transit Rhino-Rack Vortex RCL 2 Bar Roof Rack for Factory Mounting Points
Thule 10 ft HideAway Awning Rack Mount
Rear Helper Leaf Spring

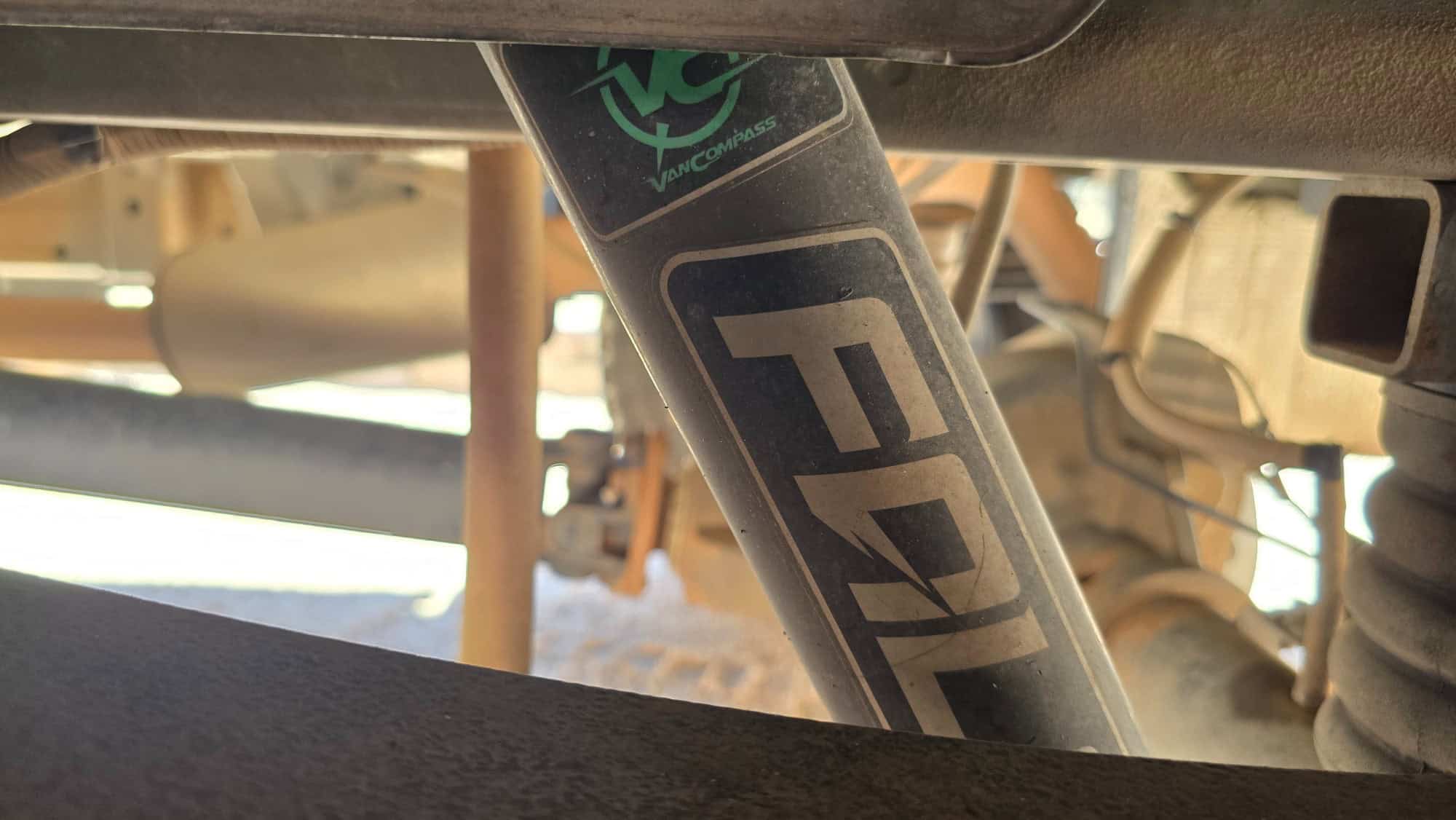

Van Compass Falcon 2.1 Monotube Rear Shocks
Bilstein B6 Front Struts
SumoSprings Front Coils
SumoSprings Rear Bump Stops
Black Rhino Havasu 16″ Wheels
Mickey Thompson Baja Legends LT265/70R16

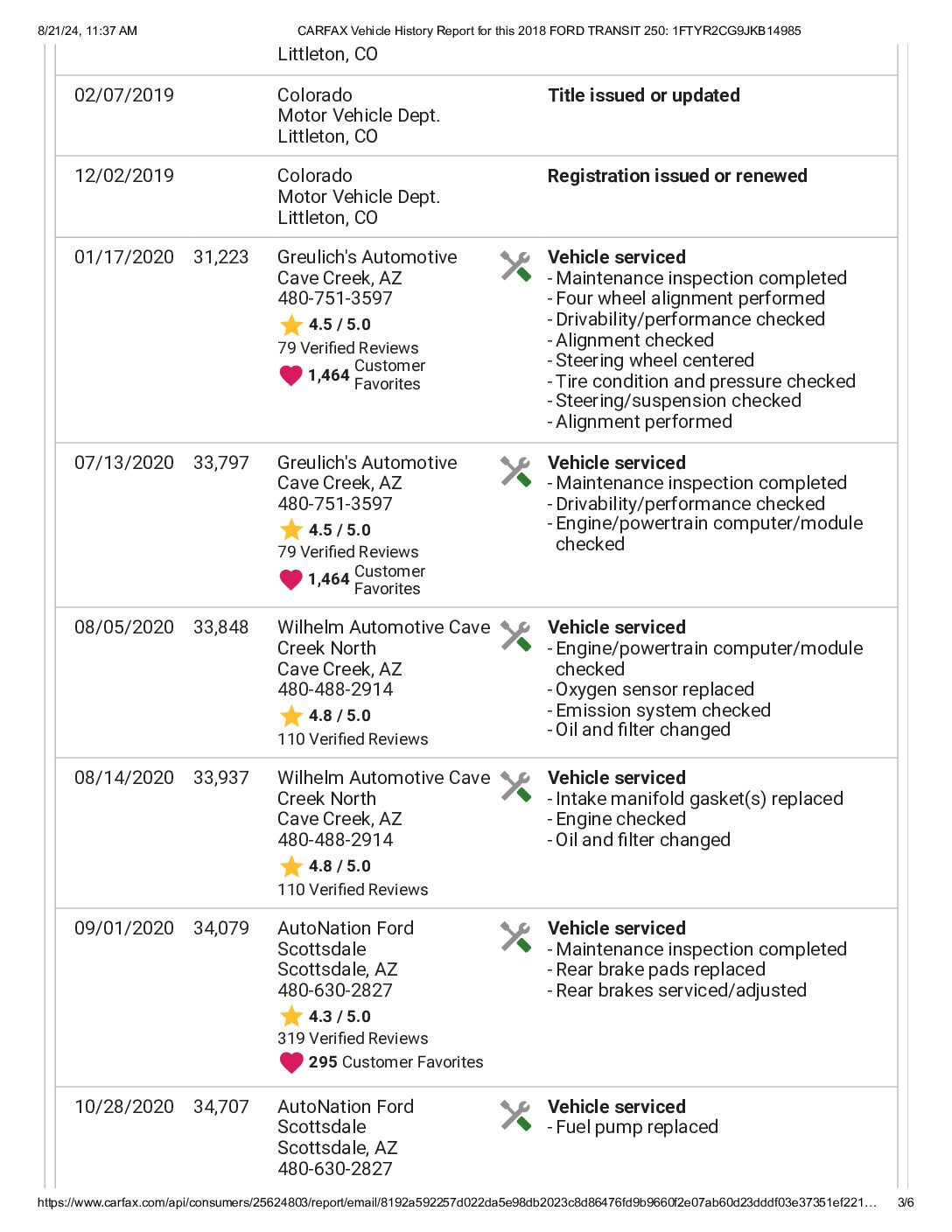

Maintenance

Recommended Oil Changes Amsoil 5w-30 Synthetic
Coolant Flush Switched from Orange to Yellow Coolant
Transmission Fluid Flush Amsoil Transmission Fluid
New Radiator and Thermostat
New Akebono Brake Pads Front and Rear
New Odessey Performance Vehicle Batteries
