, Colorado
Passenger Side No Awning
View 57 Photos

, Colorado
26,563 Miles
Last Modified September 7, 2021

2018 Coach House Arriva 24TB
The Arriva Class B motor home based on the Mercedes-Benz 3500 Sprinter passenger van. The Arriva contains features that are not always found in Class B RV’s, which includes the standard multiplex firefly system. This system controls the electronics more accurately, more conveniently, and there is even an option to control all of these features from your phone.

This 2018 Coach House Arriva 24-TB 24′ Class B Motorhome is in excellent condition with only 26563 miles on it. This is one of only a couple Class B motorhomes on the market that come with a DRY BATH. A large, separate shower in the rear bath make extended camping trips pleasant, even off-grid!
This unit is built on the Mercedes Sprinter 3500 extended van chassis and the 3 liter turbo-diesel has plenty of power while offering excellent fuel efficiency. The Onan generator provides plenty of power while disconnected from shore power.
The 24TB floorplan includes 2 twin beds that easily convert into a king size bed. A roof-mounted, ducted air conditioner/heat pump is included as well as a ceiling exhaust fan with rain-sensing auto-close capability. A propane furnace is also included and both (grey and black) holding tanks are heated for cold-weather camping. An LG flat screen TV on swivel mount allows for viewing from anywhere inside the coach. A Wineguard HD powered roof-mounted antenna are included as well as In-motion satellite TV system are available to both TVs (indoor and outdoor).

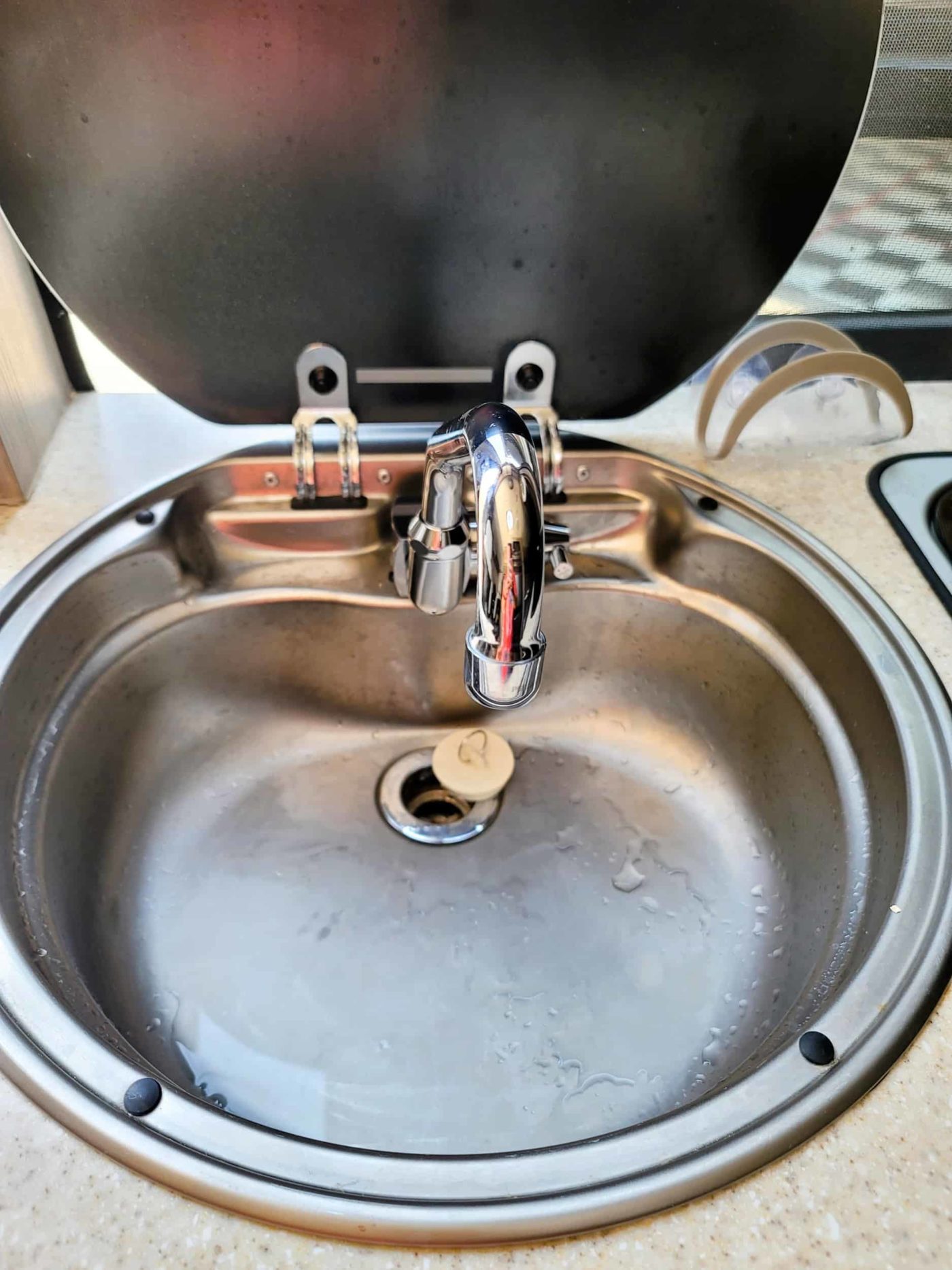

The galley features a convection microwave oven, 2 burner propane cooktop, stainless steel sink with hot water provided by the tankless Truma on-demand hot water heater, flip-up counter top extension, large pantry and 6 cubic foot, American made, 3-way (AC/DC/LP) Dometic refrigerator/freezer. Both captain’s chairs in the cab swivel around to provide comfortable indoor seating for working or dining at the easily stowable work surface/table.
Exterior features include a 2nd LG flatscreen TV, power awning with LED lights, propane accessory connection, outdoor shower and roof-mounted solar panel for house battery charging.

Full list of features:

2 LG TVs
Cable Ready
Dry Shower Inside the RV
Porcelain toilet with hand sprayer
Outdoor Shower with hot and cold water
Onan LP Generator
15,000 BTU ducted roof air conditioner with heat pump
19,000 BTU furnace
Smoke detector
CO2 detector
LP gas detector
6 cu ft 3-way refrigerator
Dual burner LP cooktop
Power Boost Antenna
2” Receiver Hitch
Back up Camera
Cruise Control
Blind Spot Monitor/Warning System
Auto Lane Change Camera activation
Lane Departure Warning System
RV GPS in-dash
XM Satellite Radio
190-watt Solar Charging System
Built in Inverter
Wineguard HD Powered TV antenna system
Wineguard In-motion Satellite TV system with receiver
Truma AquaGo tankless hot water heater
Alcoa Aluminum Wheels
Powered Awning with LED accent lighting
Side and rear screen doors
MCD day/night shade system: soft light by day, privacy at night
Solid surface counter tops

Engine Mercedes-Benz / V6
Chassis Brand Mercedes-Benz Sprinter
Chassis Model 3500
Cylinders 6
Horsepower 188 hp @ 3,800 RPM
Torque 325 ft-lbs. @ 1,400 RPM
Displacement 3.0 litres
Fuel Type Diesel
Fuel Requirements Regular
Carburetion Type Fuel Injected
Turbocharged Yes
Supercharged No

Transmission Brand Mercedes-Benz
Transmission Type 7 Speed Automatic
Overdrive Yes

Driveline Type 4X2

Length 24.17 ft. (290 in.)
Width 6.54 ft. (78.5 in.)
Height 9.67 ft. (116 in.)
Interior Height 6.17 ft. (74 in.)
Wheelbase 14.17 ft. (170 in.)

GVWR 11,030 lbs.

Fuel Capacity 26.4 gal.

Holding Tanks
Number Of Fresh Water Holding Tanks 1
Total Fresh Water Tank Capacity 31.0 gal.
Number Of Gray Water Holding Tanks 1
Total Gray Water Tank Capacity 20.0 gal.
Number Of Black Water Holding Tanks 1
Total Black Water Tank Capacity 13.0 gal.

Propane Tank(s)
Number Of Propane Tanks 1
Total Propane Tank Capacity 12.0 gal.
Total Propane Tank Capacity 55 lbs.
