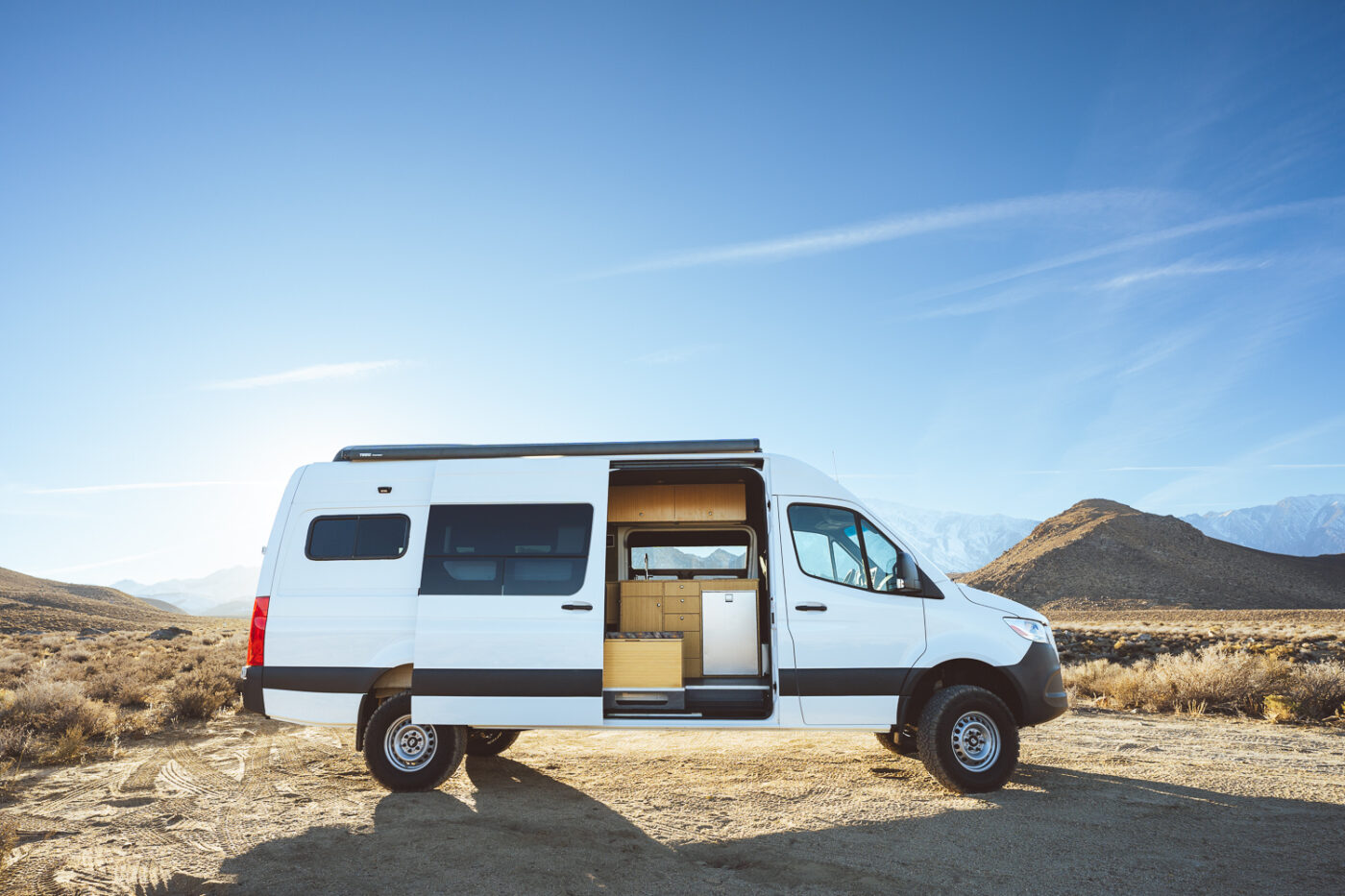

This custom built 2019 Freightliner Sprinter 170 4×4 is perfect for full time living or long term travel. Incredible attention to detail and craftsmanship with the finest quality hardware and materials were used in combination to create a functional, durable, efficient and comfortable space.

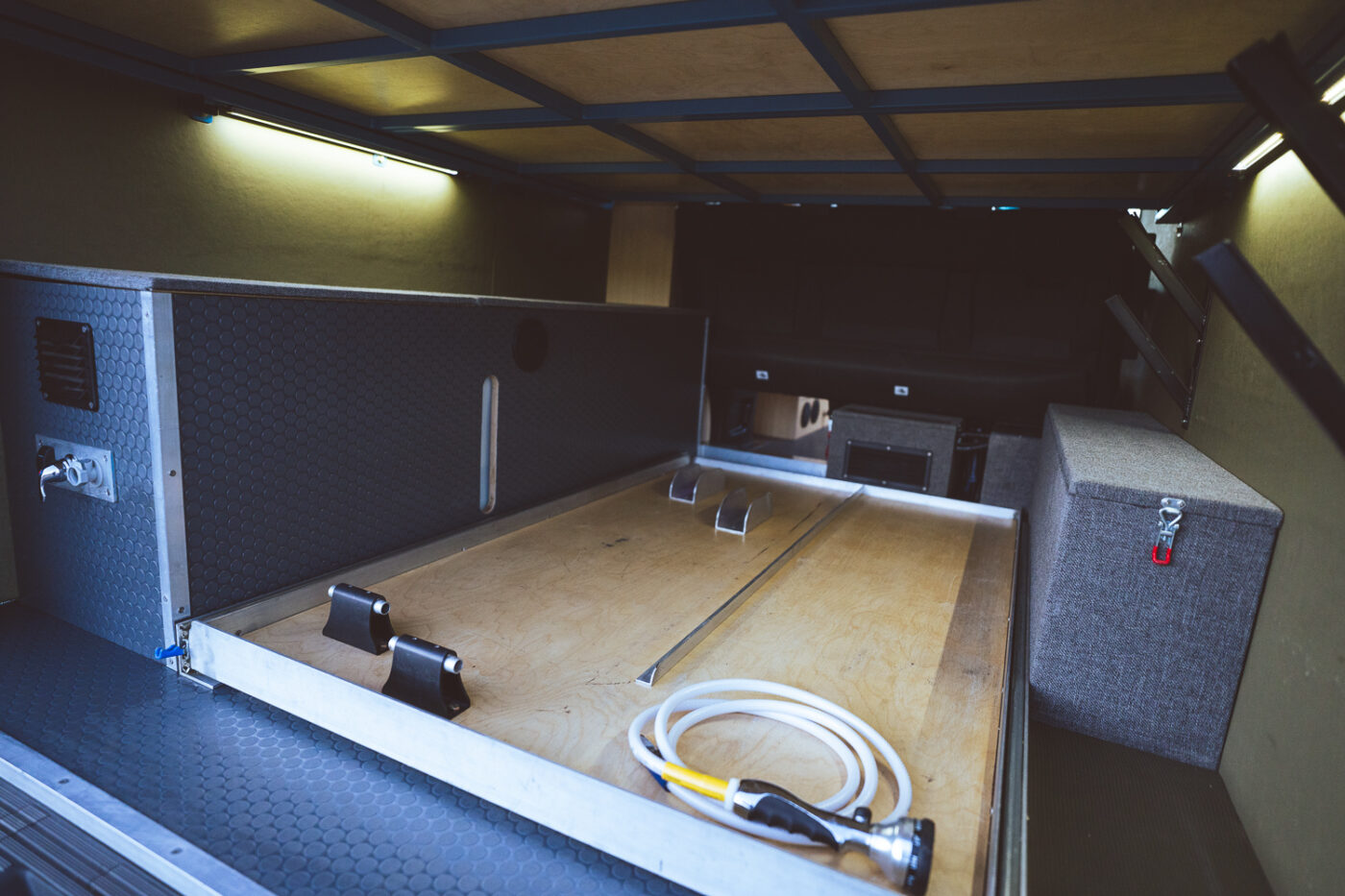

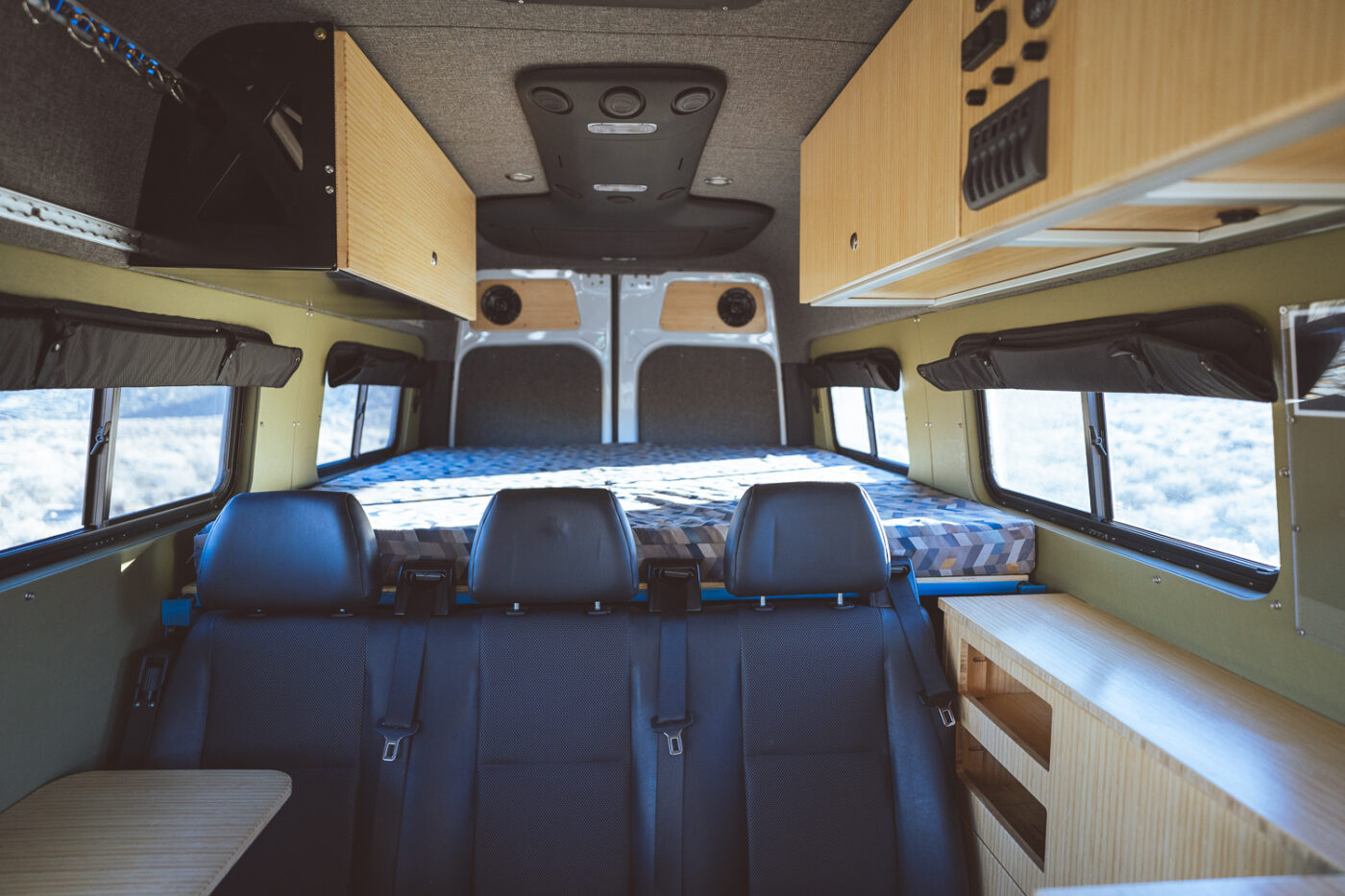

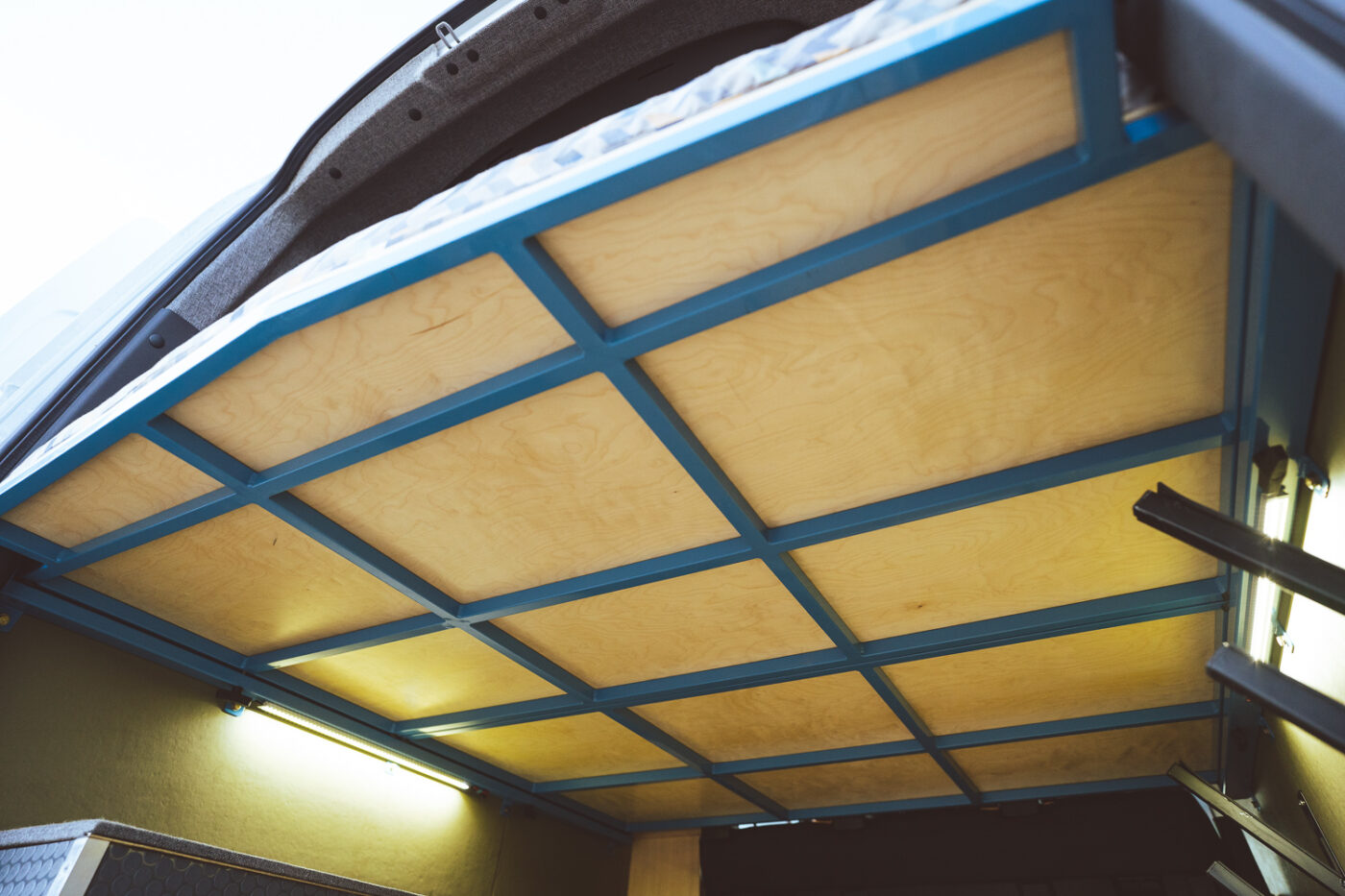

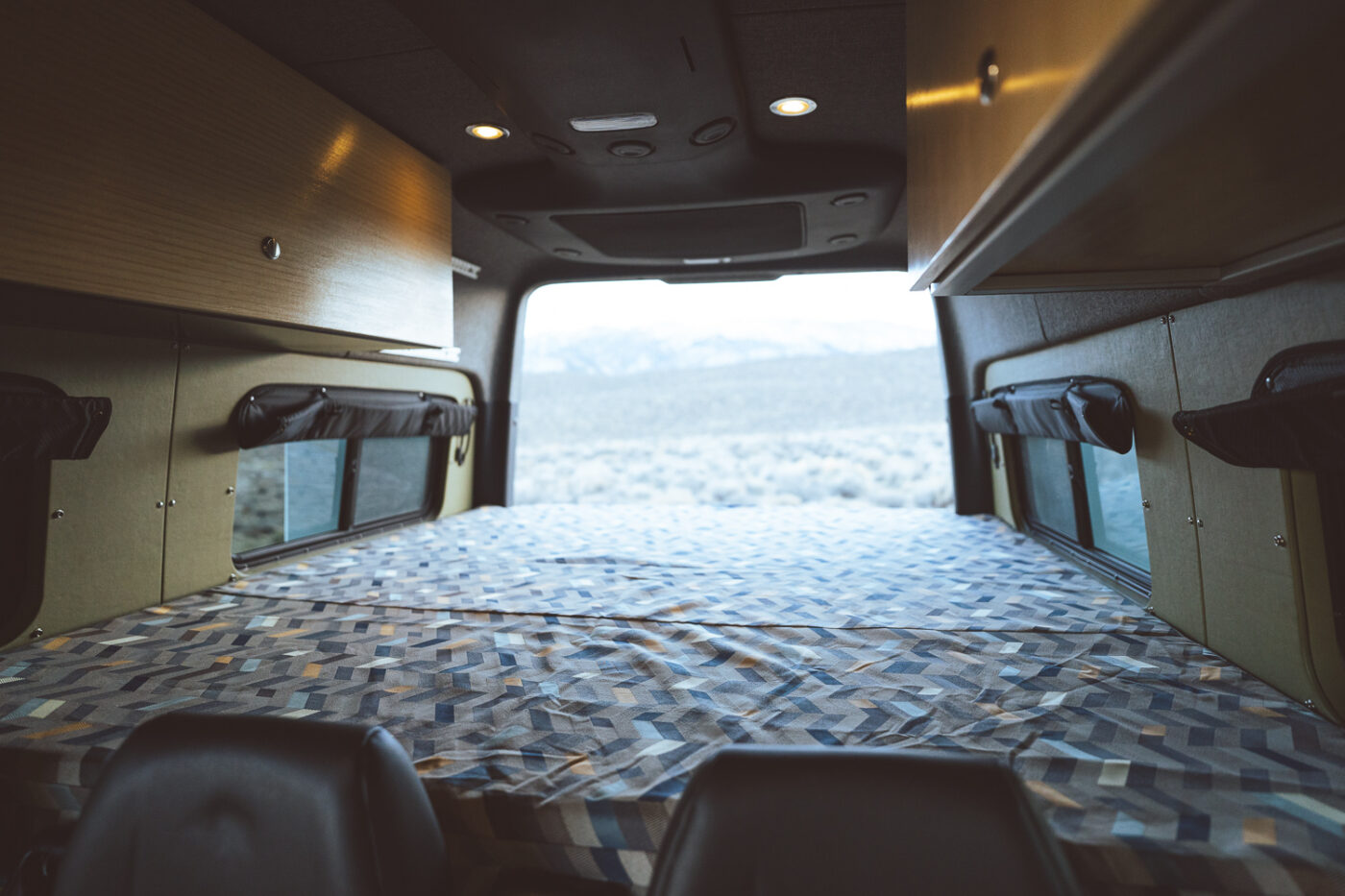

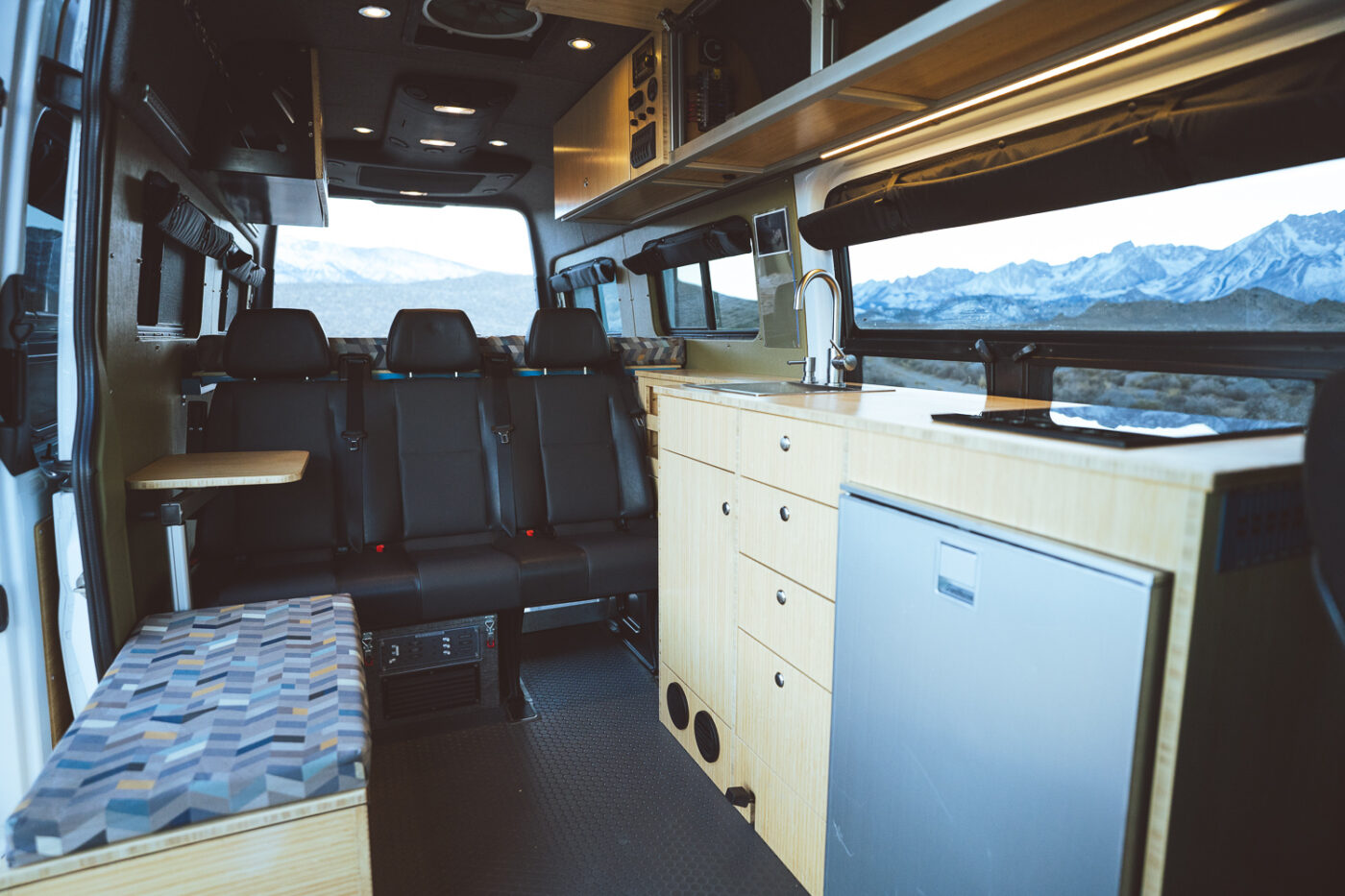

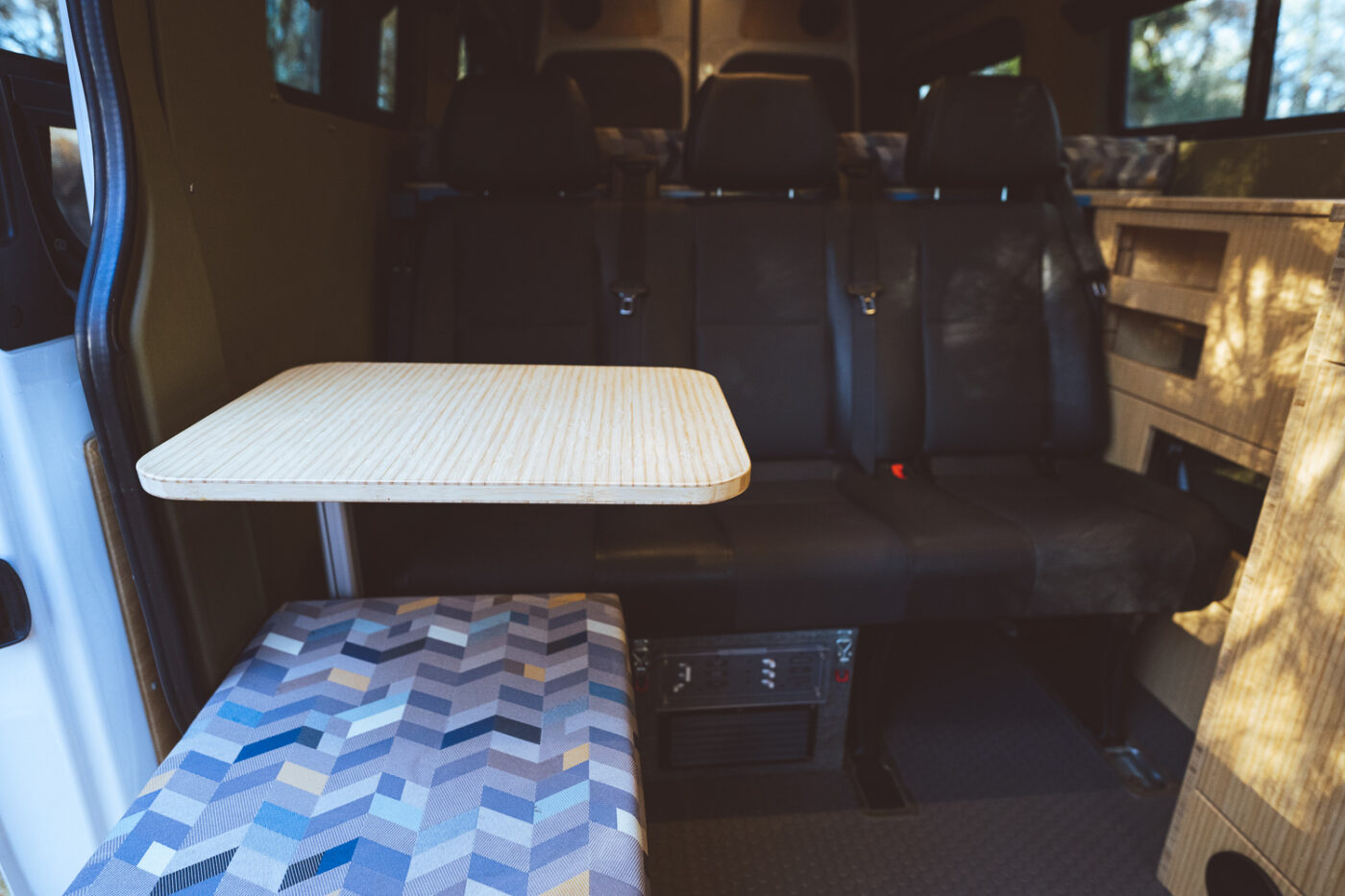

The open layout includes a CNC’ed bamboo plywood galley, milled 80/20 extruded aluminum upper cabinets, five seat belted seats, stowed cassette toilet, lagun table, rotating passenger seat, and olympic queen size bed. The abundant garage space has a pullout drawer that accommodates two modern full suspension mountain bikes, two snowboards or skis and four stackable heavy duty storage bins to keep your gear and activities organized and easily accessible. The open floor layout makes for a highly efficient and comfortable space for cooking, lounging, working remotely, and more.

An Agile Off-road RIP Kit with Koni Coil overs, Deaver Springs, Falcon adjustable shocks, Hellwig sway bar and brand new BFGoodrich KO2 tires make a solid drivetrain for any terrain. 340 watts of solar, lithium batteries, induction stove top, refrigerator, marine wiring, outdoor shower heated by engine heat exchanger make living off grid a breeze. This solid van was built to last balancing a combination of functionality and comfort for a lifetime of adventure.

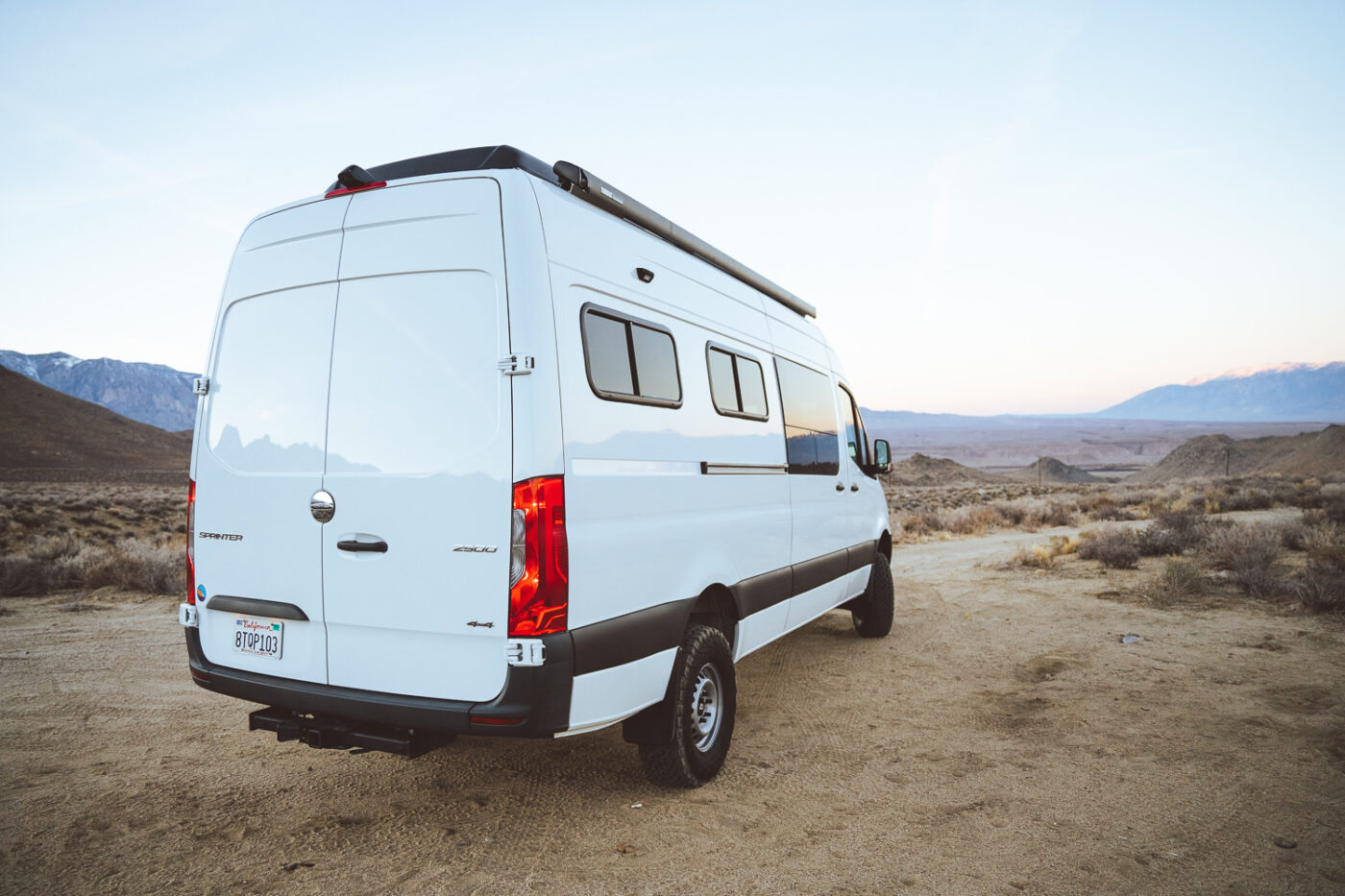

2019 Freightliner Sprinter 2500 4×4

Meticulously maintained

30,000 Miles

Oil Changed every 10k miles

Engine Air filter changed at 20k miles

Electrical:

Panasonic 340 Watt HIT Panel

Victron SmartSolar MPPT 100/30 Solar charge controller

4 Battle Born 100 Ah LiFePO4 batteries

Victron BMV 712 Battery Monitor with Bluetooth

Sterling BB1260 60 Amp DC to DC charger

Magnum MS2012 2000 Watt Inverter/Charger with ME Series Remote

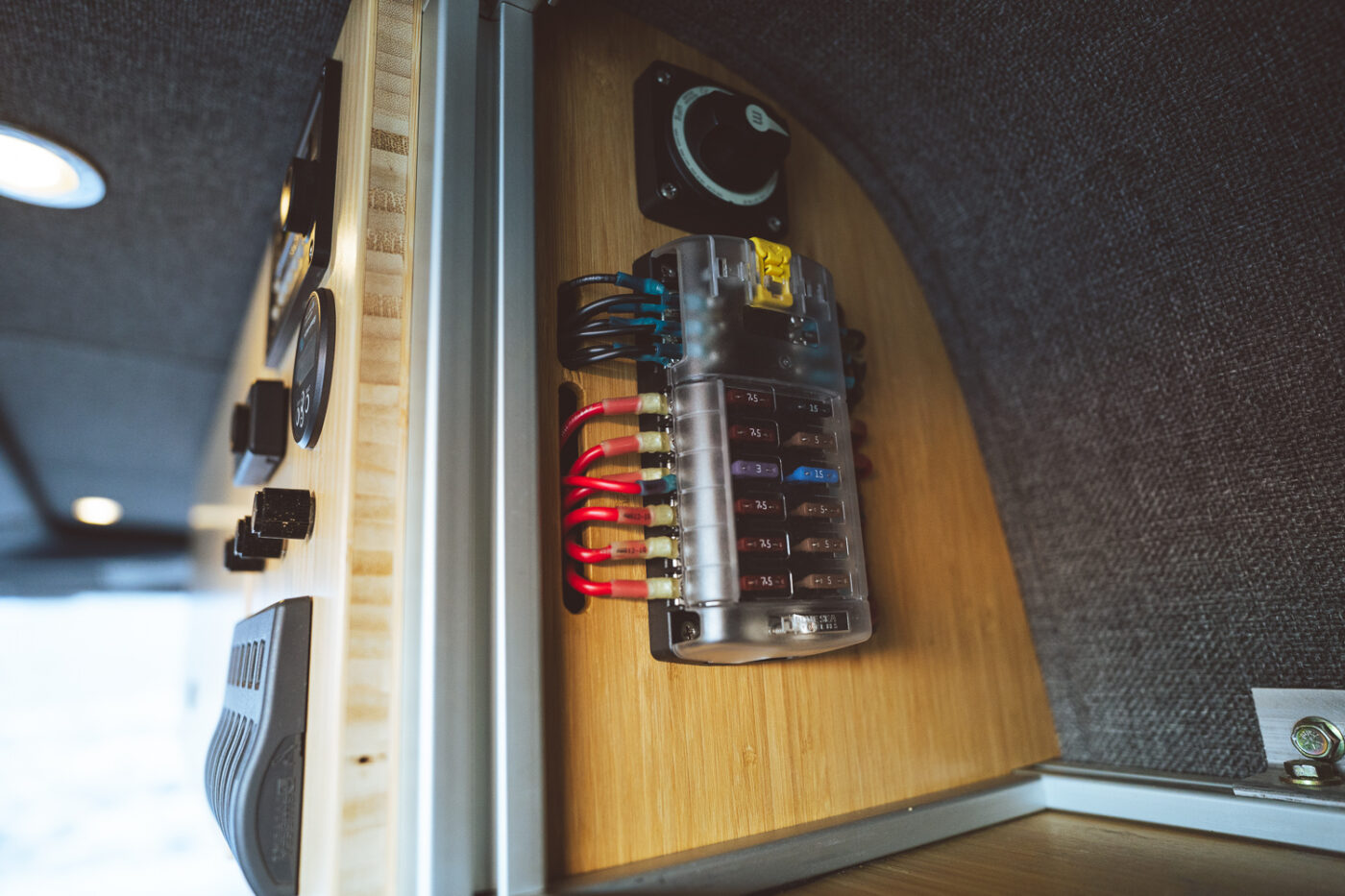

Blue Sea AC panel, fuse blocks, circuit breakers

Ancor Marine Wire

2 Port USB Charger above sink

3 GFCI 120 V AC power outlets

8 Imtra Ventura Marine LED lights

Rigid Amber Scene lights

Max Air Fan

Dimmer Switches

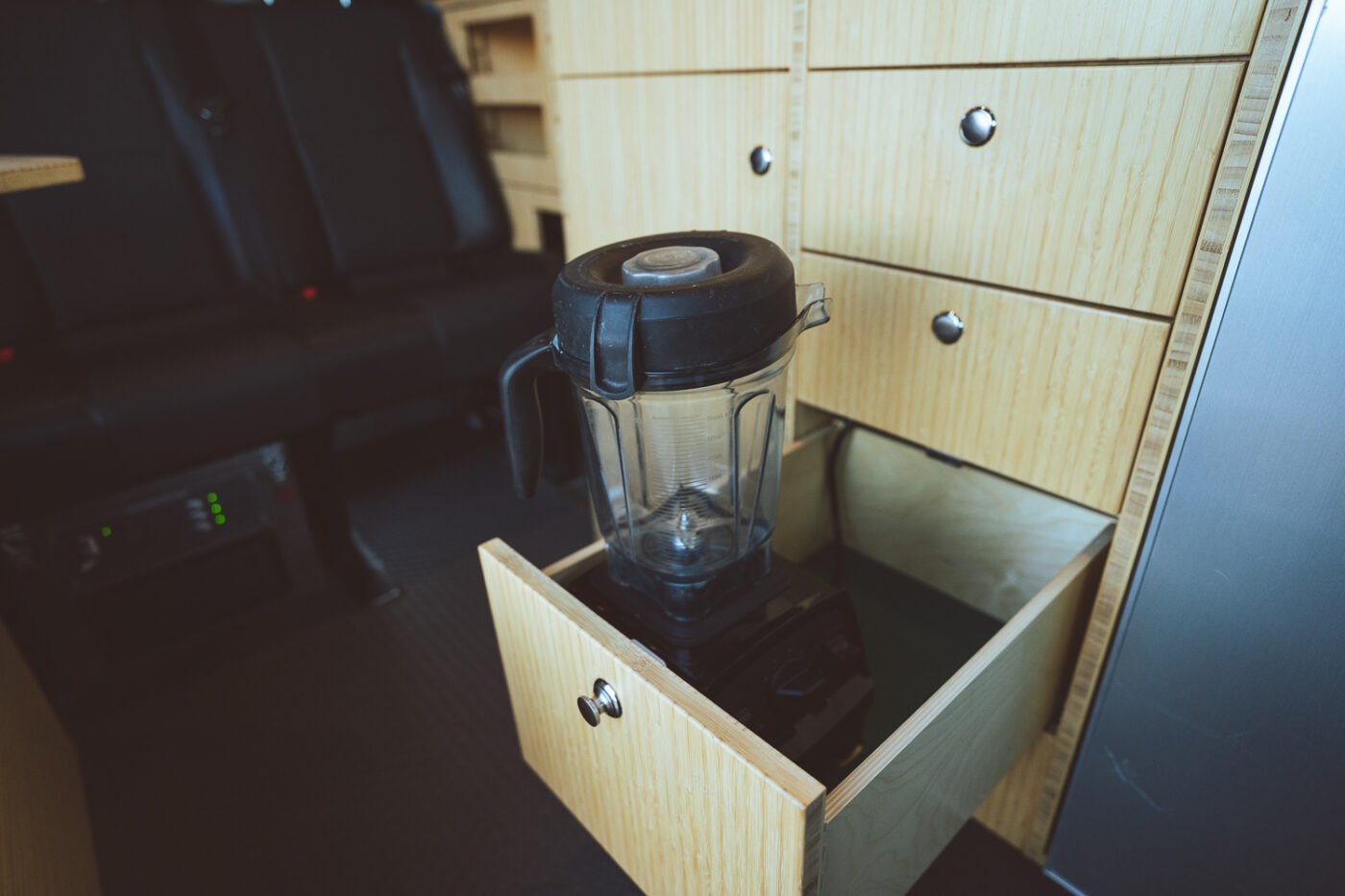

Vitamix E310 blender

Espar D4L Diesel Heater with Easy Start Pro Timer

All wired by professional electrical engineer at Sunchaser vans

Plumbing:

Exterior Shower

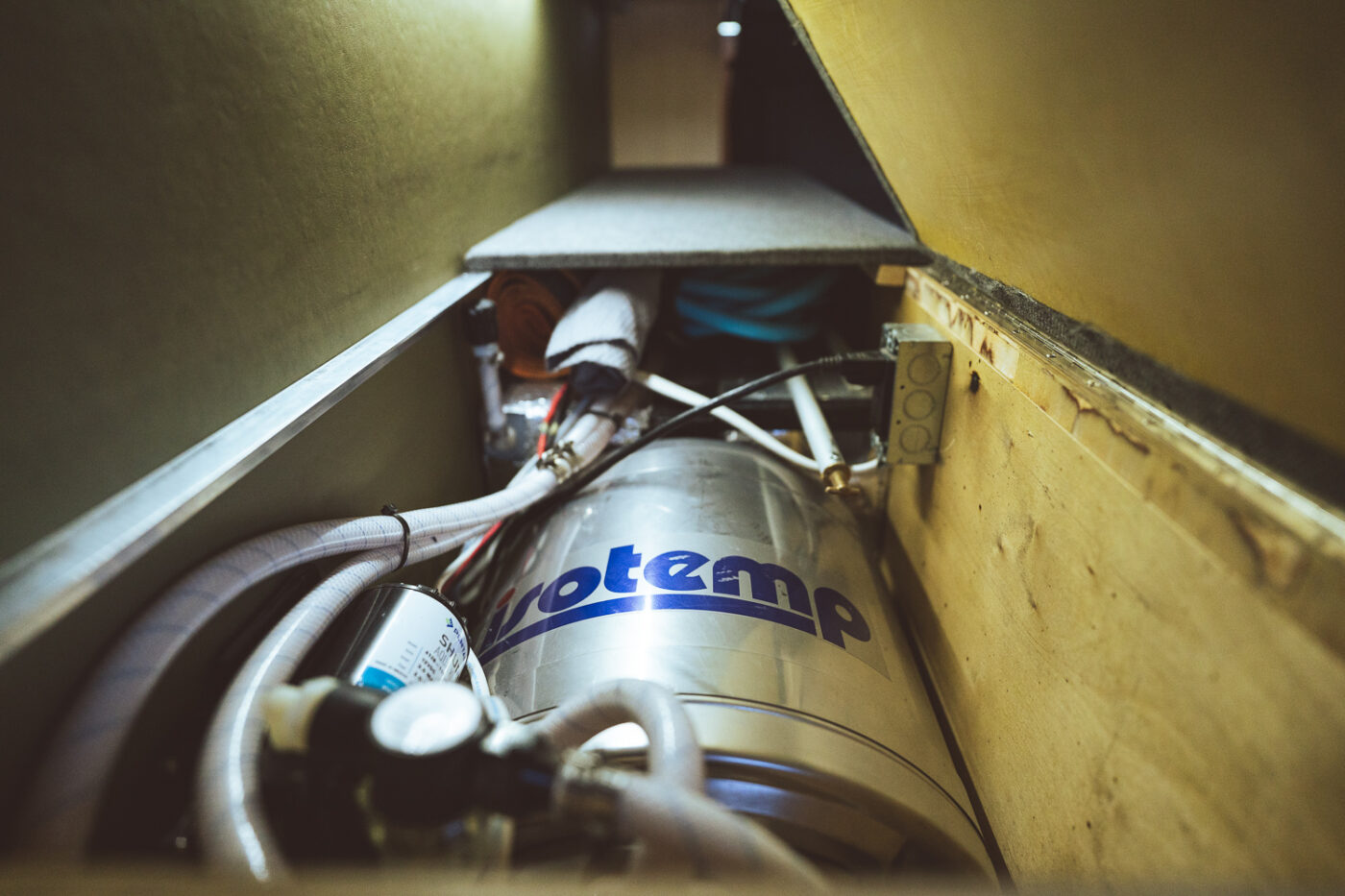

Isotemp Basic 6.4 gallon water heater runs off AC or Heater Exchanger of engine

32 gallon fresh water tank

8 gallon gray water tank

2.5 gallon per minute Shurflo water pump

Whale Gusher MK III foot pump

Sierra International Tubing

All internal plumbing for winter usage

Materials:

Baltic Birch Plywood subfloor and walls coated in Deft polyurethane

NVX Butyl sound dampening bathtub floor, majority of all walls

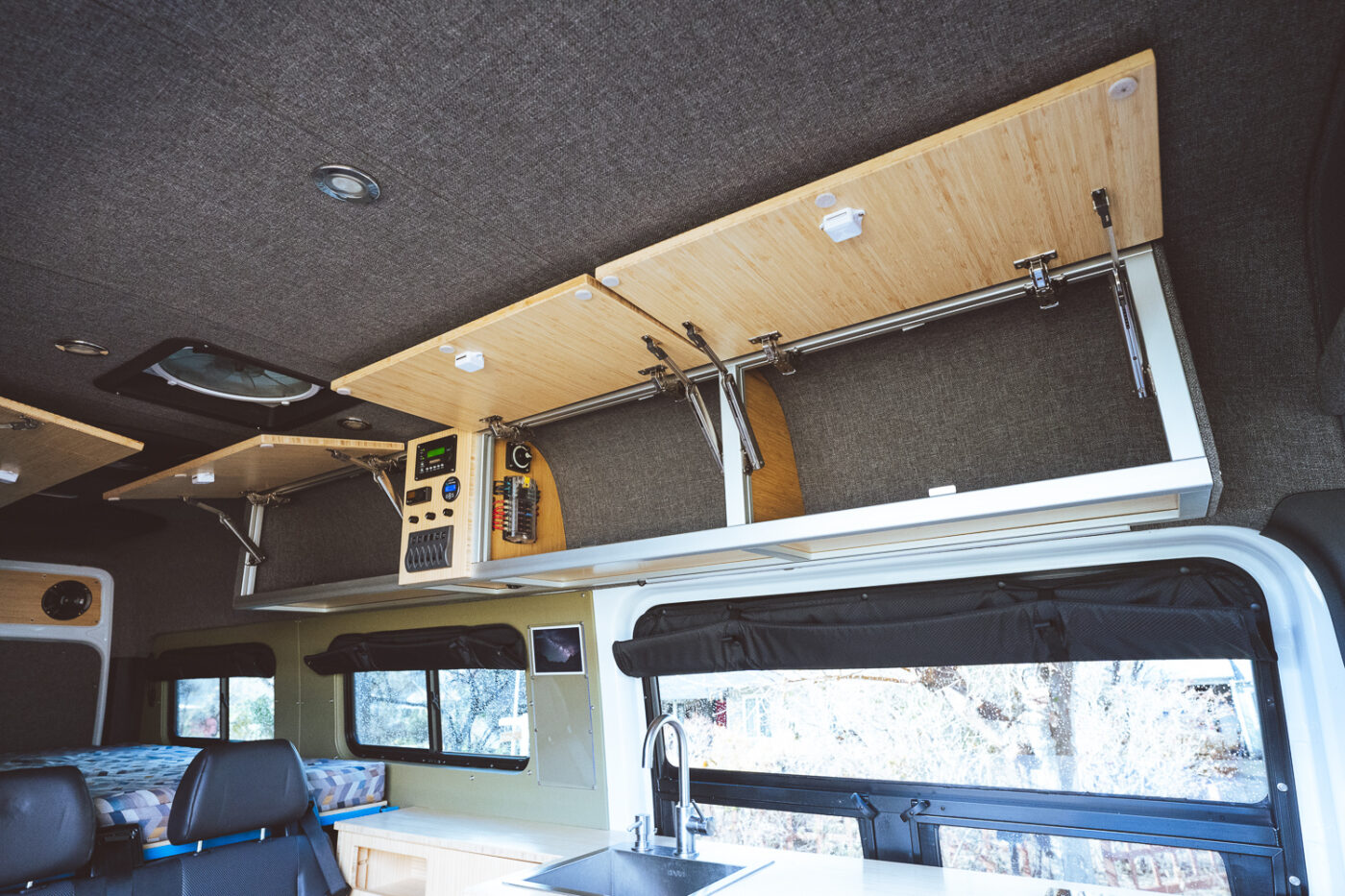

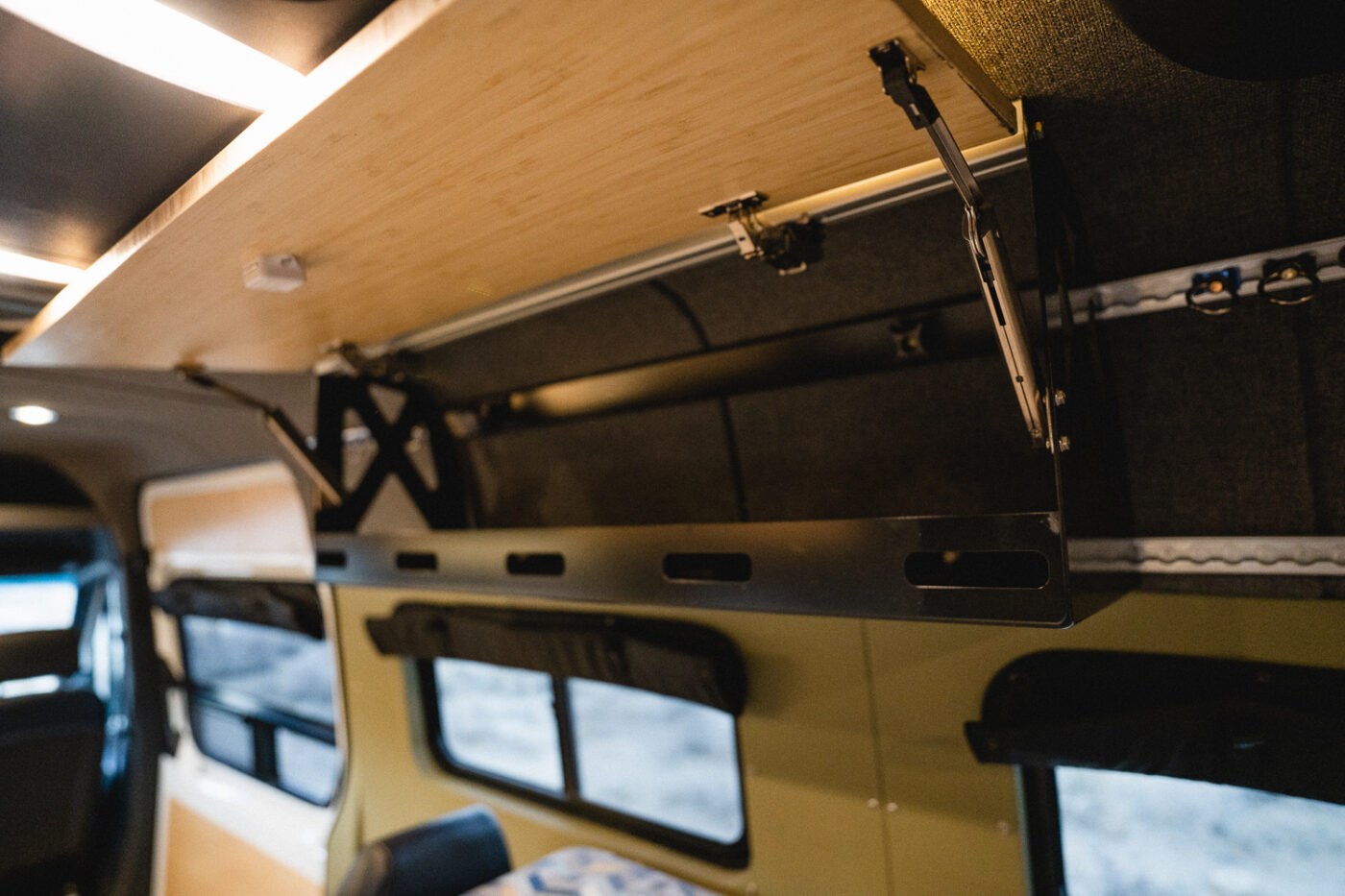

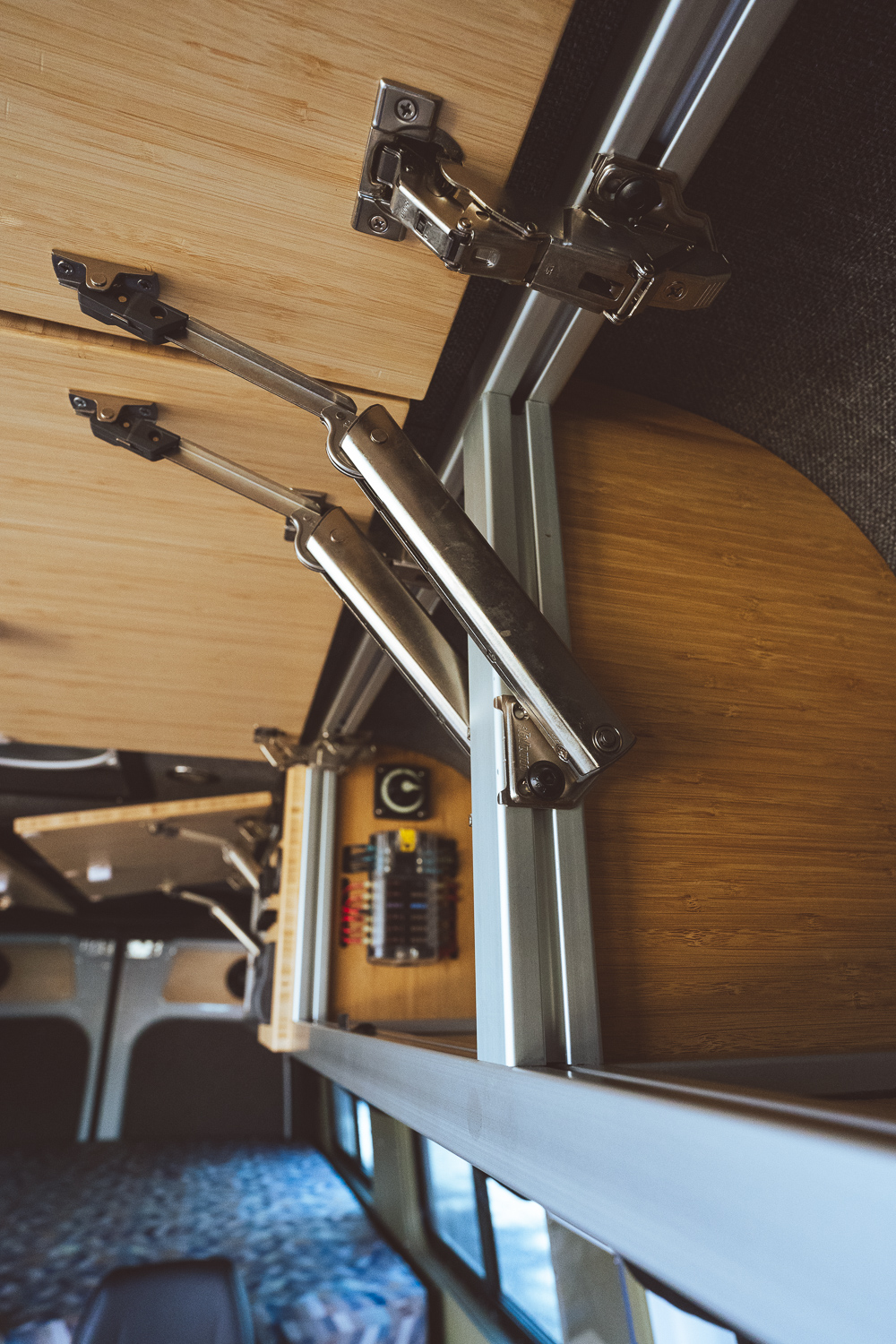

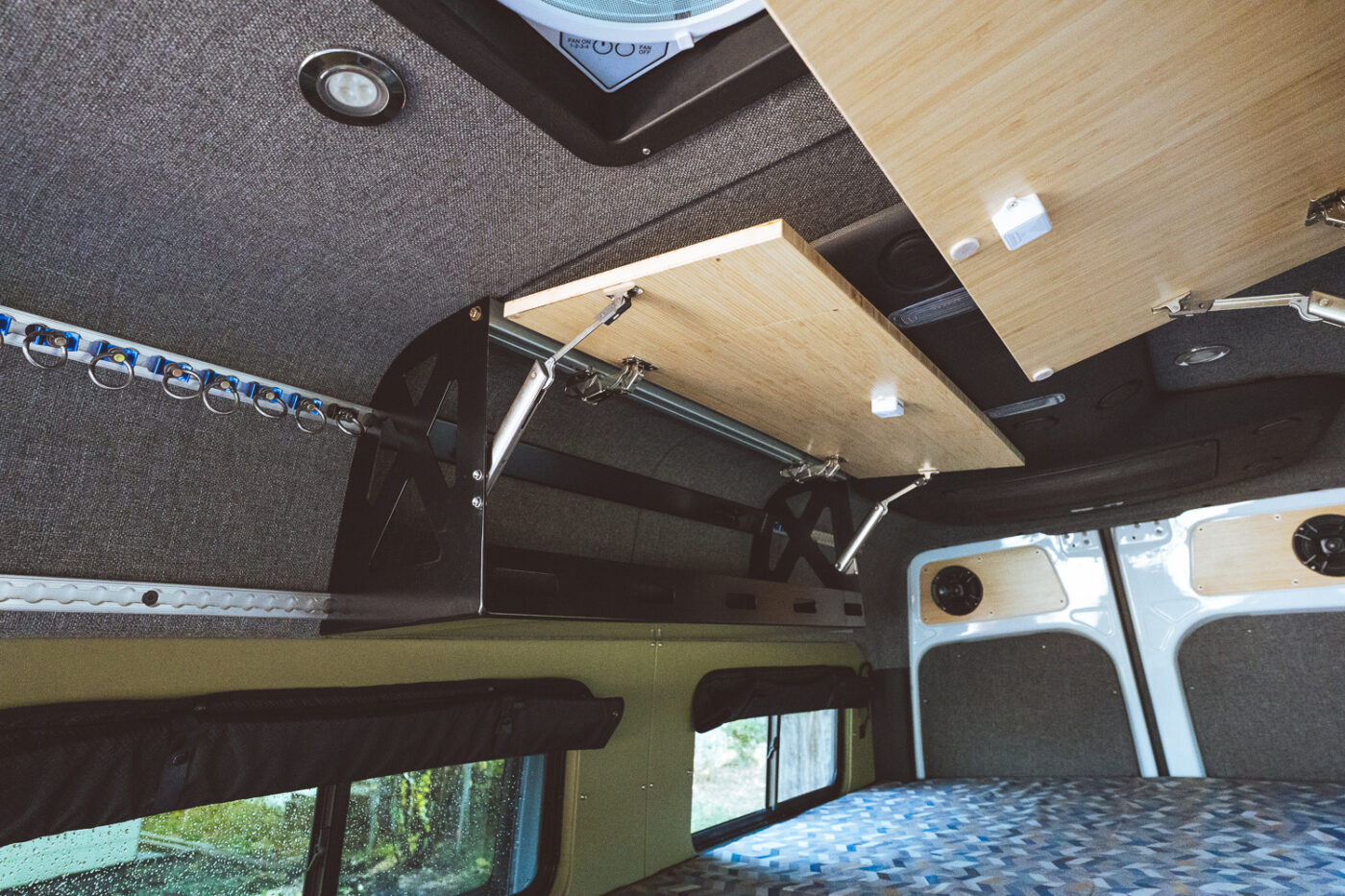

80/20 Aluminum Upper cabinet with milled hardware

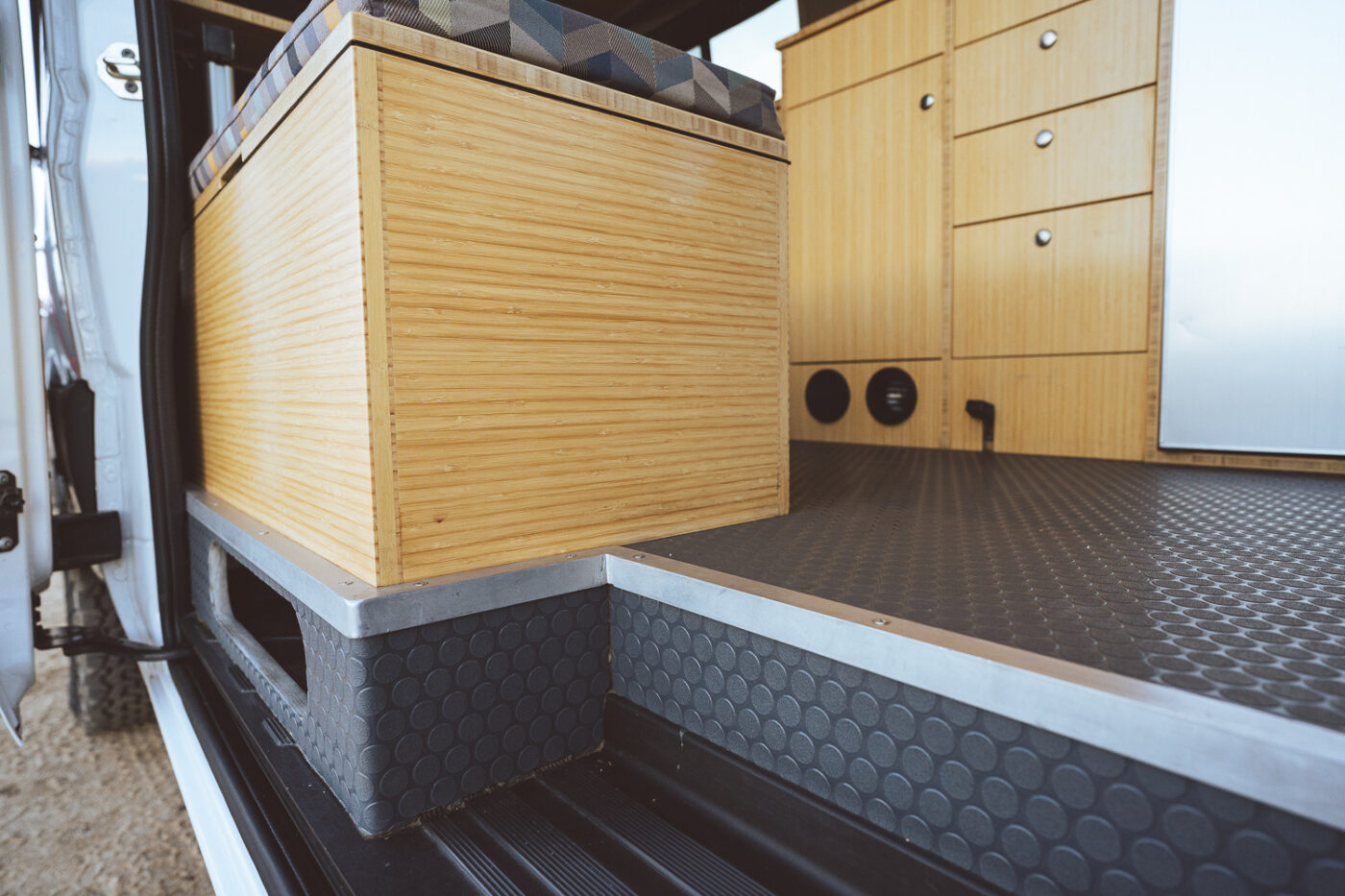

CNCed 3/4″ bamboo plywood galley with ample storage for kitchen items and food storage

Heavy Duty Blum cabinet hardware

Sea Dog stainless steel button latches

Loncoin II featherweight aircraft flooring

3M Thinsulate insulation

Parallel L track on entire passenger upper wall for hanging gear/jackets/custom aluminum cabinet

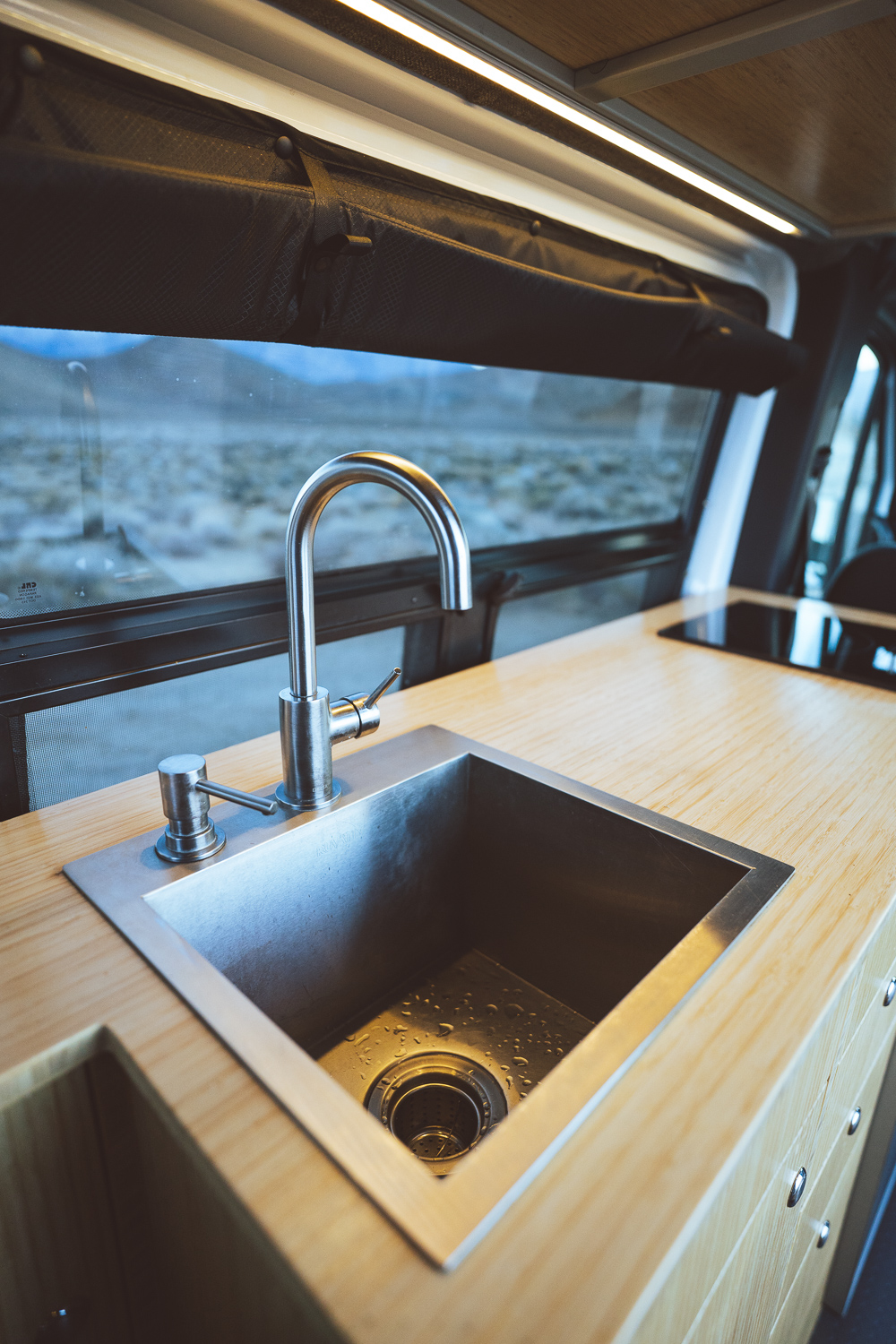

Deep Ruvati Sink

Delta Faucet

Suspension:

Koni Heavy Duty Struts with Agile Coilover kit and neoprene seal savers

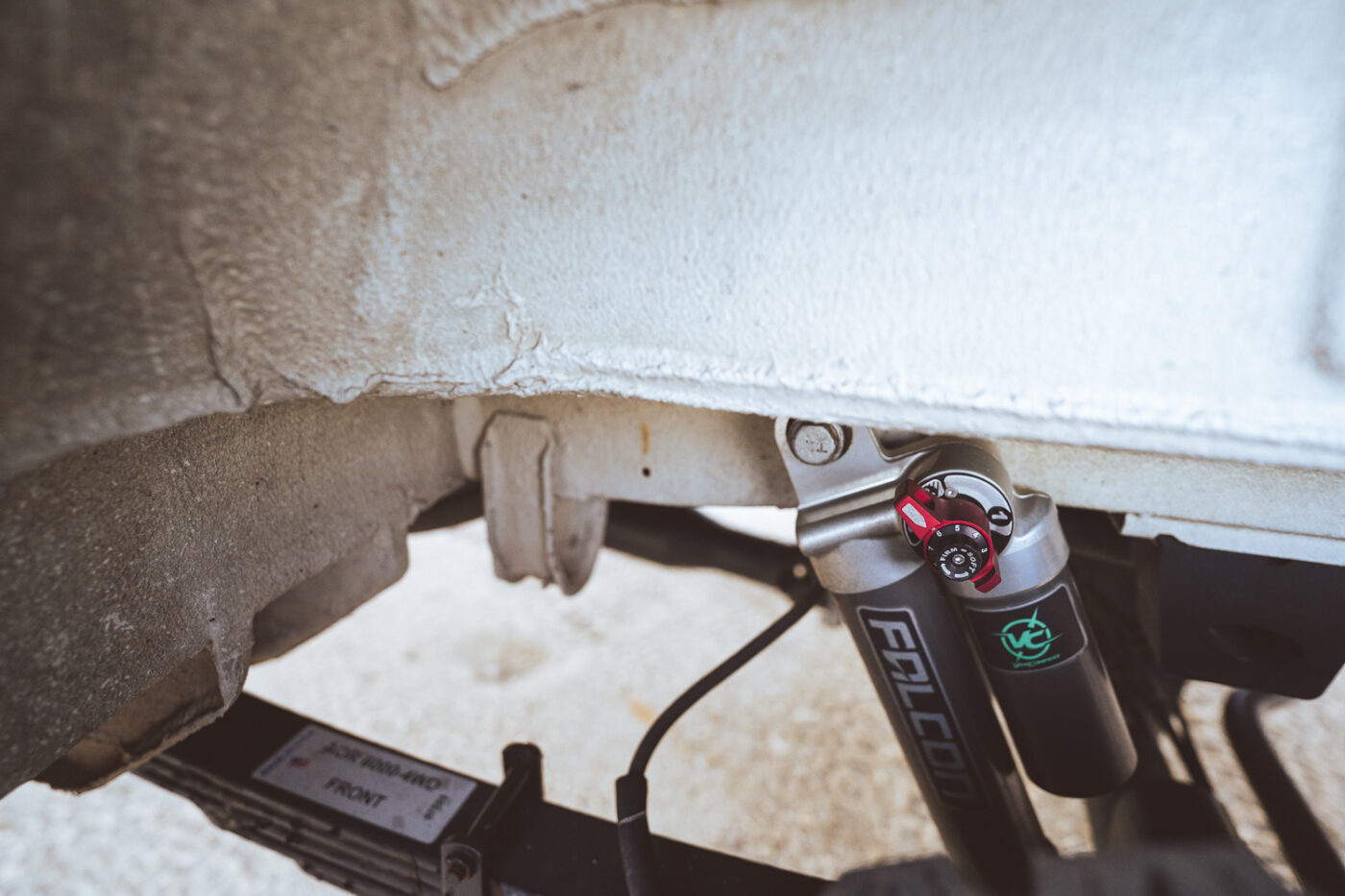

Falcon 3.3 SP2 Fast Adjust rear shocks

Deaver Leaf Springs

Hellwig Heavy Duty Sway bar

Agile wheel spacers

Agile front Fender Kit

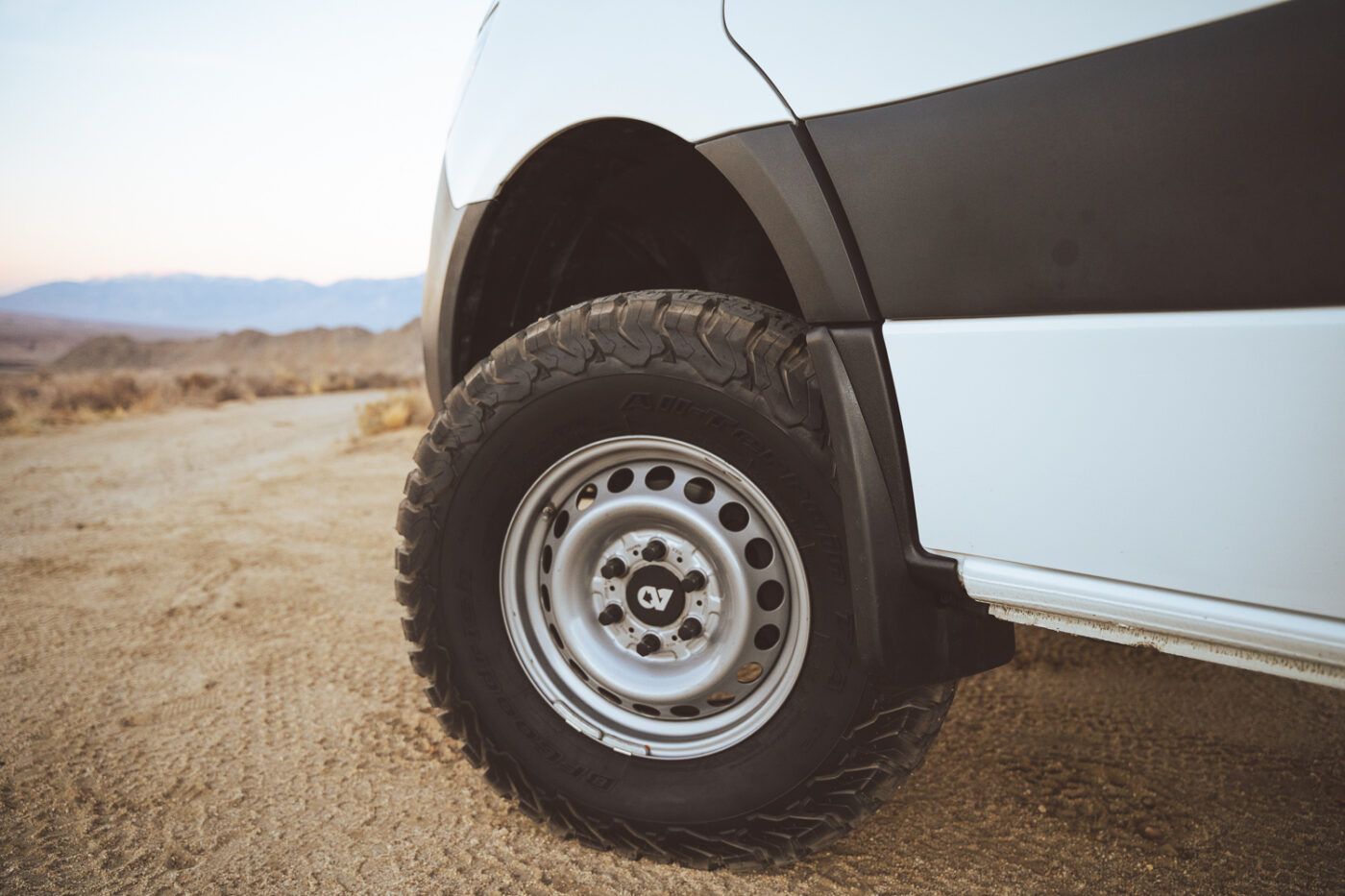

New BFGoodrich KO2 265/75/16 with 500 miles of wear

Alignment preformed 500 miles ago at Stability alignment

Futures:

10ft Manual Yakima Awning

Isotherm Cruise Freeline 115 Refrigerator/Freezer

Removable surf racks

Mercedes OEM Air Conditioner

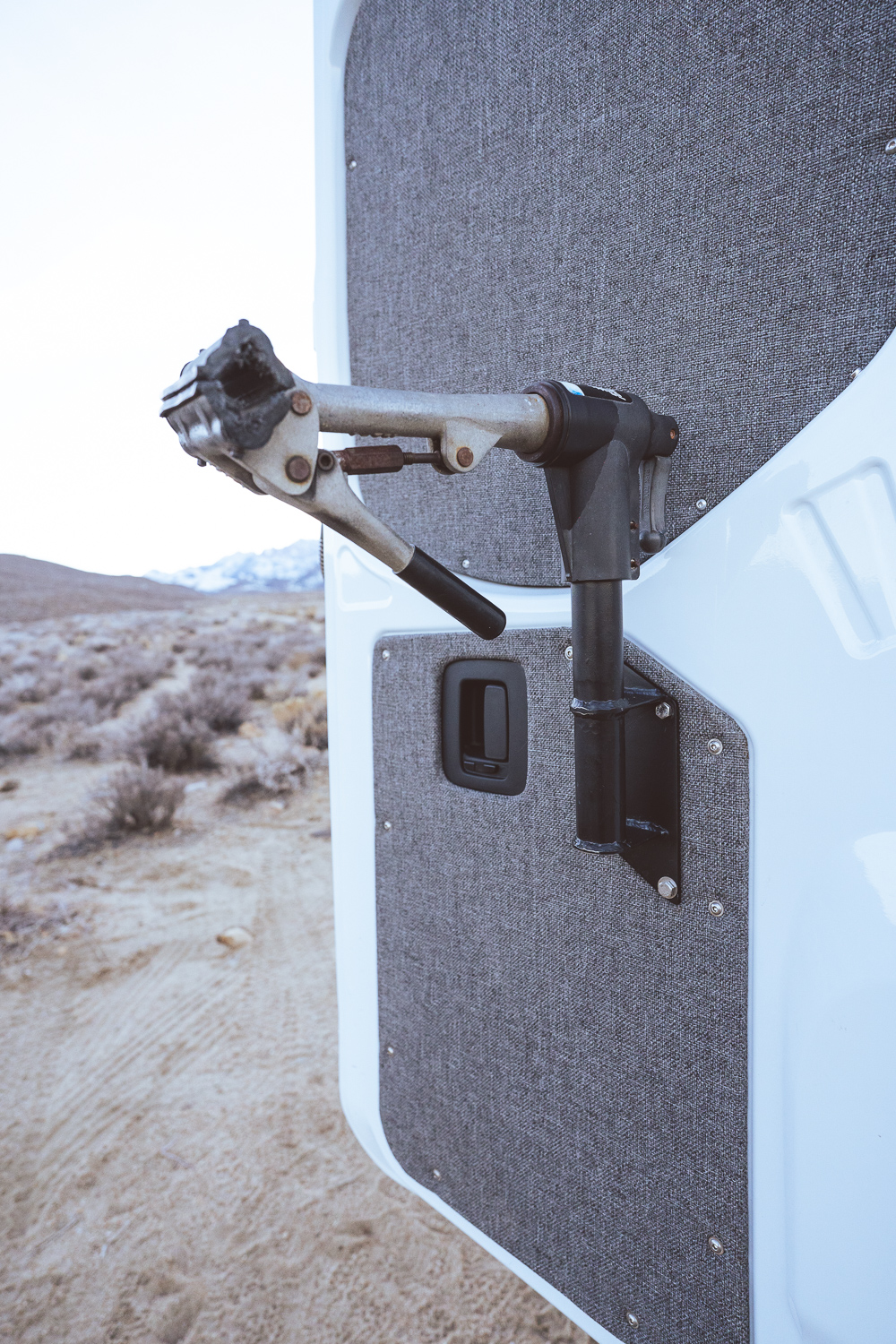

Park tool bike stand attached to rear passenger door
