Year: 2019

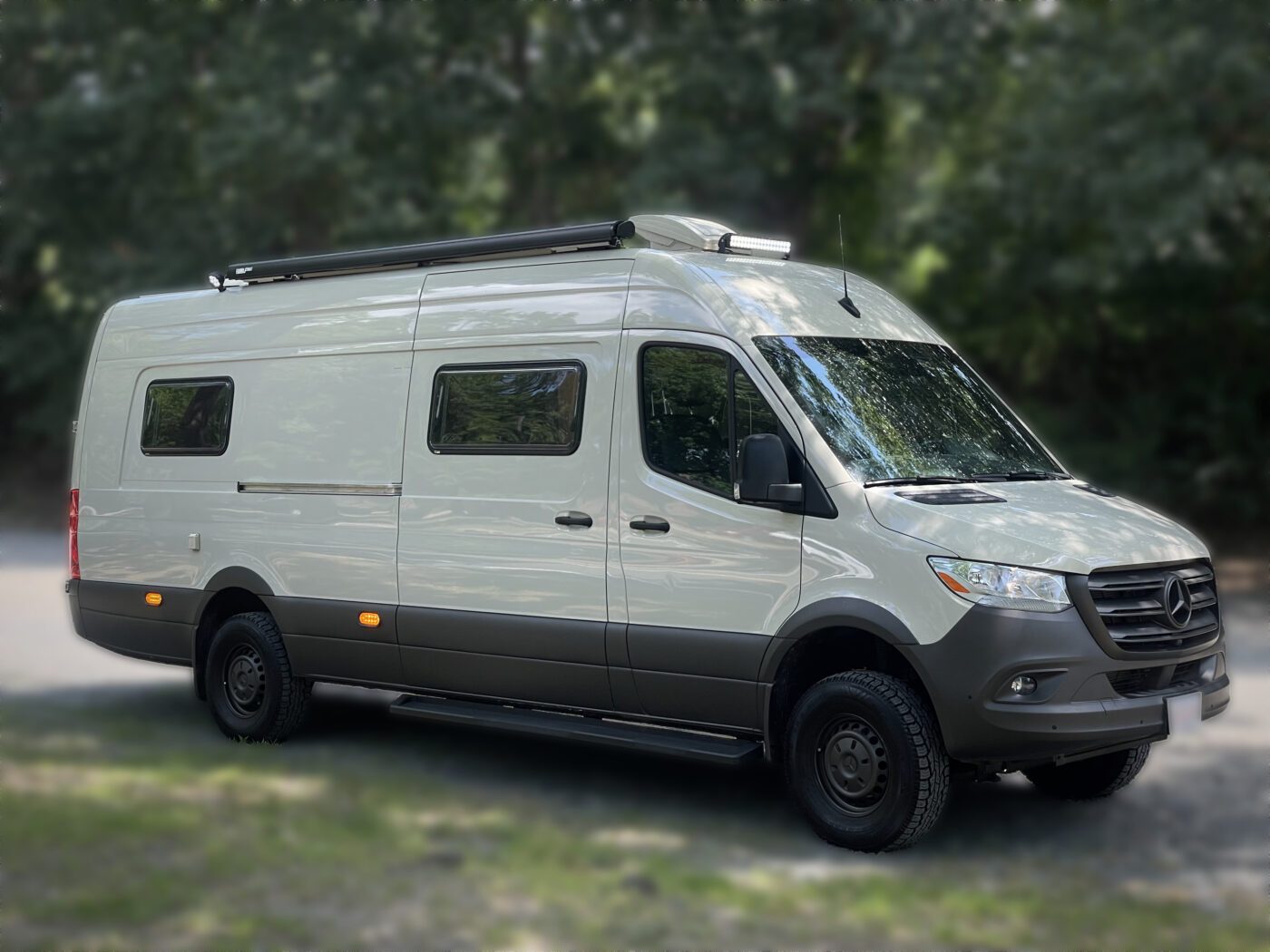

Make/Model/Color: Mercedes Sprinter, 170 ext., High Roof, Stone Gray
Factory Options: All major factory options sans electric sliding door. RennTech chip boosts HP by 80 and torque by 97 ft/lbs.
Pedal Boost eliminates slow accelerator response.
Warranty Extended: 100,000 mi.
Mileage: 7,391
Drive: 4×4
Title: Clear
Transmission: Automatic 6 speed
Fuel: Diesel
Seating w/ belts: 2
Sleeps: 2
Build: 4 season
Price: $145,000 (Will credit back $500 for gray water tank and installation)

– Factory Features
– Back-up camera
– parking package with 360 degree camera
– MBUX intelligent Navigation
– Swivel passenger Seat
– Swivel drivers seat
– 100,000 mile / 5 year extended warranty
– active brake assist
– active lane assist
– comfort driver’s seat package
– comfort passenger’s seat package
– heated seats
– leather steering wheel w/ multifunction
– heated exterior mirrors
– blind spot assist
– attention assist
– tray for wireless charging of smart phone
-10.5″ touchscreen
– Acoustic package
– Traffic sign assist

ELECTRICAL CABINET (system design by licensed electrical engineer)

Solar: 5, Newpowa, 120w/24v solar panels (600w)
Shore Power: 30A
Additional Charging: Alternator w/ inverter
Victron: 100/30 MPPT
Victron: Lynx Distributor
Victron: 3,000w/70a MultiPlus inverter
Victron: Cerbo GX
Victron: VE Bus to USB (for laptop access)
Victron: VE Bus Smart Dongle
Victron: BMV 712 battery monitor
Storage Battery: Tesla S, 5.2 kWh (233Ah) module with cell/battery monitoring for over/under charge and temperature
Cabinet Ventilation: Automatic cooling fans, H2O ingress alarm, all components isolated via breakers or switches for maintenance

OUTLETS/CHARGING 6, USB; 6, 110v (2 GFCI in galley)

LIGHTING

Ceiling: 12, LED puck lights w/ dimmers. Birth and galley zones
Under Counter: 2, LED strip lights w/ dimmers in galley
Reading: 2, LED flex necks w/ dimmers at bedside
Garage: 2, LED strip lights over sliding storage trays
Exterior lights: 3, LED spotlights (rear and sides) controlled from galley or birth, 1, 24″ Off Road Bar Light above cab

COOLING/VENTILATION

Fresair: Evaporative cooler over birth
Maxxair: Maxxfan fan Deluxe, 10 speed
Maxxair: Maxxdome Plus, shower fan with light
Sirocco II: Gimbaled swivel interior fan

WATER SYSTEM

Water Tank: 65 gal. drinking water capacity (35 gal. fixed storage with 6 portable, collapsible 5.2 gal. food grade containers)
Water Filtration: Apex 6 stage reverse osmosis with UV light and 2.5 gal. storage. Tap at sink
Showers: Interior 32 x 24” Custom tile shower with Kerdi/Schluter system for durability, self-cleaning, retractable shower
door, exterior shower in garage, both with hot water.
Water Pump: SeaFlo series 55 with spare
Plumbing: All hot and cold lines are ½” I.D. braided brewers’ hose, food grade, high pressure, high temp. rated and secured with
metal hose clamps. All connections have shutoff valves on either side of appliance
Water Heater: Bosch Tronic 4 gal. 3000T
Toilet: Cuddy Compo Closet

GALLEY

Van heating syst.: Wallas integrated diesel, marine, 2 burner cooktop/heater. When lid is closed on burners a fan is
activated and it becomes a space heater. Very efficient!
Oven: Wallas diesel marine oven with high altitude switch
Sink: Torva, 15 x 17 x 9” stainless, goose neck swivel faucet with pullout spray head and soap dispenser
Refrig. /Freezer: Nova Kool 6.8 cu.ft., 2 door upright
Food Prep.: 2, separate spacious bamboo counter tops

SEATING

Cab: 2, leather swivel seats w/ lumbar supports, 10-way adj. with extendable leg supports
Dining Table: 48 x 20” bamboo on 2 stage pneumatic pedestal. Seats 4

SLEEPING

Dining table collapses down converting to 2 possible sleeping arrangements: a single long bed (87 x 24”) or a bed for 2 sleeping the width of the van (68 x 53”). Seating cushions of 4” foam slide together to form bed. Coverings are commercial suede-like synthetic with high wear rating and treated to repel spills

INSULATION/SOUND

All van interior surfaces and cab sprayed with 2 coats Lizard Skin heat attenuating paint, sound dampening with Noico 80 mil.
matt, insulated with combination of mineral wool and polyisocyanate, all covered with Reflectix and seams sealed with aluminum
tape.

FRAMING

½” Baltic Birch joined with pocket screws. All modules attached to floor and/or van wall supports. Ceiling, rear interior doors and
above cab storage in black trunk liner material

FLOORING

9 ply Mercedes plywood floor with plastic coating. Companionways covered in 1/2’” rubber mats for cushioning and ease of
cleaning. Removable

STORAGE

Above cab, 2 bookshelves in sleeping area and garage has 2, 15 x 48” lined sliding trays each with 100# capacity

WINDOWS

Artic 3 position, insulated windows, with integrated screens and light blocking, insulated shades. Cab insulated/reflective window
covers & curtain

AUDIO

4, Kenwood 9’ speakers (2 front, 2 rear) and Kenwood ExCelon ddx396, 6’2” DVD receiver with Bluetooth

BUG SCREENS

No-see-um bug netting for rear doors and slider. Slider opens and closes from the center with magnets

AWNING

Fiamma F80s

TIRES

Nokian 245/70r/16 all season

VAN EXTERIOR

Rear ladder, running boards at all doors, 2 running lights on each side per European Sprinter version, custom Plasti Dip paint on
all trim and bumpers, wheels and wheel well flares.
