Call Ken @ 703-626-0690
I am NOT a DEALER
I am a PRIVATE SELLER
I did the complete Design, Engineering and Build in it’s entirety myself.
2019 Ram Promaster 2500
159″ Wheel Base
Engine size: 3.6 Litre
Towing capacity: 5,100 lbs
Dimensions: 213″ (17.5′ ) L x 81″ W x 89″ H
Payload: 4,256 lbs
Curb weight: 4,644 lbs (Factory Pre Conversion)
Gross vehicle weight rating: 8,900 lbs
Fuel tank capacity: 24 gal
Tilt/Telescoping Steering Wheel
Infotainment System Display
Boise Stereo Sound System
360* Swivel Captain Seats
Low Mileage ONLY 15,000 miles
The Van is DESIGNED with an OPEN FLOOR PLAN to OPTIMIZE versatility and provide MULTI function use as well as enable optimal URBAN STEALTH capability and LONG TERM OFF GRID AUTONOMY.
The Roof has NO DRILLED HOLES and NO CUT OUTS, so it CANNOT LEAK!
Solar Panels are attached to the roof using MARINE GRADE ADHESIVE (more description below)
Custom Conversion required
1,800 manhours over 8 months
$10,000 Exterior Custom Paint Job
3D Metal Holographic Rainbow Metal Flake
$2,500 Custom Rims and new Goodyear All Terrain Tires
Custom Running Boards all the way around
Custom LED under Lighting and INSIDE
$6,000… 620 AMP HOUR Lithium Ion Battery with built in Battery Management System
RENOGY 50 AMP DC to DC DUAL INPUT MPPT Charge Controller that charges the 620 Amp Hour Lithium Ion Battery either/or BOTH at the SAME TIME from the 400 WATT SOLAR PV Panels or at the same time from the ENGINE ALTERNATOR while the ENGINE is running…with this set up, you are fully AUTONOMOUS and can be OFF GRID for weeks!
400 Watts of Thin Film Solar PV Panels attached to the roof using Marine Grade Adhesive
4000 WATT Continuous PURE SINE WAVE / 8000 WATT PEAK 12 Volt DC to 120 Volt AC Inverter. This inverter, Combined with the 620 AMP HOUR Lithium Ion Battery, plus, the RENOGY 50 AMP DUAL INPUT DC to DC MPPT Charge Controller and, the 400 WATTS of SOLAR, COMBINE to provide a COMPLETE Power Plant capable of supplying ALL THE POWER required to run the AC System (more details and a video about the AC in a moment) and ALL of the ELECTRICAL appliances, HOT WATER Heating and cook ware….with this set up, you are fully AUTONOMOUS and can be OFF GRID for weeks!
VICTRON 25 AMP Shore Power Charging System provides a THIRD option to CHARGE the 620 AMP HOUR Lithium Ion Battery.
CUSTOM Built Furniture Grade Mahogany 3/4″ Plywood Cabinets and Full Size Wardrobe Closet
CEDAR Walls and ceiling
The ENTIRE Floor, Walls and Celing of the Van are SUPER INSULATED with up to 3″ plus CLOSED CELL SPRAY FOAM Insulation that provide SUPERIOR thermal R Value over R-20 and tremendous SOUND Attenuation…Here is a video that shows the insulation after completed installation https://youtu.be/lriP8ckvip4

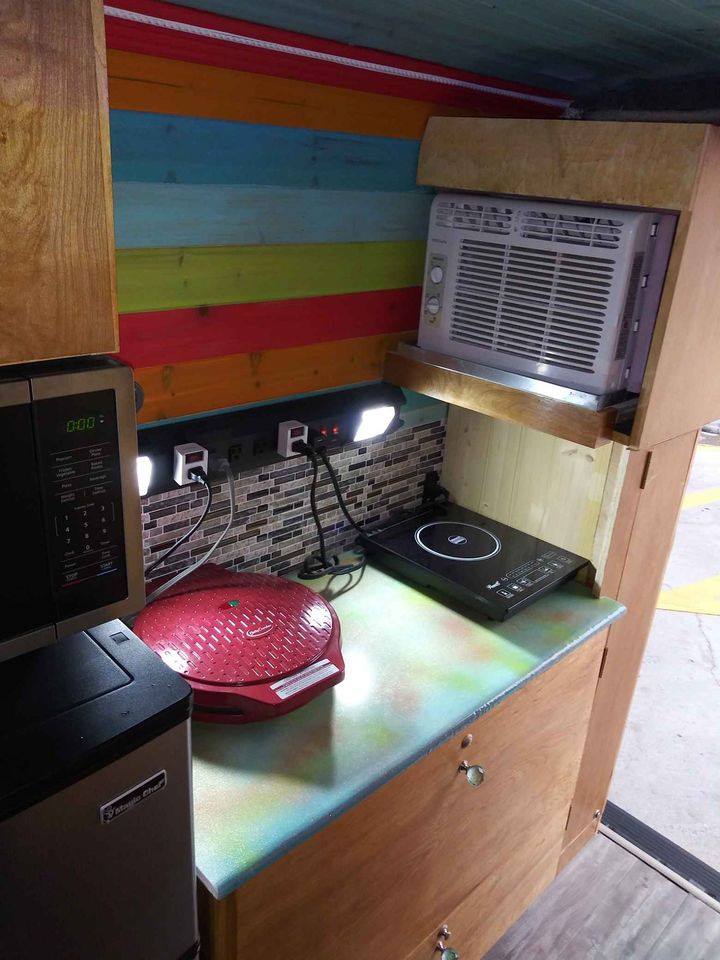

5,000 BTU AC UNIT is the required AC size to cool the normal 150 Sq Ft area in a home, the Promaster Van is just under 100 Sq Ft, I opted to MODIFY a new 5,000 BTU Window unit (450 WATTS is what it consumes) this 5,000 BTU AC Window Unit is sized PERFECTLY as I’ve tested it in the Van on the HOTTEST Summer day in FLORIDA and it really cools and DEHUMIDIFIES the entire Van very comfortably…most Van Conversion companies use a way OVERSIZED 12,000 BTU Roof Mounted AC unit which consumes roughly 3,000 WATTS + and requires cutting a huge hole in the Van Roof there by presenting the likely hood of future LEAKS …this Van has NO ROOF cut outs and NO DRILLED HOLES…thus, CAN NEVER LEAK…additionally, the 5,000 BTU AC Unit MODIFICATION I designed and installed matches the precise LOAD requirements needed to PROPERLY Cool and DEHUMIDIFY the AIR inside the Van, so the system optimizes COMFORT while MINIMIZING POWER consumption and, as well, MINIMIZES the NOISE level by a factor of 3…you can barely hear the unit run. The AC Condenser is located OUTSIDE UNDER neath the Van chassis. Here is a video description of the AC Modification and Install…

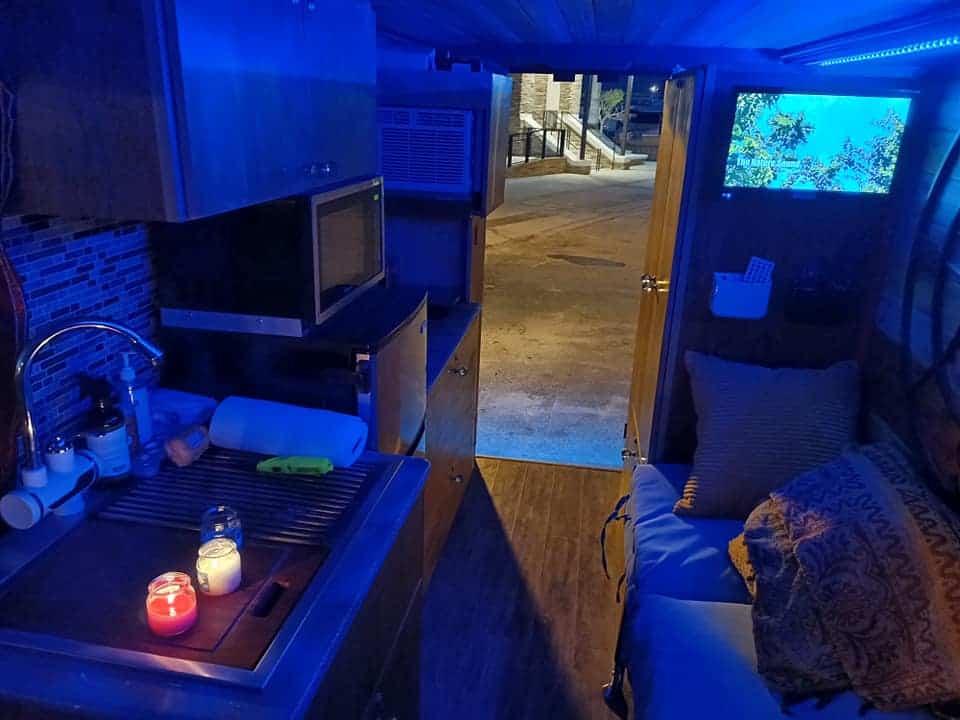

DEEP FULL SIZE Stainless Kitchen Sink with built in REMOVABLE Cutting Board and Vegetable Strainer
6 GALLON WATER RECOVERY Tank under the sink with suction line that pulls the grey water back to the Plumbing Utility Cabinet where it is then CLEANED and PURIFIED through a 3 STAGE Filter and a UV Light system…with this system, 5 gallons of water will last for weeks to enable you to stay OFF GRID longer!
The Sink Faucet is a tall SWIVEL Goose Neck Faucet with a BUILT IN 2,000 WATT 115 Volt AC Insta Hot Water Heater to SAVE on Electricity, you only USE POWER to HEAT the water DIRECTLY at the Kitchen Faucet AS NEEDED
OUT DOOR SHOWER at the Back Door located inside the plumbing utility cabinet with an ON DEMAND 3,000 WATT 115 VOLT AC INSTA HOT Water Heater…you only USE POWER to HEAT the Shower water DIRECTLY AS NEEDED
Cassette Porta Potty
Stowed away in Large Drawer
NO BLACKWATER TO DEAL WITH
NO PROPANE TO BUY (100% Electric)
NO NOISEY GENERATORS
100% ALL ELECTRIC
115 VOLT AC APPLIANCES
1,000 WATT Microwave
4.5 Cu Ft Fridge/Freezer
Induction Cook Top
Betty Crocker Pizza Cooker
Insta Pot Pressure Cooker
Custom Modified Cooling
5,000 BTU Split AC System
Two (2) 350 WATT Plug In Ceramic Core Space Heaters. 750 Watts Total Heat. The formula to calculate the rquired wattage heater needed is:
Formula = 10 Watts per sq ft
75 sq ft x 10 = 750 Watts required
NO CO2 WORRIES!
SPACIOUS OPEN FLOOR PLAN
Bench SOFA swivels DOWN on Hinges against the wall to OPEN the FLOOR PLAN up for CARGO or AS NEEDED
Bench SWIVELS UP to INSTANTLY make into a FULL SOFA or, FULL SIZE BED that sleeps 2 Adults
Both Front Captain Seats SWIVEL 360*
and RECLINE FULL FLAT to make 2 more sleeping bed options
16″ Flat Screen SMART TV with TIVO
With my $10 per month TMobile WiFi Hotspot on my smart phone, I can STREAM Roku, Tubi, Youtube, Netflix, TIVO, everything!
FULL Size Wardrobe Closet to hang and organize your Clothes and accessories
LOTS of DEEP DRAWERS for
COOK WARE and TOOL
