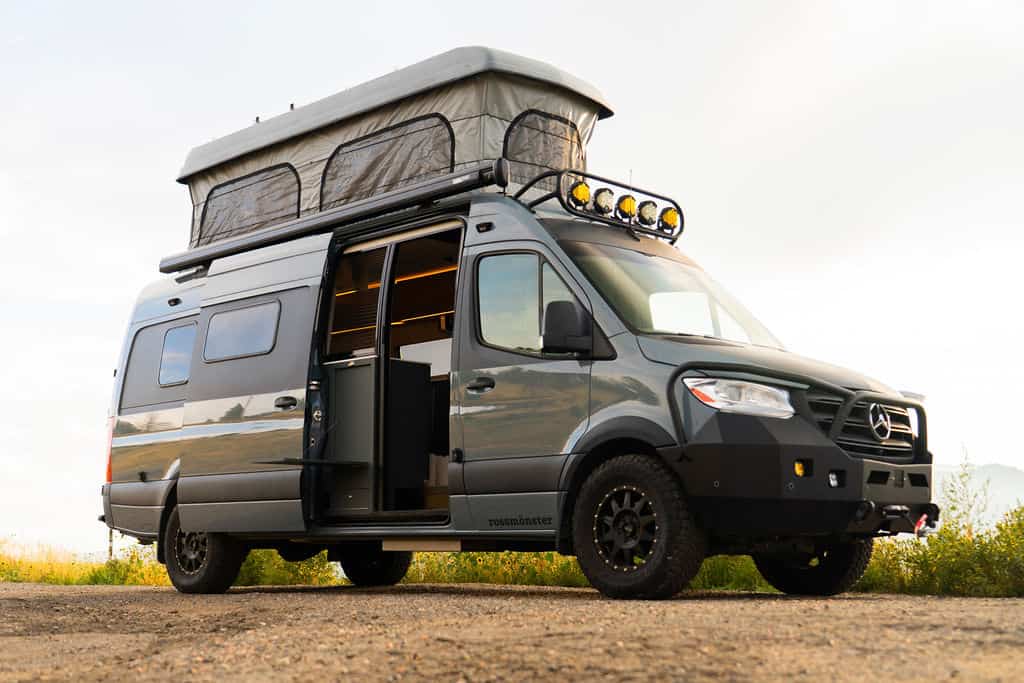

LUXURY NO-EXPENSE-SPARED MERCEDES SPRINTER CUSTOM BUILD – 7500 Miles

This is an extremely unique, no-expense-spared custom build by Rossmonster Vans. Featuring a pop-top, seating for four, a huge battery bank, almost 60 gallons of fresh water, and an upgraded 47-gallon fuel tank, this rig is ready for back-country adventures with no need to restock for well over a week.

If you’re tall, this van will be especially appealing with a ceiling height of 6’6″. And with the pop-top up, it feels cavernous (10-foot ceilings with it raised)!

This is truly a luxury van with all possible upgrades and add-ons applied. Please see the extensive features and specs below.

For a more well-formatted and easier to read version, please see the Google Doc link here:
https://docs.google.com/document/d/1nLcpAcANYf4BGOtUU2P8ggsx4Np6qEy8vGqdOPnVPa0/edit?usp=sharing

VAN SPECS
Builder: Rossmonster Vans
Chasis: 2021 Mercedes Sprinter 2500 170”
Miles: 7,500
VIN: W1Y4ECHY4MT077002

BUILD FEATURES
Pop-top
Sleeps 4, seats 4
Hydronic Heated floors
16,000 BTU Air Conditioner
4-season capable
HUGE 16,500 kWh, 24V battery bank (1,368 Ah equivalent)
50 gallons fresh water storage
Upgraded 47 gallon fuel tank
$8k after-market audio system
Custom Vinyl Wrap

INTERIOR

Power
16,500 kWh, 24V battery bank (12V equivalent is 1,368 Ah)
With heating pads for cold weather operation
3,000 watt Victron inverter
Nations 24V 140 Amp Secondary Alternator
Can fully recharge system from 0%-100%in 6 hours of driving (or idling)

Lighting
Film-grade, low-flicker, high CRI (95+), RGB + WW/CW LED strip lights
Red reading lights at pop-top bed
Red reading lights at couch/bed

Plumbing
57 gallons of fresh water storage
1x 30 gallon interior tank
1x 27 gallon exterior tank mounted in spare tire area
Has heating pad
30 gallons of grey water storage
1x 23 gallon exterior tank with heating pad
Has heating pad
1x 7 gallon exterior tank
Has heating pad

HVAC
Features at a glance
4-season ready
Heated floors
Instant hot water
16,000 BTU Air Conditioner
Heating pads on batteries
Heating pads on exterior water tanks
Heating
Rixen MCS7 hydronic heating system
Cooling
Undermount A/C 16,000BTU 24VDC Air Conditioner
Fan
7500k Maxxair fan

Kitchen
Large farmhouse sink
3x sink spigots:
Regular water
3x filtered water
3x filtered instant hot water
2x induction stovetops hidden under countertop
Exterior drop-down table (behind sliding door)
2x Lagun table mounts
Isotherm Cruise 130 stainless steel fridge

Beds & Seating
Beds
One bed in pop-top
One convertible couch/bed in the main cabin
Comfort upgrades:
3” HD foam + 2” latex topper
Sileather Upholstrey
Cab Seating
Factory swivel seats
Scheelmann Comfort Vario F XXL driver’s side seating
Cabin Seating
Convertible couch/bed with 2x seat belts

Bathroom
Laveo Dry Flush no-fuss toilet
Shower pan built into floor
Shower curtain takes 1 minute to set up

Storage
Rear “garage” with floor-to-ceiling gear storage (2.3’’ deep)
Wrap-around overhead cabinet storage
Bamboo finish
6x drawers

Insulation & Wall Panels
3M Thinsulate throughout the van
Sound Deadening Upgrade
Kilmat throughout the van
Fabric upgrade
Marine grade vinyl wall fabric

Audio
General system info:
1200 Watt 3-way active front-stage with 12” subwoofer
Speakers
Jehnert Sound Design 1” tweeter
Jehnert Sound Design 3.5” midrange
Dynaudio 650 6” woofer
Hertz MIlle 12′ subwoofer
Jehnert Sound Design custom A-pillar speaker housing
Custom Subwoofer Enclosure
DSP
Helix DSP.3S
Amplifiers
Helix M Six 6-channel 600 watt amplifier
Gladen 600 watt mono D class amplifier

WiFi
Starlink AND dual Cellular moden
Antennas mounted on roof

Misc Upgrades
Custom insulated window covers/shades for windshield and cab windows
Insulated blackout soft partition between cab and cabin

EXTERIOR

Engine
Compustar/Drone Mobile Remote Start
Mid-City Engineering high-idle kit
Rentech engine tune
Pedal tune
Engine pre-heat from Rixens heating system

Suspension
Van Compass Stage 5 system with 2” lift
Sumo Springs bump stops
Agile off-road rear 7 leaf spring upgrade

Wheels & Tires
5x Method 301 Wheels 17”
Toyo Open Country A/T3 Tires
Terrawagen mondo tire kit
Terrawagenfender flare kit

Body
Pop-Top from Colorado Camper Vans
Sliding screen door
Skylight
6x arctic tern windows with integrated window screens and blackout shades

Lighting
5x 90 Watt, 7” round LED lights
3x Amber + 2x White
2x Baja Squadron Sport Driving/ Combo LED lights, White
2x baja Squadron-R Sport, Pair Wide Cornering, Amber
4x Rigid Industries Amber Scene Lights
Baja Reverse light kit

Hardware
Upgraded 47 gallon fuel tank
Aluminess front bumper
Rugged Design Conecpts rear bumper
Owl Vans ladder & spare tire carrier
Fiama Awning
Warn VR EVO 12s 12,000lbs Synthetic Winch
ARB Air Compressor
Upgraded horn
Unistrut roof rails for attachment of future storage

Vinyl Wrap
Matte black vinyl wrap over windows and hood
