1995
$29,900

Ashland
, Oregon

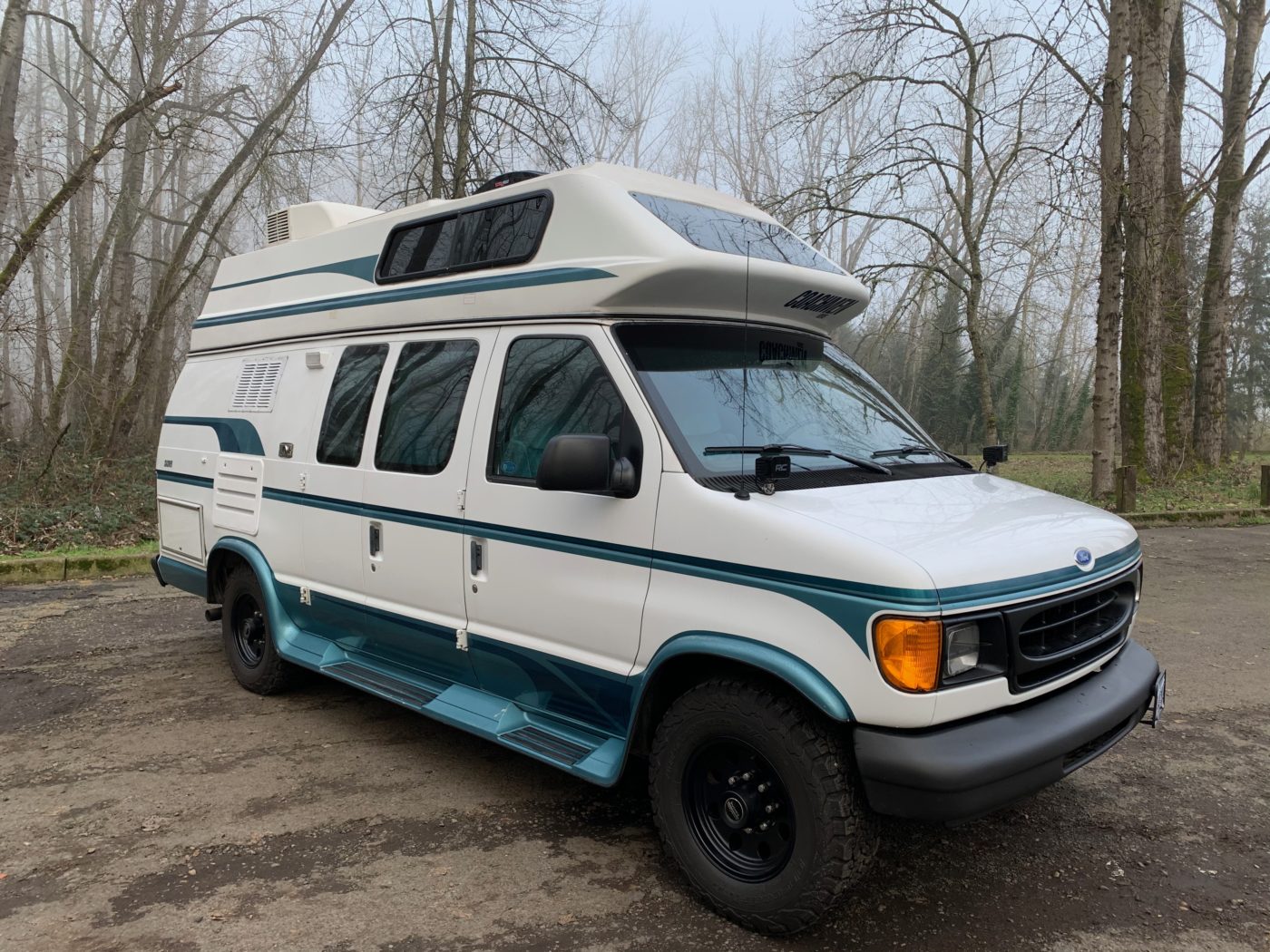

Originally a Coachmen RB19, this 1995 E250 was recently restored by me and built to be my second rental van (we are now moving back East). It features an updated interior, new Bilstein suspension, upgraded wheels and tires, and much more. The engine is very clean, runs good, and has 60k original miles.

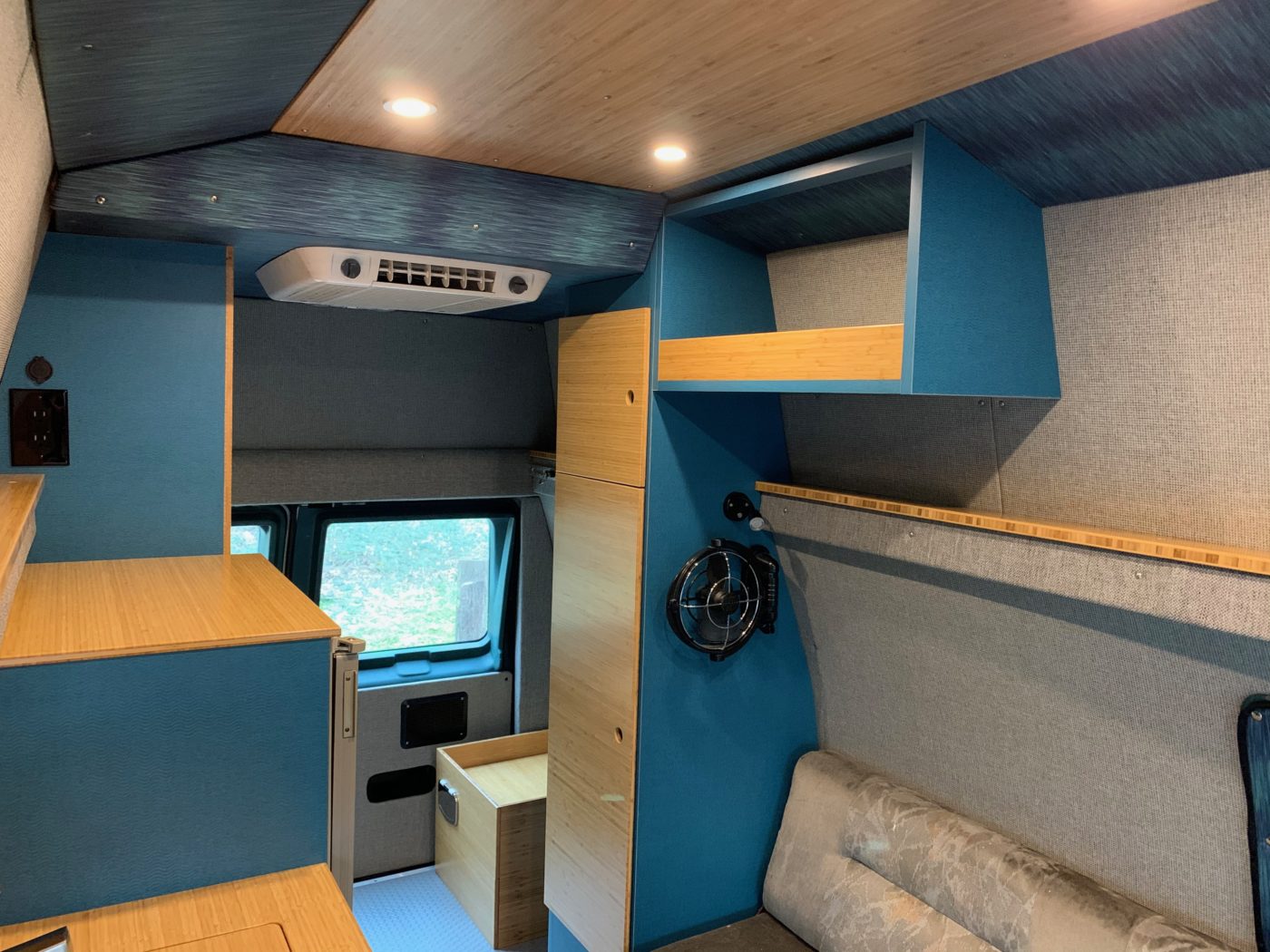

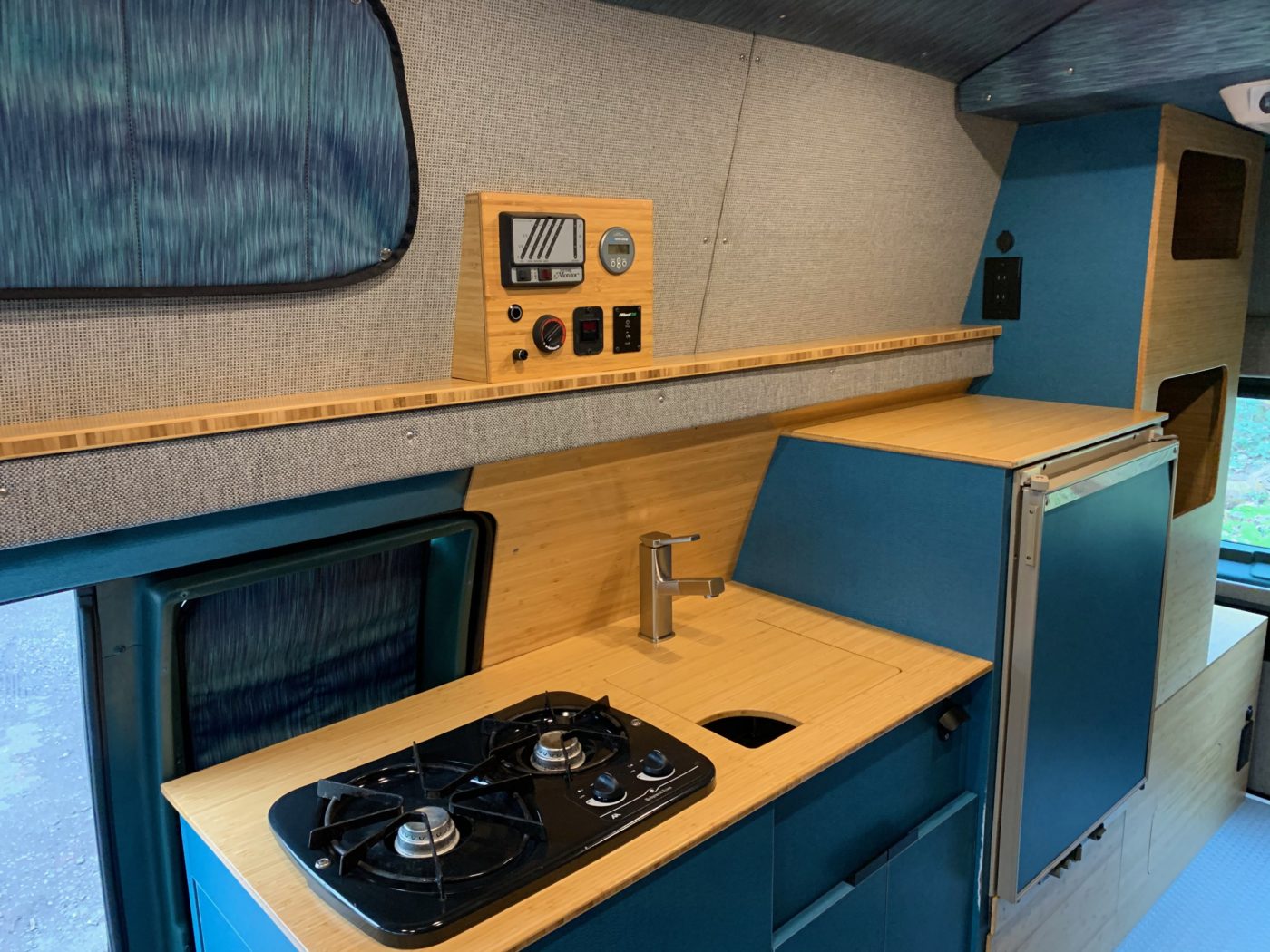

The original Coachmen interior was removed and rebuilt using high quality materials with a “pass-through” floor plan, new wall & ceiling panels, flooring, cabinetry, electrical, plumbing, and lighting. During reconstruction all windows were resealed, holes were plugged and resealed, and additional insulation was installed.

The upper bunk is original and better suited for soft good storage but could be a fun sleeping area for kids and measures 70″ x 55″. There is no supplied mattress for the upper bunk. The original sofa folds out into a bed measuring 75″ x 44″ which could use a reupholster. There is a space on the rear driver side intended for a cassette toilet of your choosing (black water system was removed).

Currently there is a 100ah AGM battery which charges via the alternator, solar panel, or by shore power. The original under mount propane tank powers the hot water heater, cook top, and refrigerator. The original 3way fridge runs on propane, 12v, and 120v. The rooftop Coleman A/C unit only works on shore power and works very well.

The body is in fairly good shape though it does feature some damage. The Coachmen fiberglass fender flares and side skirts are solid but do have some noticeable cracks and chips in the paint. The body shows some damage to the front driver fender, driver door, and has 3 small screw holes directly behind the drivers door (have been siliconed temporarily). The drivers door is not original and the green paint matching is a little off.

I’m happy to answer any questions you may have, but please CALL 484twofivesix8935 if interested. All texts and emails will be ignored. I also have a google drive link with more photos and videos if you are interested.

This van is located in ASHLAND, OR.

1995 Ford E250
60,000 miles
5.8 Windsor engine
VIN: 1FDHS24H1SHC02662
Clean OR title in my name

Electrical:
Renogy 20A MPPT solar charge controller
Xantrex 1000w Prowatt inverter
Alternator charging using the stock AUX battery solenoid
Magnetek DC charger/converter w/ upgraded internals and 12v fuse board
Renogy 100w solar panel
Victron BMV-602 battery monitor
Original systems monitor for fresh/gray/propane tank level sensors
Original 30a twist lock shore power plug

Heating/Plumbing:
Gasoline Webasto heater
Shurflo water pump
Original Atwood propane hot water heater
Original undermount propane tank
Propane detector wired in
Original fresh water tank – gravity fill only
Original gray water tank modified
Hepvo waterless drain valve
Updated sink and pull out faucet
Scandvik rear shower sprayer

Interior:
New ignition tumbler, door locks, and 2 keys
Original 3-way Dometic refrigerator
Ceiling lights on dimmer 3200k
Alpine headunit
Original passenger swivel seat
Original propane cooktop
Scirocco fan
3 reading lights
Flip up table at side barn doors

Flooring/Walls/Insulation:
Insulated window covers
½” closed cell foam insulation in the floor
Original spray foam / thinsulate insulation in the van body walls
½ closed cell foam / thinsulate in the walls and ceiling of the fiberglass
Lonseal coin grip flooring with ⅜” marine grade plywood subfloor
Ceiling and wall panels are upholstered with ⅛” closed cell foam
Sound deadening applied in various locations
Side and rear barn doors sound deadened and insulated with thinsulate

Suspension/Steering (all new):
American Racing 16×7 wheels
BF Goodrich KO2 245/75/16 tires
Bilstein struts – 33-187570 fronts & 33-176840 rears
Moog steering bars and tie rods
Moog control arm bushings
Moog upper and lower ball joints
Recent alignment

Engine (all new):
Starter battery
Fuel filter
Spark plugs and wires
Oil and oil filter
Serpentine belt, tensioner, and idler pulley

Exterior:
Rough Country 2” LED pods on the hood switched at dash
Truck Lite LED headlights
Coleman Mach 3 roof top A/C unit
New porch light
New lower refrigerator vent cover
Maxxfan 6200k
Updated front and rear bumpers sprayed with bed liner
Updated front grill and bumper
New insulated side compartment hatch door and frame
New seals on all Hehr sliding windows
Ceiling coated in a Ziollo silicone waterproofing / heat diffusing sealant
The fiberglass top screw strip was removed, cleaned, updated SS hardware, new black screw strip cover, foam seal and siliconed

Issues:
Some damage to front driver fender, driver door, and directly behind the driver door
2” dent near driver rear bumper
Some flaking paint along window edges
ABS light comes on sporadically
Airbag light is flashing a code
A/C system could use a recharge
Heater can be a little finicky
