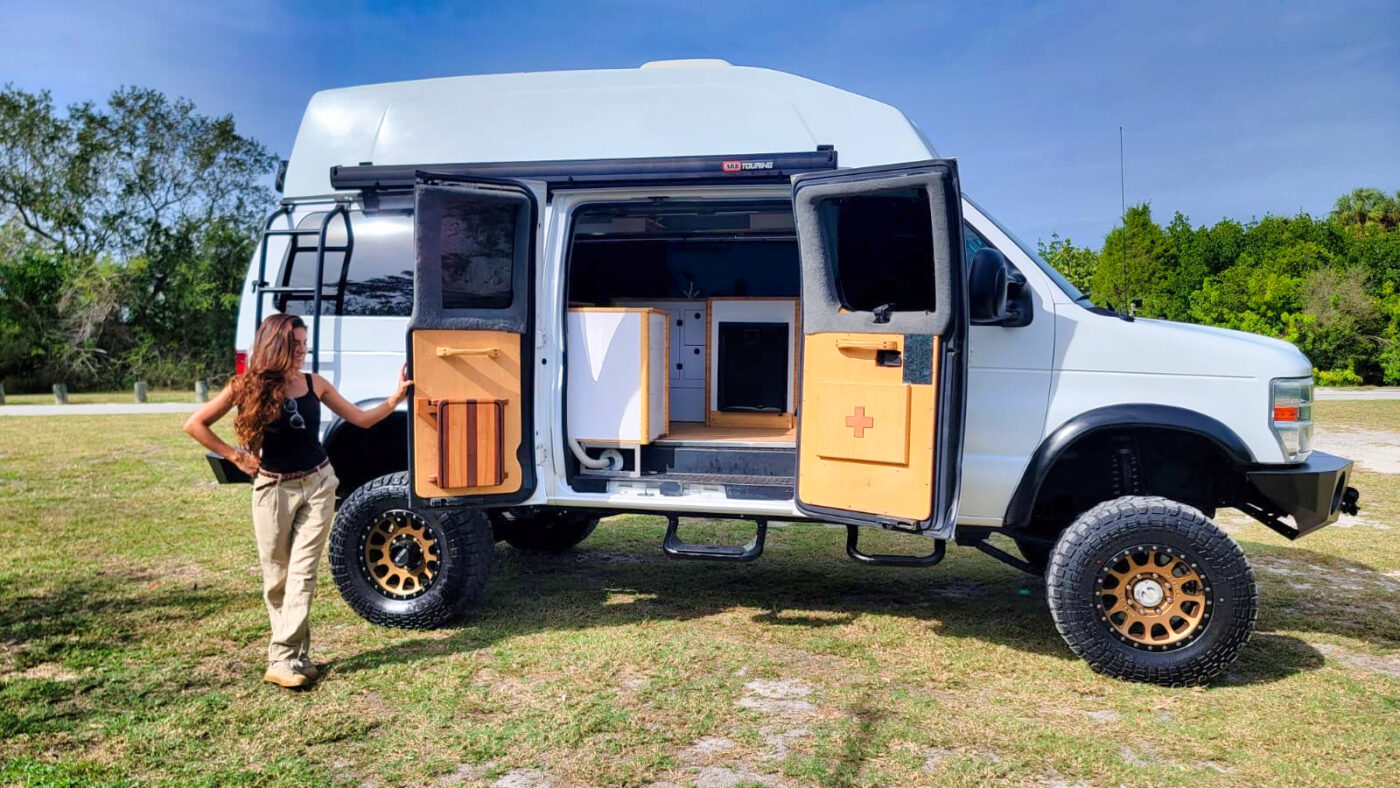

2008 Ford E-350 4×4 Expedition Campervan

This is a truly 4×4 OFF-GRID EXPEDITION CAMPER VAN with great power, cooking, and water storage capability. The shorter wheelbase allows you to go anywhere and make tight maneuvers. With a robust solar/lithium system, heating system, independent off-grid electric, indoor kitchen, and true off-road suspension this van is incredibly well-suited for any adventure you throw at it.

5.4L Triton engine with 88,000 miles and a new transmission as of January 2023 (2 years warranty left on transmission). Specifically designed for full time off grid living!

The Van:

-Ford E-350 Standard length
-5.4L Triton V8 – 88k miles
-Brand New Transmission January 2023 with 2 years warranty remaining
-2008 with a 2020 Passenger Van conversion
-Conversion done at a little over 65,000 miles
-Total loaded weight is 8200 Pounds
-Total length bumper to bumper is 18FT
-Total height is 10’ 2”
-Fuel economy around 14mpg at 60 MPH
-GCWR of 13,000lbs.
-Titled as a motorhome

The Drivetrain:

-3.73 Gear Differential (speedometer almost spot on)
-NV271 Heavy duty transfer case
-Dana 60 Front and rear Axle
-Suspension, Wheels, Tires:
-Timberline vans 6” coilover linked 4×4 kit
-Elka 12” travel bypass Stage 3 Coilovers – 500lb Eibach springs
-Bilstein 5100 Rear shocks with Timberline 12 pack rear leaf springs
-Van was originally converted to 4×4 in 2008 by Quad Van of Oregon and was upgraded to the Timberline –Coilover kit during the 2021 conversion
-Buschwacker Fender flares
-17in Method 305s in Bronze
-33in Kenda Kleaver R/T
-Custom Trac Bars
-Front Heavyduty swaybar with extended Links

The Camper:

-Custom R20 Morey Industries Fiberglass Hightop -Interior height – 6’ 2”
-3m Thinsulate and Closed cell Foam complete insulation of floor, walls, and ceiling
-Comfortable far below freezing temps and cools easily in Arizona heat.
-Complete cab and chassis vibration mat with Noico sound deadening
-Marine Vinyl insulated woven flooring
-Stainless steel Entry trim separating camper from driving cab
-Custom upholstered/insulated interior door and window trim
-All Custom lightweight Birch and Bamboo cabinetry
-Isotemp Cruise 49 black Marine 12v /120v fridge/freezer
-Thetford Triple Burner Propane Stainless Cooktop with glass top
-Thetford Sink Unit
-Under bed and inside dinette latching storage compartments.
-Rear outdoor Zero Declination Shower Stall with Stainless marine hardware
-Toilet stall with Natures Head Composting Toilet
-Dinette Seating with removable Bamboo table
-Modular aluminum and Birch bed platform. Bed Extends to a full (75×54)
-2 piece Temperpedic 3in memory foam mattress
-Custom made memory foam Dinette cushions and mattress wrapped in easy to clean marine vinyl
-Complete dimable LED lighting system with RGBW bed mood lighting flushed into aluminum trim accents on ceiling – with touchscreen controller
-Fresair 12v evaporative rooftop AC
-5 total Interior 120v GFI Dual outlets with USB charging
-12v USB charging stations
-Custom door panels with first aid storage / tables / and cutting board
-AudioEngine A2 Bluetooth sound system
-Pedestal rotating swivel passenger seat kit
-Surfboard/paddleboard rack aluminess

Armor and Recovery Gear:

-Traction boards
-Recovery Anchor
-Aluminess front winch bumper
-Aluminess rear bumper with hitch receiver and storage
-Smittybuilt 15k front winch
-Aluminess Side mount roof / solar access ladder
-CARR offroad entry Steps
-Complete underside refresh – included media blast and full rubberized corrosion resistive coating.


-Pair of Baja Designs S2 floods on Hood Mounts
-Hella flush-mount bumper Pencil Beam Halogens
-Interior overhead dimmable led
-Interior wrap around RGB full spectrum led with controller

Power System:

-Autarky Standard Solar Kit –
-300W Flush mount Rooftop Solar array
-Orion 30 Amp Alternator DC to DC charging while driving
-Victron 100/50 Bluetooth Charge controller
-Victron BMS with Shunt – Interior controller
-2000w Victron compact Inverter Charger with Cerbo controller and GX50 touchscreen
-Midnight Solar Baby box with charge controller and inverter breakers.
-200 Amp DC disconnect
-30 Amp 120v interior accessible breaker panel containing all circuits both AC and DC in one easy to access and maintain panel.
-300ah Ampertime Lithium Battery bank
-All mounted below rear dinette bench seats

Water, Heat, Cooling:

-35 Gallon Fresh water tank (interior mounted) – SS marine inlets and an additional 15 Gallon Auxillary fresh water tank (exterior mounted) total water capacity 55 gallons
-Rear storage cabinet with holder for (3) 5 gallon drinking water jugs (15 gallons total drinking water capacity)
-8 Gallon Grey water tank – exterior Dump outlet
-Shurflo 12v Water pump
-Full Pex Plumbing
-Rear mounted Stainless Shower system – hydronic connected for instant hot showers/ Extra long shower hose, shower head has on/off switch
-Rear mounted and enclosed 20lb Composite Propane tank – Only used for cooktops
-Main Gasoline tank connected Eberspacher Ds5 Hydronic system – Instant hot water heat exchanger and Kalori thermostatically controlled in cab water to air heat exchanger.
-Eberspacher easy start pro controller
-Rear bumper mounted all aluminum hydronic tank for easy service
-All plumbing and tanks are mounted within the insulated interior and will not freeze while camper is heated (exterior auxiliary tank is easily removed via straps)
-Fresair 12v DC Evaporative cooler with separate 8 gallon water tank.
-Custom Gold reflective heat shields for every window in the camper
