$75,000
Hayward
, California
IMG_3308-1
View 13 Photos
2019
$75,000

Hayward
, California
Diesel
11,500 Miles
Last Modified July 24, 2023

This 2019 Sprinter 4WD is turn-key and ready for camping on the beach or adventures in the mountains. The vehicle features a large kitchen area with a 3.2 Cu ft refrigerator, induction cooktop and sink, and ample storage.

The vehicle is filled with custom cabinetry and the countertops and table are made from reclaimed California redwood live edge slabs, bringing unmatched beauty and character to the interior.

The rear of the vehicle is configured with a large seating area where four people can eat comfortably, and the table space is purpose built for two people to “work from anywhere”. The table and seat cushions fold down to create a bed that is 67 inches wide (7 inches wider than a queen mattress!) with up to 78 inches of length to stretch out.

The electrical and water systems are built to give you all the comforts of home on the road. The house battery bank is 300 Amp-hours and can be charged by a 50A DC-to-DC charger from the vehicle’s alternator, a 400W solar array, or shore power (or all 3 at once!). The batteries feed a 3000W inverter that powers the 120V AC electrical system which includes the refrigerator, freezer, electric range, hot water heater, and 4x GFCI protected 120V outlets. The remainder of the systems in the vehicle run on the 12V power.

The water system consists of a 30-gallon freshwater tank, a 3 gallon-per minute marine grade water pump, and a build in faucet and sink combo for dishes. The vehicle also features a 4-gallon hot water heater.

The vehicle is also equipped with a private bathroom area with a Nature’s Head composting toilet. There is also a large storage closet, a dresser, and multiple storage compartments throughout the vehicle.

This vehicle is built to be a small “off the grid” apartment that can be taken anywhere.

Vehicle Information
• Make: Mercedes Benz
• Model: Sprinter
• Engine: V6 Turbodiesel
• Trim: 2500
• Drivetrain: 4WD
• Length: 170 Extended
• Mileage: 11,496

Maintenance Information
• All maintenance records are available.
• All previous maintenance work was conducted at Mercedes-Benz at Pleasanton.
• Vehicle received Service A and a fresh smog check this summer.

Key Dimensions
• Interior Height: 6.05 feet / 72.6 inches
• Bed Cushion Dimensions: 67 inches wide by 72inches long (can extend to 78 inches)

Kitchen:
• Refrigeration: EUHOMY Mini Fridge with Freezer, 3.2 Cu.Ft Mini refrigerator fridge, 2 door (120V)
• Trash: 30 Liter / 8 Gallon Under Counter Kitchen Cabinet Pull-Out Trash Can
• Faucet: Single-Handle Pull-Down Sprayer Kitchen Faucet with 2-Function Sprayhead
• Cabinet Sliding Shelves: Rev-A-Shelf 12 in. W x 18 in. D Base Cabinet Pull-Out 2-Tier Wire Basket
• Cooktop: VBGK Double Induction Cooktop, 2300W 110V Electric cooktop with LCD Touch Screen

Bathroom:
• Toilet: Nature’s Head Composting Toilet
• Shower Pan: Lippert Replacement Shower Pan with Right Drain

Bed/Living Space:
• Table Legs: RBC Components Removable Table Hardware Kit x 2
• Cushions: Custom commission via Etsy Merchant
• Cabinets: Doors and Drawers from CabinetDoorWorld

Electrical System
• Solar Power: 4x Renogy Monocrystalline 100W Solar Panels (400W output)
• Shore Power:
o RVGUARD 30 Amp 25 Foot RV Power Extension Cord
o RV Shore Power Inlet 30-amp 125V with LED
• Alternator/Battery Charger: Renogy DCC50S 12-Volt 50A DC-DC On-Board Battery Charger
• Inverter: Renogy 3000W Pure Sine Wave Inverter Charger 12V DC to 120V AC
• Monitoring:

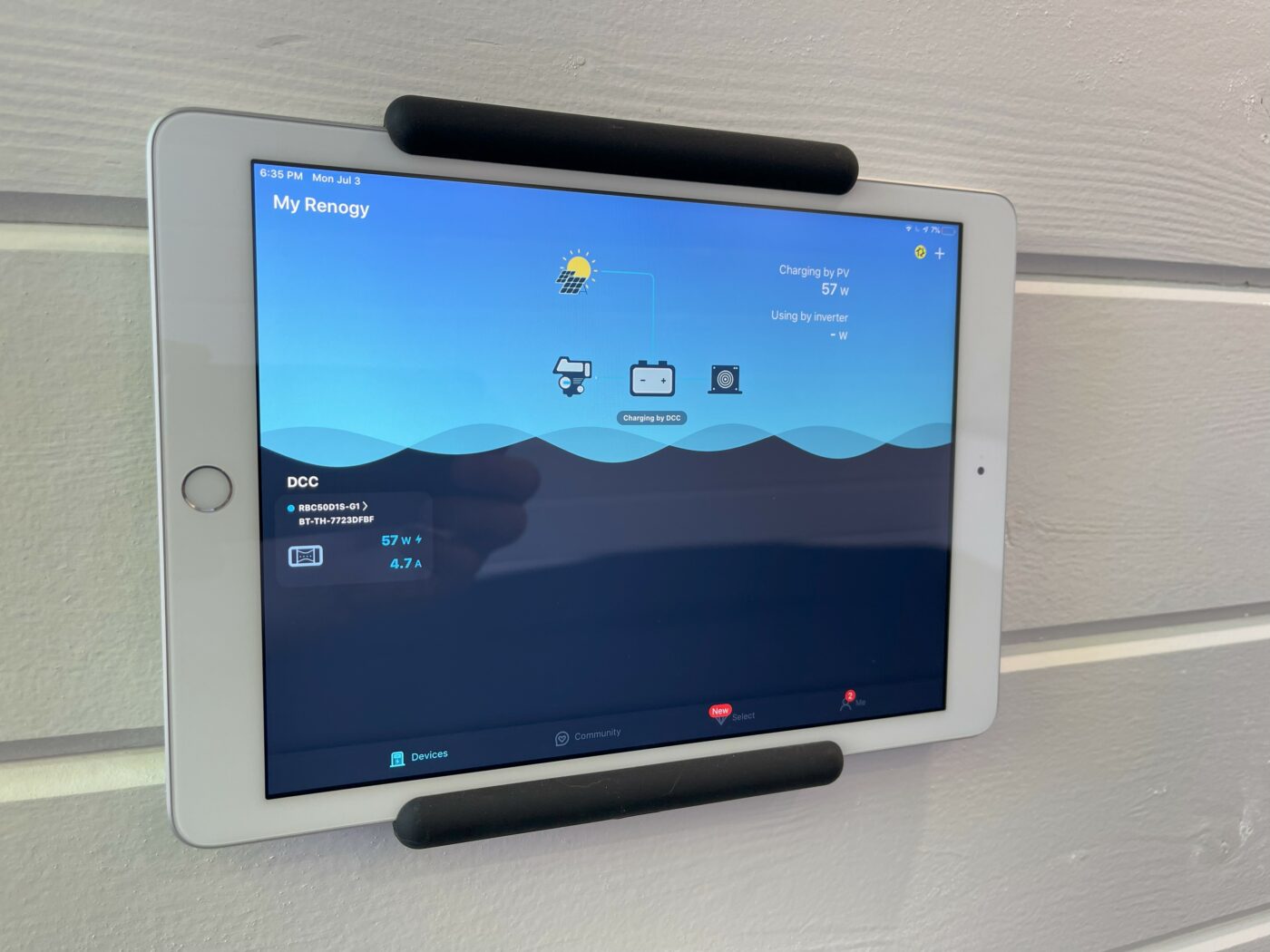

o Renogy BT-2 Bluetooth Module
o Victron Energy BMV-712 Smart Battery Monitor (Grey)
• Batteries: 3x 12V 100 Amp-Hour (300 Amp-hour total capacity)
• Fuses and Bus Bars: Blue Sea Systems Marine Grade 175A/250A
• Includes: 4x 120V GFCI-protected Outlet Pairs, 4x USB Device Chargers

Water System
• Storage: 30 gallon Class A Customs fresh water tank
• Water Heater: Bosch Electric Mini-Tank Water Heater Tronic 3000 T 4-Gallon (ES4)
• Pump:
o SHURFLO Aqua King II Automatic Fresh Water Pump, 3 GPM, 12V
o SHURflo 182-200 Pre-Pressurized Accumulator
• Inlet: Gravity Fill Hatch with Lockable Cap
• External Shower: Dura Faucet DF-SA186-BK RV Exterior Quick Connect Spray Faucet

Additional Accessories:
• Ventilation: Fan-Tastic Vent RV Roof Vent with Thermostat, Model 3350, White, Manual and Automatic Speed 12 Volt
• Indoor Heating: Mr. Heater F232000 MH9BX Buddy 4,000-9,000-BTU Indoor-Safe Portable Propane Radiant Heater
• Window Coverings: MERCEDES-BENZ SPRINTER WINDSHIELD SUNSHADE PRIVACY SET
