$110,000
Urbana
, Ohio
IMG_43241
View 19 Photos
2021
$110,000

Urbana
, Ohio
Gasoline
20,500 Miles
Last Modified May 24, 2024

5/3/23 Update: Price lowered to $110,000

4/9/24 update: Price lowered to $115,000.

3/23/24 update: Now also includes the Laveo DryFlush toilet, parking wedges, leveling pads and shore power cord.

Hand-built over about 18 months with the best materials available. I spared no expense to ensure the build is robust and long lasting. I also spent a great deal of time building to minimize irritating “rattles and vibrations” while driving. It’s very quiet going down the road. The van is well insulated for all-season use. The final electrical commissioning was performed by Off-Grid Power Systems. Everything in the van works as designed. There are a lot of builders out there so why would you buy this van? Because it’s built with “real” materials…not the cheap stuff the production builders use. Every plumbing connection and electrical crimp/connection was done by me so I know the quality. We’ve never had a single problem with anything. And, it’s a fraction of the cost of vans with similar components and technology. Email or call any time to discuss or request more information/pictures.

The Van:

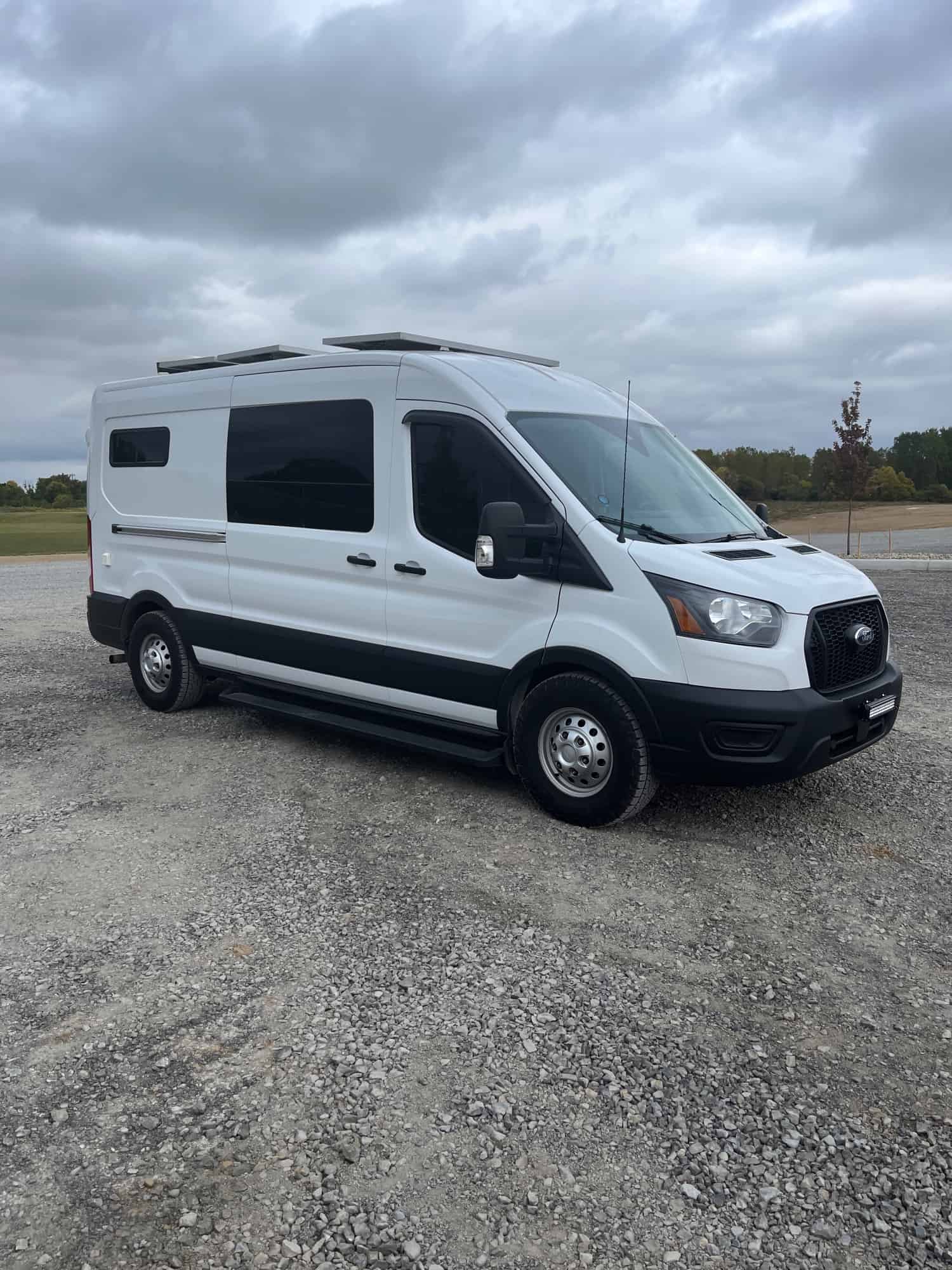

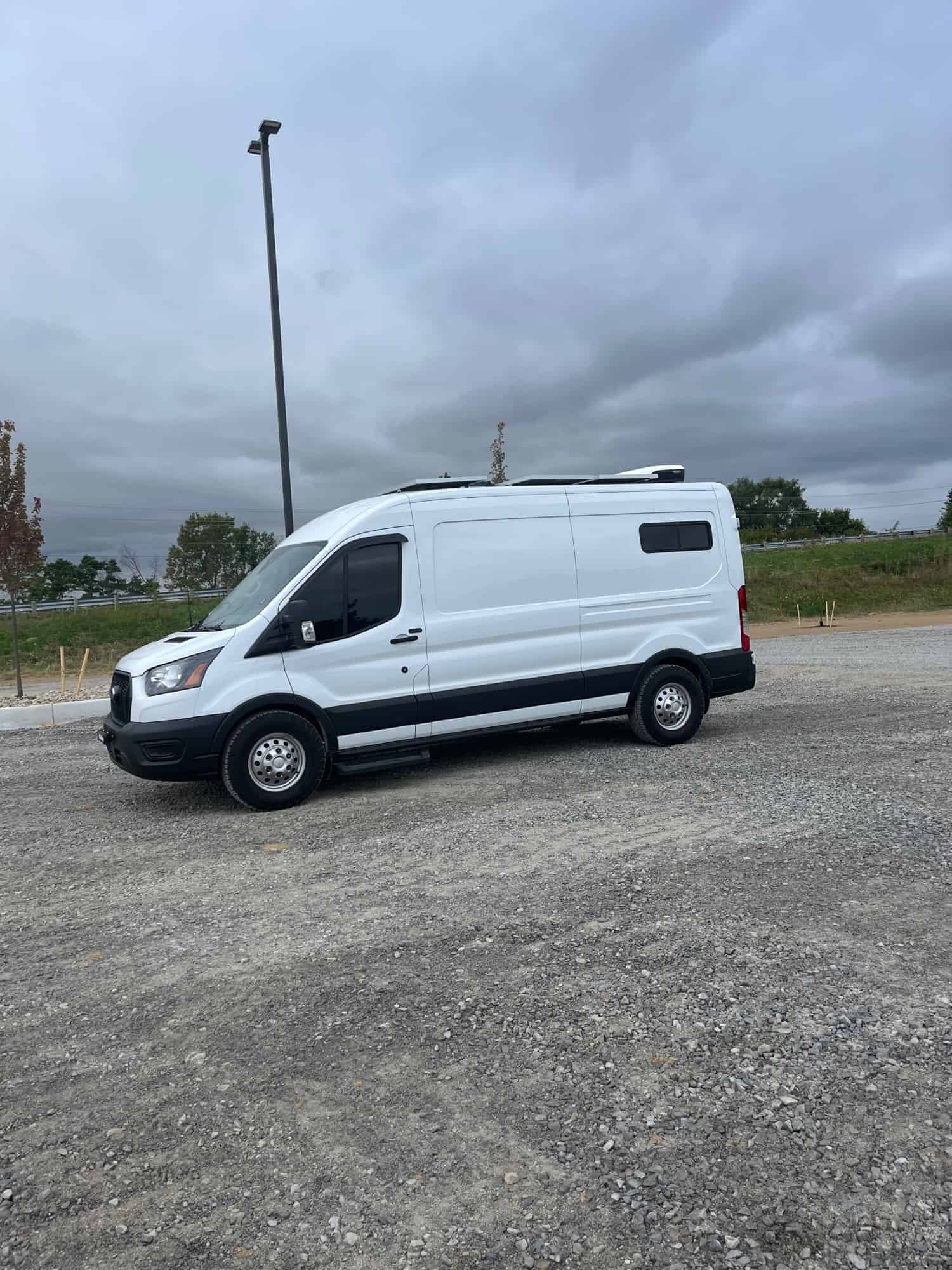

2021 Ford Transit
148” wheelbase
Mid-roof
3.5L Ecoboost V-6
10 speed automatic transmission
3.73 Limited slip rear axle
Rear-wheel drive
Oxford white with Palazzo Grey cloth seating
9,500 GVWR package
Heavy duty front axle
Rain sensing wipers
180-degree swing out rear doors
Air conditioning
Auto hi-low beam headlights
110v plug on the side of the passenger seat
Factory splash guards
Weather Tech all-weather front floor liners
Upgraded All-Terrain tires; Continental TerrainContact A/T, 10-ply tires 245/70-16
Factory trailer hitch with wiring
Heavy duty towing package including interior adjustment/controller
Window sticker is included with sale

Interior Construction:
Kilmat sound deadener installed throughout
Aluminum-faced, Reflectix floor insulation under 3/8” plywood
Plywood glued to van floor with polyurethane adhesive and screwed down
Screws through metal floor sealed from underneath to eliminate corrosion possibility
1.5” dual density foam, foil-faced, ceiling insulation
1” Foam wall insulation
Cedar ceiling (removable for service) stained with polyurethane, caulked between each strip
Luxury vinyl tile (waterproof) flooring
Wood, shiplap wall covering with 3 inset storage compartments
Foam-backed, waterproof rubber garage-area flooring
Fire/smoke and C02 detectors
Upholstered metal surfaces (except doors)
Fully insulated metal channels (van construction)

Shower:
36×24 shower pan with push-button drain
Palisade waterproof shower wall tiles
Moen shower head, fixed and handheld with massage, on/off button
3-compartment pump shower soap dispenser
Separate shower light with switch on ceiling
Stoett Nautilus retractable shower door
3-towel shower hook

Freshwater Plumbing:
21.3-gallon, baffled, freshwater tank. Silent, no sloshing.
Braided/reinforced PVC freshwater lines (FDA approved) with constant pressure clamps on all fittings
Bosch ES4, 110v hot water heater
3M under-sink water filter
Seaflow 55, 12v water pump with Seaflow pressure tank/accumulator. Pump on its own switch.
Freshwater inlet/fill, pressurized and non-pressurized with check valve
Rear, exterior hot/cold shower outlet
Cold-only sliding door water outlet
KUS water level sender with backlit analog gauge, on switch

Grey Water/Plumbing:
12.5 Gal grey water tanks under shower and galley sink. 8” diameter Schedule 40pvc with caps
12v Facon automatic heating pads under water tank and under both grey water tanks with switches
12v drain valves on each grey water tank with dump switches

Black Water:
There is no black water needed for this build
The van was designed to utilize the Laveo DryFlush toilet system

Galley:
Ruvati stainless steel galley sink
In-counter mounted pump soap dispenser
Swivel faucet with extendable outlet, stream and spray
In-wall storage cubbies for cooking needs
Bramblewood 2-Burner, built-in, LPG cooktop
Dometic CR50 12v refrigerator with ice compartment, on switch
1-1/2 thick butcher block counter tops, stained with polyurethane
Tilt-up butcher block counter extension

Installed/mounted/included accessories:
VanEssential window shades, every window and MaxxAir fan
Dometic RTX2000 12v air conditioner with remote
MaxxAir, MaxxFan Plus with remote, rain sensing
Bugwall Rear and Sliding door insect screens, magnetic
IBoards Aluminum Extruded running boards, black powder coat, extended passenger side
Van Windows Direct, rear cargo windows with integrated sliders and screens
CR Lawrence sliding-door window the tilt-out awning with screen
CR Lawrence sliding bunk windows with screens
Alpine Products passenger seat swivel
Exterior sun shade with mounting components

Bed/Table Modes:
Powered/switched linear actuated table; (lowered) for bed-mode and (raised) dining/gaming-mode
12v cabin fan, 2-speed, adjustable, over bed
Custom made mattress/cushions with soft, Sunbrella coverings

Electrical:
(3) Rich Solar, 200watt roof mounted solar panels with breaker
Victron Multiplus 3,000 watt inverter/charger
Victron Orion DC/DC converter/charger
Victron MPPT solar charge controller
Victron Smart Shunt
Victron GX Touch 50 control panel
(4) Battleborn, 100ah batteries
15/30-amp shore power/generator power plug, to inverter
(2) BlueSea electric disconnects
Battery compartment fan, thermostat controlled
Ceiling and under-cabinet mounted LED puck lights, on dimmer
LED toe kick light on its own switch
(2) LED reading lights with USB-A charge ports, separately switched
(4) 110v/USB-A outlets
“WFCO” electrical distribution panel, 12v and 110v
Front bumper-mounted LED flood light

Storage:
(5) overhead, side cabinets, fully insulated and carpeted with doors/handles
(4) drawers between refrigerator and shower
(1) fold-down storage compartment for tools, extinguisher, etc.
Large garage area for generator/equipment storage
RB Products Cab shelf above front seats, upholstered
Blackout curtain for nights between cab and living space

Not included with van: Negotiable if wanted
Tools
Generator
Loose equipment like kitchen ware, linens, fire extinguisher, etc.
Solo stove
Step
Ground pad

The build process was photographed from start to finish.
